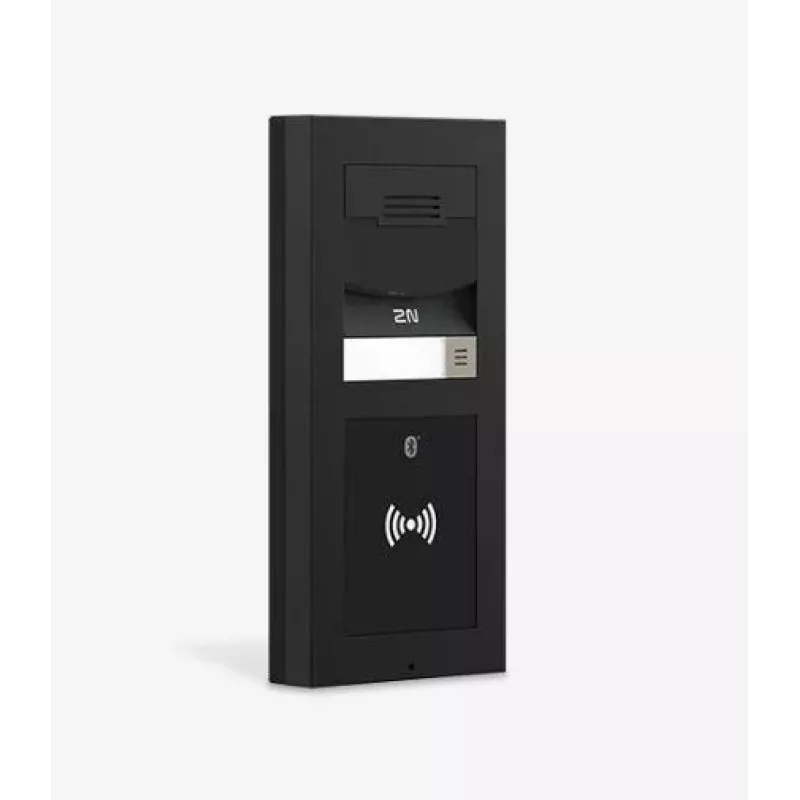

2N IP Verso unità base senza telecamera, nero 155101BD

In a modern apartment building or office complex, the 2N IP Verso base unit serves as the central communication hub for a modular access control system. This black, camera-less module is installed at the entrance, providing clear two-way audio and secure door control. It is the foundation upon which additional modules—such as a camera, display, or keypad—can be added via its three expansion slots, allowing the system to grow with your needs.

Key specifications

• Modular IP intercom base unit without camera
• Colour: Black
• Integrated microphone and 2W speaker for audio communication
• 10/100BASE-TX Ethernet connectivity
• Power over Ethernet (PoE) IEEE 802.3af or external 12V DC / 2A
• SIP protocol support for VoIP telephony integration
• IP54 weather resistance and IK08 vandal resistance
• Operating temperature range: -40°C to +60°C
• Two relay outputs (NO/NC, max 30V/1A) and one active switch output (8-12V DC / 400mA)
• Two inputs (passive/active) for external sensors or buttons
• Three expansion slots for additional 2N IP Verso modules
• Front panel made of anodized aluminum
• Web-based management interface
• Supports DHCP, NTP, HTTP, HTTPS, TFTP, SNMP, ONVIF

Why choose it

The 2N IP Verso base unit offers exceptional flexibility and durability. Its modular design lets you configure the intercom to match your exact requirements, whether you need a simple audio door station or a full video entry system. The robust construction withstands harsh weather and tampering, ensuring reliable operation for years. With PoE support, installation is simplified, reducing cabling costs and complexity.

Ideal use cases

• Apartment buildings and residential complexes
• Office buildings and corporate campuses
• Gated communities and controlled entrances
• Industrial facilities requiring rugged communication
• Any location needing a scalable IP intercom solution

Good to know

The base unit requires a separate mounting frame for flush or surface installation, which is not included. It is compatible with a wide range of 2N IP Verso modules, allowing future expansion. The unit can be managed remotely via a web browser, and firmware updates are available to enhance functionality and security.
