ABB attuatore riscaldamento HA-M-0.12.12 12 canali 230 V REG BJE

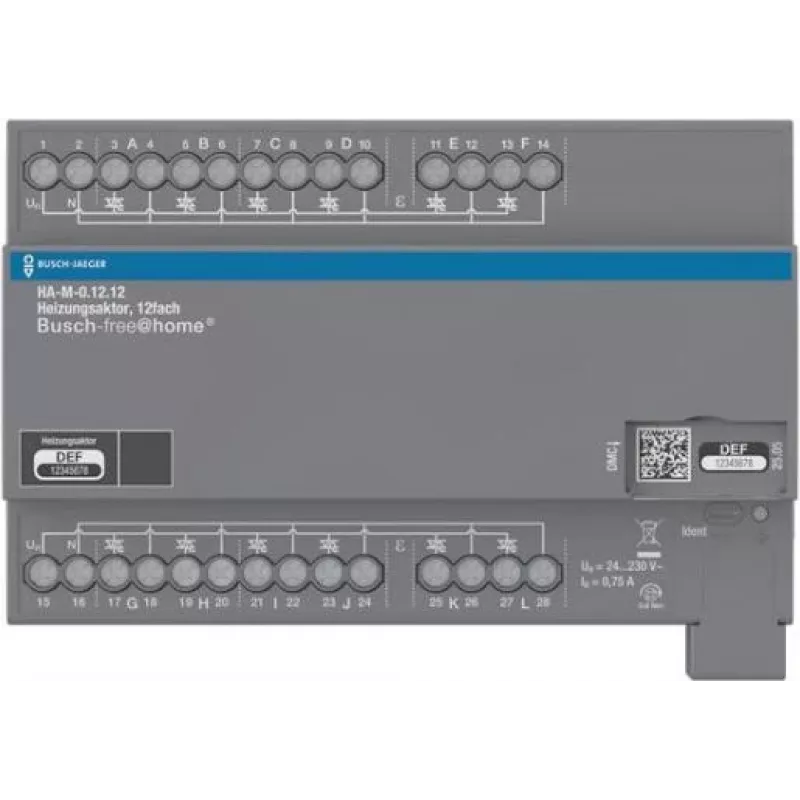

The ABB Heating Actuator HA-M-0.12.12 is a KNX bus-compatible, 12-channel heating actuator designed for controlling electrothermal valve drives in building automation systems. It features 12 independent outputs, each rated at 230 V AC and 0.12 A, with a total output current of 1.44 A. The actuator supports both 2-point (ON/OFF) and PWM control modes, making it versatile for various heating applications. It is mounted on a DIN rail (MDRC) with a width of 12 modules (216 mm) and offers manual operation and LED status indication per channel. The device includes short-circuit and overload protection per channel, ensuring reliable operation. Power for the logic is supplied via the KNX bus, while the outputs require mains power. The actuator is suitable for use in residential and commercial building management systems.

Advantages

Reliable 12-channel control for electrothermal valve drives; supports both ON/OFF and PWM control; manual operation and LED status per channel; short-circuit and overload protection; compact DIN rail design.

Suitable for

• Heating systems in KNX building automation
• Control of electrothermal valve drives
• Residential and commercial HVAC applications

Key specifications

• Number of Outputs: 12 channels
• Output Voltage: 230 V AC
• Output Current per Channel: 0.12 A
• Total Output Current: 1.44 A
• Control Type: 2-point (ON/OFF) or PWM
• Load Type: Electrothermal valve drives
• Bus System: KNX
• Mounting Type: DIN rail (MDRC)
• Module Width: 12 modules (216 mm)
• Protection Class: IP20
• Operating Temperature: 0 °C to +45 °C
• Storage Temperature: -25 °C to +70 °C
• Connections: Screw terminals for outputs, KNX bus terminal
• Manual Operation: Yes, per channel
• Status Indication: LED per channel
• Short-circuit Protection: Yes, per channel
• Overload Protection: Yes, per channel
• Auxiliary Power: Via KNX bus (for logic) and mains (for outputs)
• Power Consumption (Device): < 5 W (excluding load)

Recommendations

For optimal performance, use with ABB KNX bus components and compatible electrothermal valve drives. Ensure proper installation by a qualified electrician.
