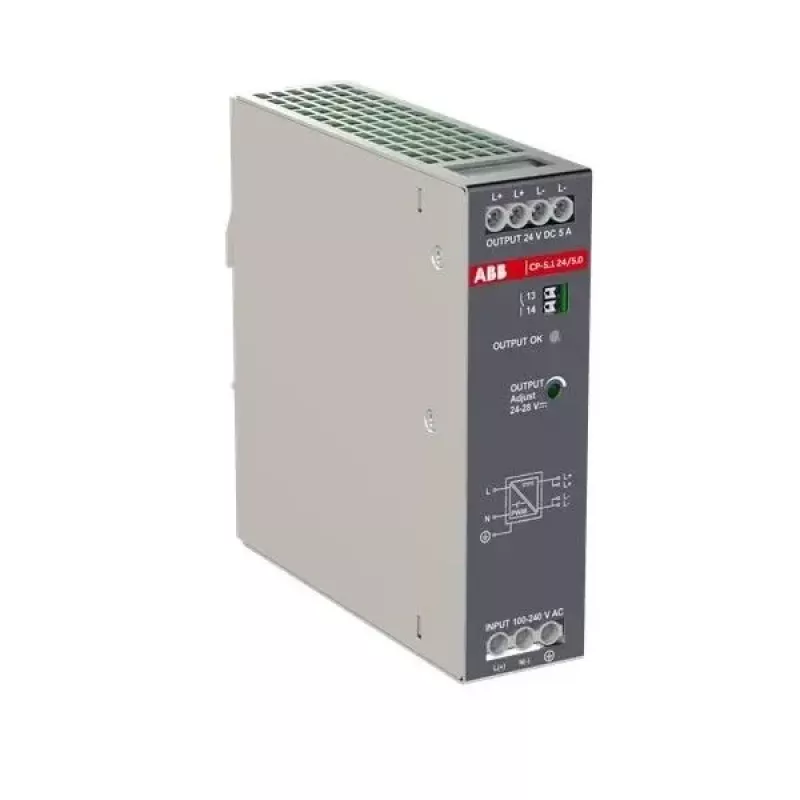

ABB CP-S.1 24/5.0 Alimentatore, 24V DC, 5A, 120W, guida DIN 1SVR320561R1000

Industrial control panels often need a reliable 24 V DC supply from the AC mains, and the ABB CP-S.1 24/5.0 delivers exactly that in a compact DIN-rail module. It converts a wide range of AC or DC input voltages into a regulated 24 V DC output with 5 A capacity, giving you 120 W of clean power for sensors, PLCs, relays and other automation loads.

Who is it for

Panel builders, machine OEMs and maintenance engineers who install or replace power supplies in industrial cabinets. It suits applications that require a stable 24 V DC rail with overload, short-circuit, overvoltage and overtemperature protection, all on a standard TS35 DIN rail.

Main features

• Output: 24 V DC, 5 A, 120 W total power
• Wide input range: 100–240 V AC or 120–375 V DC
• High efficiency: > 90%
• DIN rail mounting (TS35)
• Protection against overload, short circuit, overvoltage and overtemperature
• Output voltage adjustable from 24 to 28 V DC
• Low ripple and noise: < 50 mVpp
• Operating temperature: -25 to +70 °C

Specifications

• Input voltage: 100–240 V AC (1-phase) / 120–375 V DC
• Input frequency: 50/60 Hz
• Output voltage: 24 V DC (adjustable 24–28 V DC)
• Output current: 5 A
• Output power: 120 W
• Efficiency: > 90%
• Ripple and noise: < 50 mVpp
• Isolation voltage: 3 kV AC (input/output)
• MTBF: > 500,000 hours
• Number of outputs: 1
• Mounting: DIN rail TS35

Tips

When selecting a power supply, add at least 20% margin over your calculated load to handle inrush currents and future expansion. The adjustable output voltage lets you compensate for voltage drop on long cable runs.
