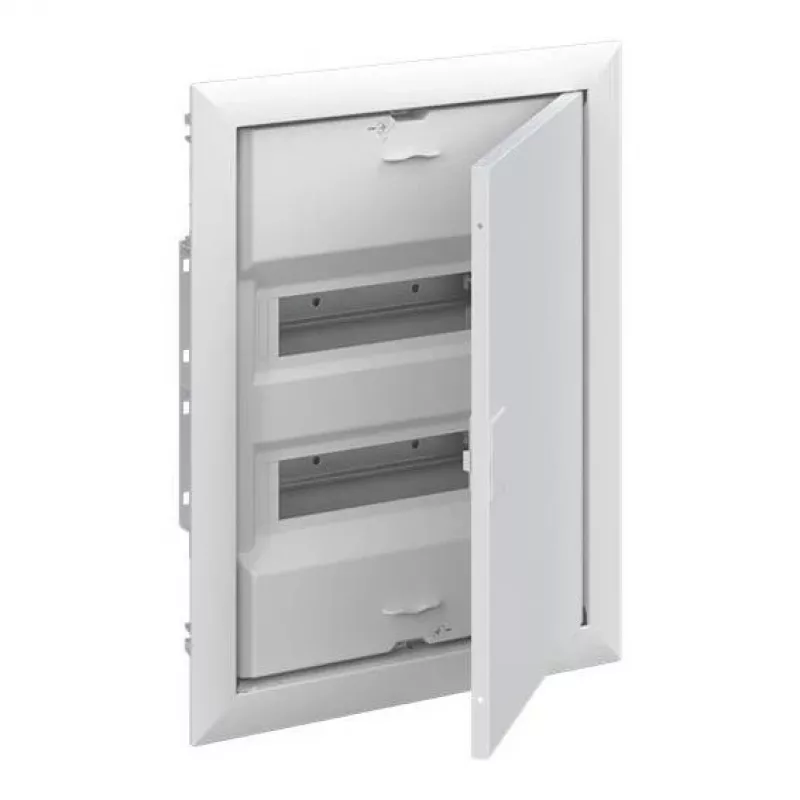

ABB QUADRO DI DISTRIBUZIONE DA INCASSO IP30 24 MODULI

The ABB BOARD DISTRIBUTION FLUSH IP30 24 MOD is a high-quality flush-mounted distribution board designed for residential and light commercial applications. It offers reliable protection and easy installation, meeting the stringent requirements of EN 61439-3.

Advantages

This distribution board features a robust galvanized sheet steel enclosure with IP30 and IK07 protection ratings, ensuring durability and safety. The reversible hinged steel door provides flexible installation options, while the pre-punched knockouts on top, bottom, and rear simplify cable entry. The board includes N and PE terminals, and is halogen-free with a glow wire test rating of 850°C.

Suitable for

• Residential electrical distribution
• Light commercial buildings
• Flush-mounted installations

Key specifications

• Mounting Type: Flush-mounted
• Number of Modules: 24
• Number of Rows: 2
• Protection Rating (IP): IP30
• Protection Rating (IK): IK07
• Enclosure Material: Galvanized sheet steel
• Door Material: Galvanized sheet steel
• Colour: White (RAL 9010)
• Rated Current (In): 63 A
• Rated Voltage (Un): 230/400 V AC
• Glow Wire Test: 850 °C
• Halogen-free: Yes
• Terminal Blocks: N and PE terminals included
• Installation Depth: 90 mm
• Overall Height: 505 mm
• Overall Width: 305 mm
• Standard: EN 61439-3
• Door Type: Hinged, reversible steel door
• Cable Entry: Pre-punched knockouts (top, bottom, rear)

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is ideal for new constructions or renovations requiring a flush-mounted solution.
