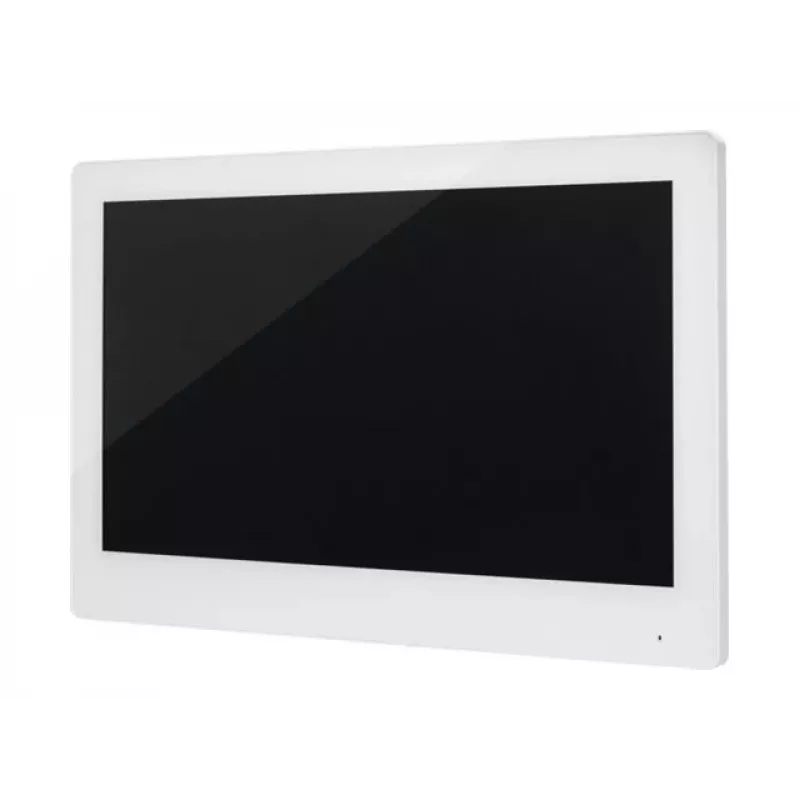

ABUS monitor touch PoE da 10" bianco, LAN/WiFi (TVHS20220)

Monitor your ABUS Smart Security World system with this 10.1-inch touchscreen control panel. In a modern home or small office, the ABUS TVHS20220 provides a dedicated, wall-mounted or desktop interface for arming and disarming alarms, viewing live camera feeds, and receiving smart notifications. Its white finish blends into clean interiors, while Power over Ethernet (PoE) simplifies installation by carrying both data and power over a single network cable.

Key specifications

• 10.1-inch IPS LCD touchscreen, 1280 x 800 resolution
• Capacitive multi-touch control
• Wired Ethernet (RJ45) and Wi-Fi 802.11 b/g/n (2.4 GHz)
• Power over Ethernet (PoE) IEEE 802.3af/at or 12V DC (adapter not included)
• Integrated speaker and microphone
• Android-based operating system for ABUS Smart Security World
• 8 GB eMMC storage, 1 GB DDR3 RAM
• VESA mount 75 x 75 mm, wall mount or optional desktop stand
• Operating temperature -10°C to +50°C, humidity 10% to 90% non-condensing

Why choose it

The TVHS20220 turns your smartphone-style security control into a fixed, always-on command center. PoE support means one cable for power and network, avoiding extra adapters. The capacitive touchscreen responds quickly, and the built-in speaker and microphone allow two-way audio communication with compatible ABUS cameras or door stations. Its Android core is tailored for the ABUS Smart Security World, ensuring smooth integration with your existing ABUS devices.

Ideal use cases

• Central control panel in entrance areas or living rooms
• Wall-mounted security hub in offices or retail spaces
• Desktop monitoring station with optional stand
• Two-way audio intercom with ABUS door cameras

Good to know

The monitor requires an ABUS Smart Security World system to function. It supports both wired and wireless network connections, but PoE is recommended for reliability. A 12V DC input is available if PoE is not used, though the power adapter is not included. The VESA 75 x 75 mm pattern allows flexible mounting options.
