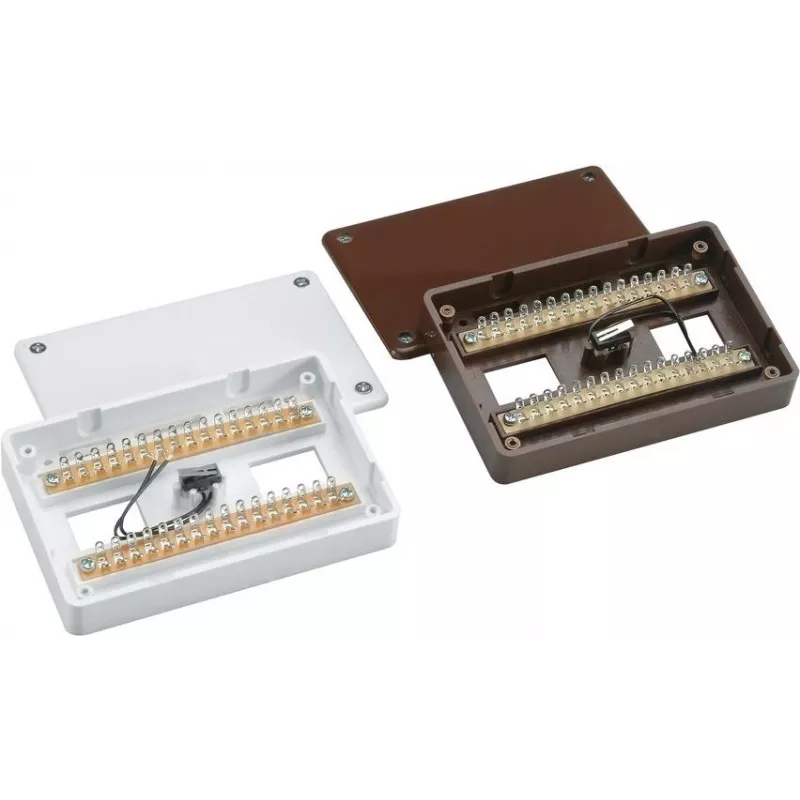

ABUS Security-Center VT4100B Morsettiera - 32 porte - Marrone

The ABUS Security-Center VT4100B is a high-quality terminal block designed for professional security and alarm systems. With 32 ports in a compact brown housing, it provides reliable and organized cable management for low-voltage installations. This terminal block is ideal for use in security centers, access control systems, and other low-voltage applications.

Advantages

Robust screw terminals ensure secure connections for solid and stranded wires. The surface-mount design with screw fixing allows for easy installation on walls or panels. The nickel-plated brass terminals offer excellent conductivity and corrosion resistance.

Suitable for

• Security systems and alarm technology
• Low-voltage installations up to 48V DC
• Building automation and control systems
• Professional wiring in control cabinets

Key specifications

• Number of terminals: 32
• Color: Brown
• Connection type: Screw terminals
• Mounting type: Surface mount (screw fixing)
• Housing material: Plastic (ABS)
• Terminal material: Nickel-plated brass
• Max. wire cross-section: 1.5 mm² (AWG 16)
• Voltage rating: Up to 48V DC
• Current rating: Up to 6A per terminal
• Number of rows: 2
• Operating temperature: -10°C to +50°C
• Protection class: IP20

Recommendations

For optimal performance, use with stranded or solid copper wires within the specified cross-section. Ensure proper tightening of screw terminals to maintain reliable connections.
