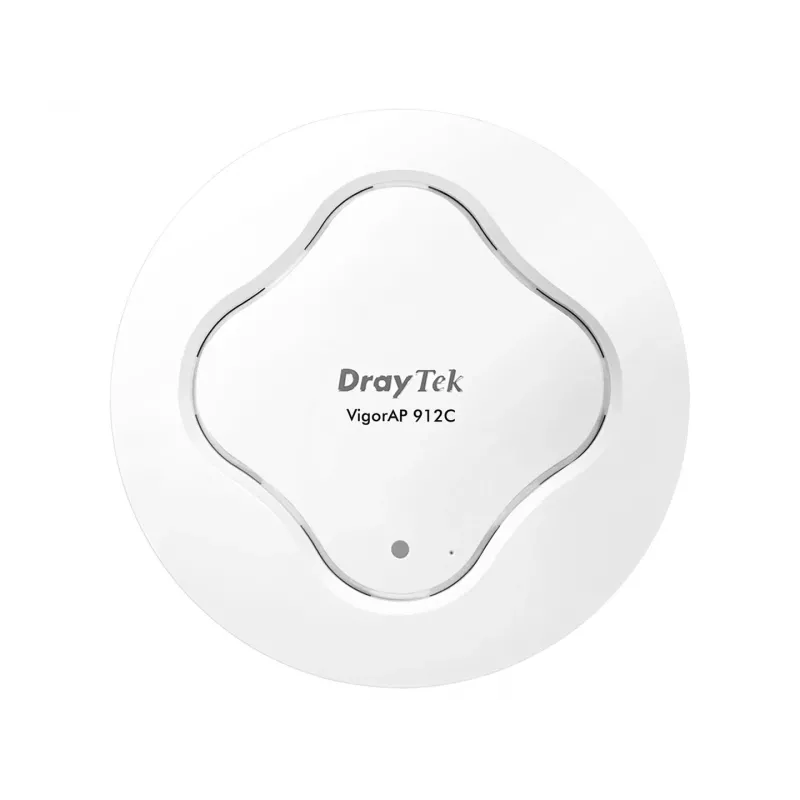

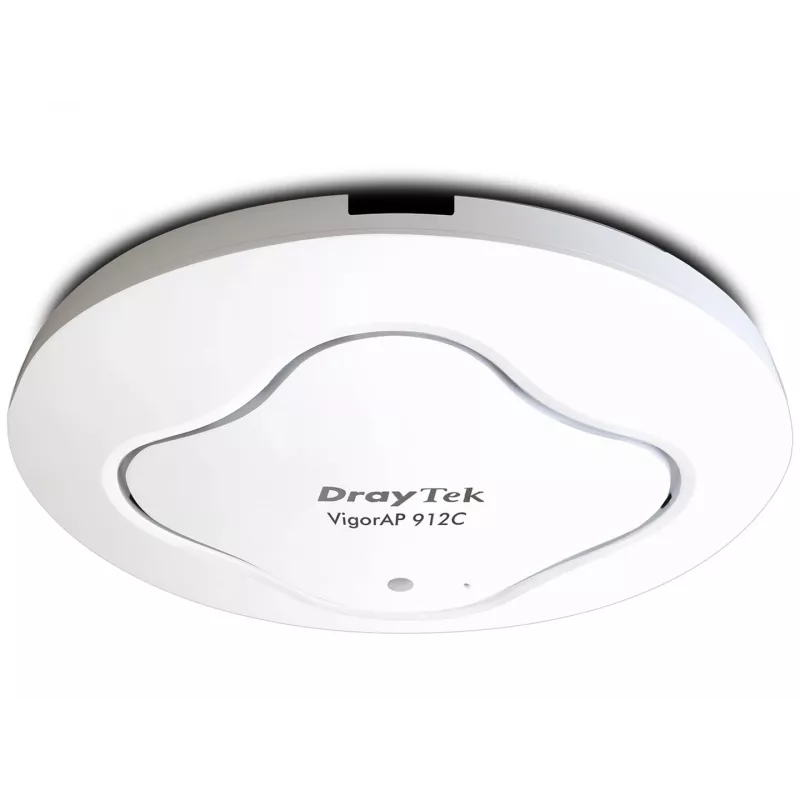

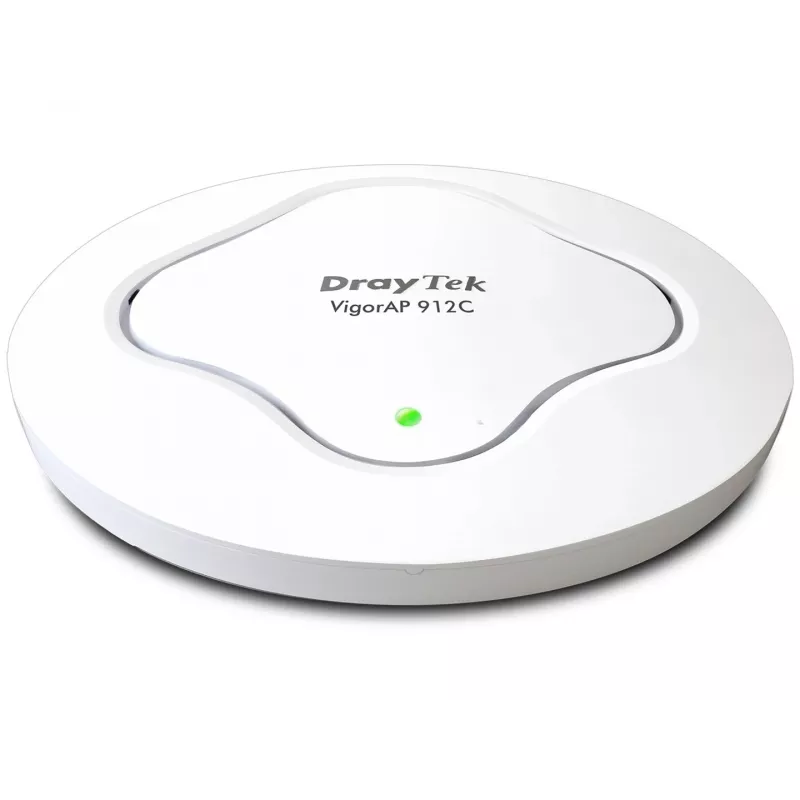

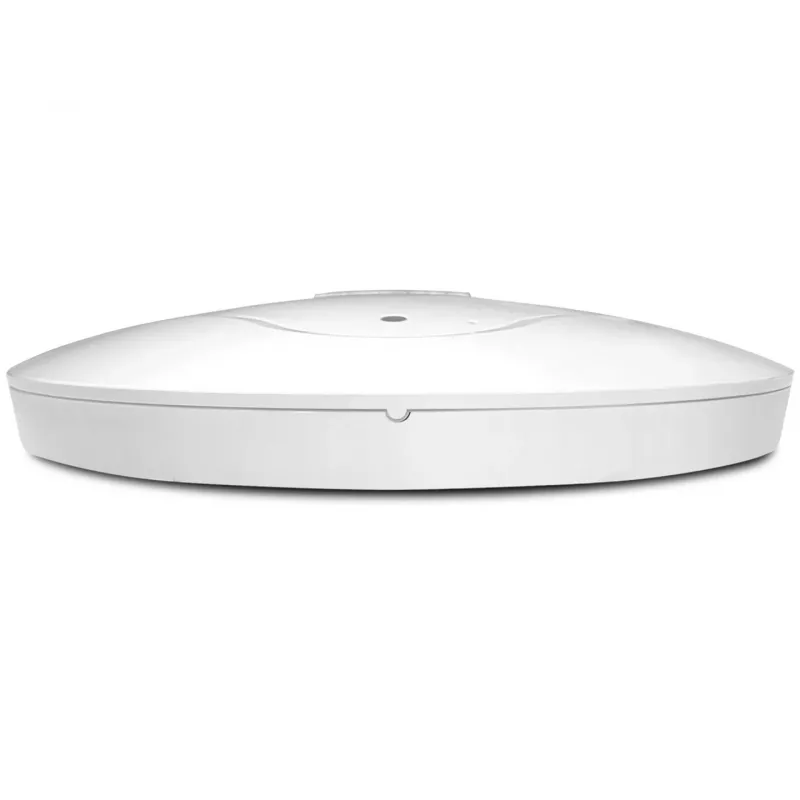

Access Point Draytek VIGOR AP 912C 1200 Mbit/s Dualband Wi-Fi 802.11ac

The DrayTek VIGOR AP 912C is a dual-band 802.11ac Wave 2 access point delivering up to 1200 Mbit/s combined throughput (866 Mbps on 5 GHz + 300 Mbps on 2.4 GHz). Designed for ceiling or wall installation, it supports Gigabit Ethernet, IEEE 802.3af PoE and can be managed locally via the web interface, centrally through a DrayTek router or cloud with VigorACS. The AP supports Mesh networking to link up to 8 VigorAP units, multi-SSID with VLAN tagging and enterprise-grade authentication options.

Advantages

The VIGOR AP 912C provides Mesh Wireless for up to 8 DrayTek VigorAP nodes with automatic link configuration and self-optimisation, simplifying deployment over large areas. It offers easy configuration via the DrayTek Wireless app and supports central management with DrayTek VigorACS or a compatible DrayTek router. Hardware features include Gigabit PoE power, ceiling and wall mounting options, and Wave 2 MU-MIMO for improved multi-client performance. Security and network segregation are supported with WPA2, 802.1x/RADIUS authentication and 802.1q VLAN tagging.

Suitable for

• Small offices and branch locations requiring centralised AP management
• Schools, hospitals and public venues needing multi-SSID and VLAN segregation
• Homes and businesses that require ceiling-mounted coverage with PoE installation
• Locations that need wireless extension or mesh coverage across multiple rooms

Key specifications

• Wireless standards: 802.11a/b/g/n/ac (dual-band, 2.4/5 GHz)
• Maximum data rate: up to 1200 Mbit/s (866 Mbps @5 GHz + 300 Mbps @2.4 GHz)
• MU-MIMO: 802.11ac Wave 2 support

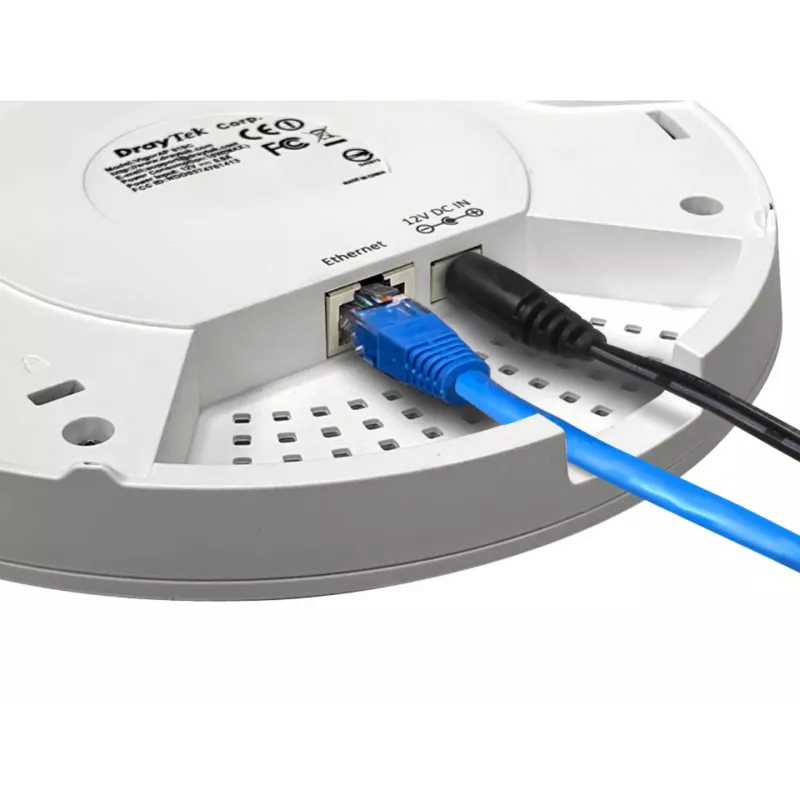

• Ethernet: 1 × Gigabit RJ-45 port with IEEE 802.3af PoE
• VLAN & security: 802.1q VLAN, WPA2, 802.1x/RADIUS support
• Management: DrayTek Wireless app, Web UI, VigorACS cloud, central AP management via DrayTek router
• Mesh: Up to 8 VigorAPs, self-organising and self-healing
• Physical: white colour, dimensions approx. 162 × 42 mm, weight ~0.771 kg

How to use

Install the VIGOR AP 912C on a ceiling or wall using the included mounting plate or T-bar clips for suspended ceilings and connect it to the network via a Gigabit Ethernet cable. Power the unit using an IEEE 802.3af PoE-enabled switch or injector, or alternatively with a compatible AC/DC adapter. Configure the AP with the DrayTek Wireless app by scanning the QR code or entering the default SSID and password, or use the Web UI. For centralised deployments, adopt APs into VigorACS or a DrayTek router's AP management to apply profiles and monitor status. To form a Mesh, designate a Mesh Root and add up to 7 Mesh Nodes; SSIDs and VLAN tags set on the Mesh Root propagate to Mesh Nodes.

Recommendations

Place ceiling-mounted APs centrally in the coverage area and use PoE where mains power is not available. For best mesh performance, provide wired Ethernet backhaul for at least some nodes when possible, enable Band Steering and Airtime Fairness, and use VLAN-tagged SSIDs to isolate guest networks from internal resources.
