Access Point HUAWEI eKit AP661 2,4 GHz 5 GHz Wi-Fi 6

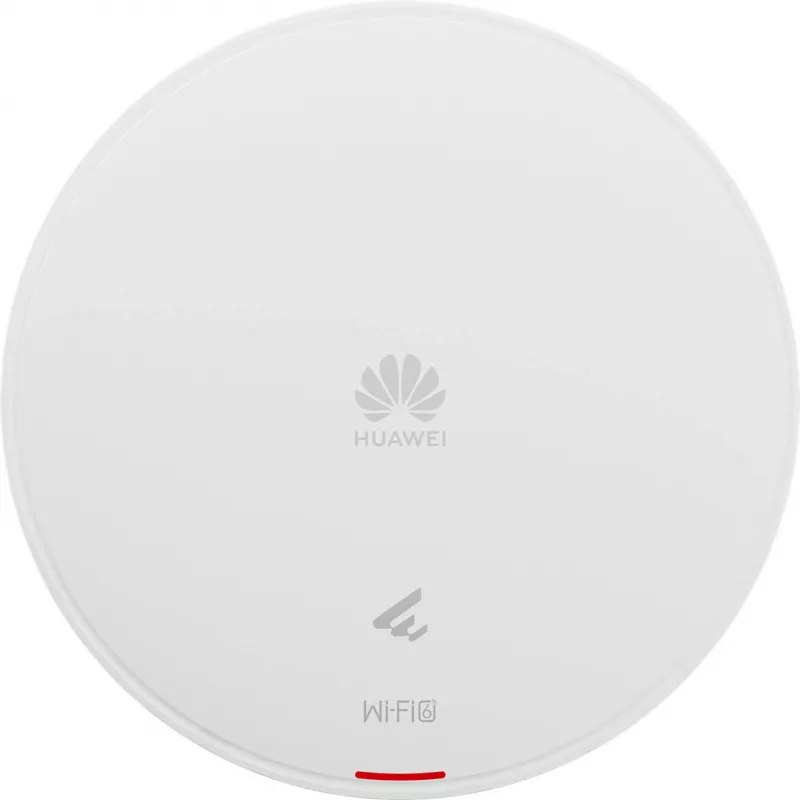

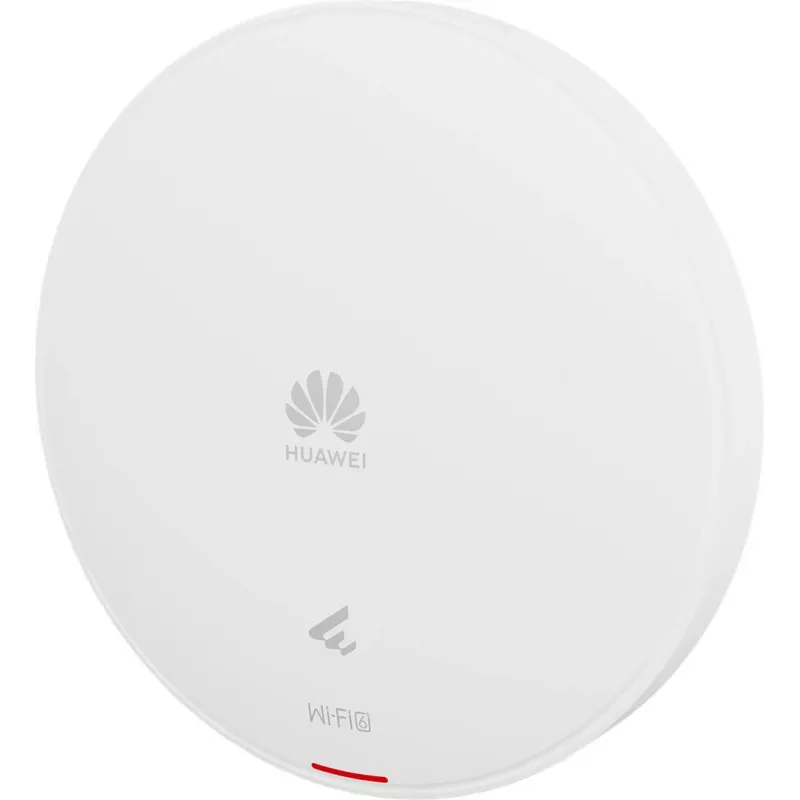

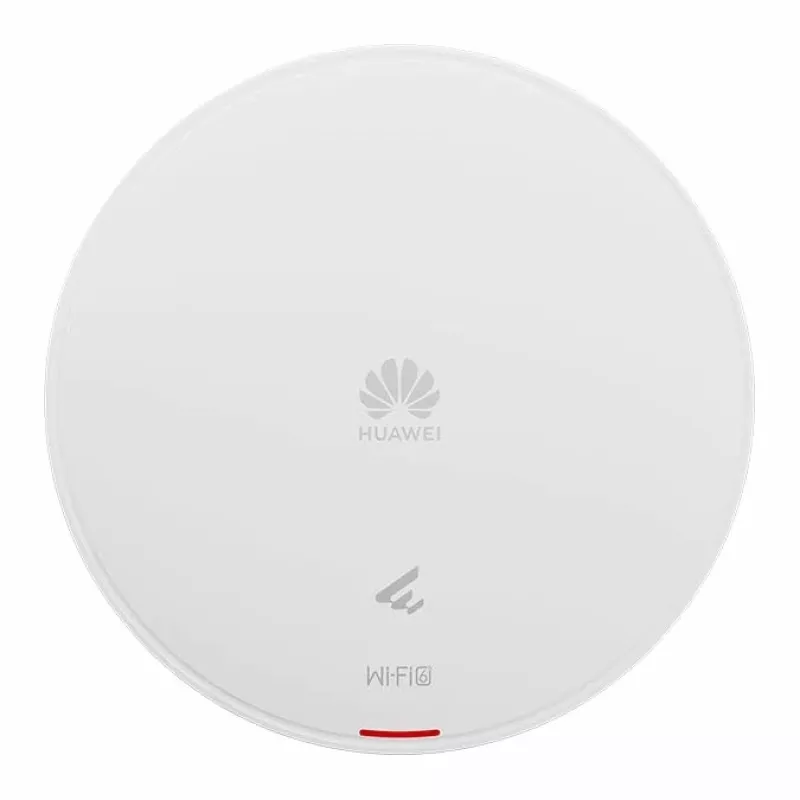

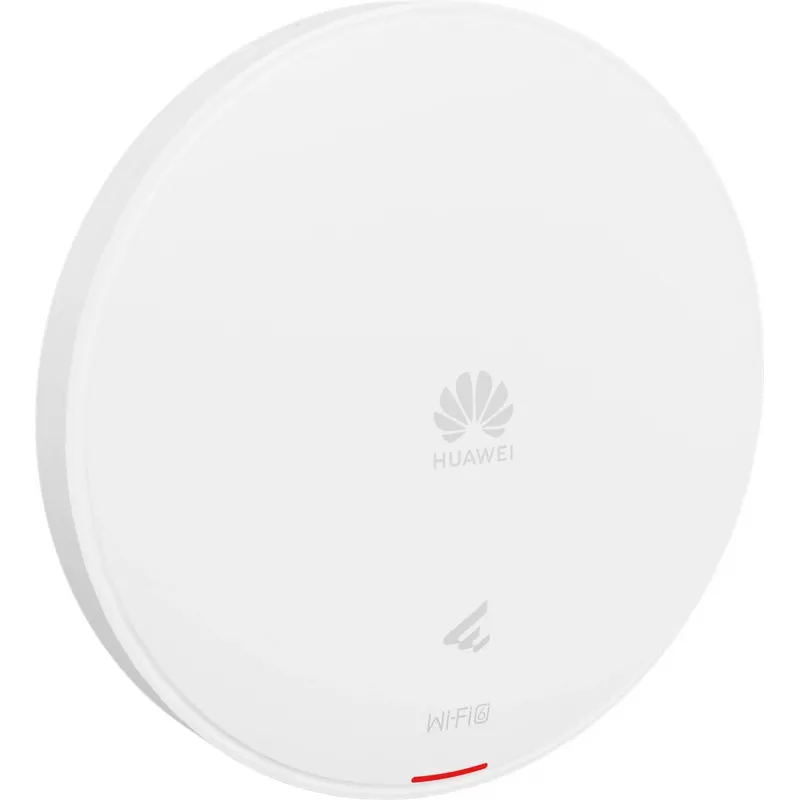

The HUAWEI eKitEngine AP661 is an indoor access point that supports Wi‑Fi 6 (IEEE 802.11ax) and delivers combined multi‑band throughput up to 6.575 Gbps. It operates simultaneously on 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and a second 5 GHz (4x4 MIMO) radio, and includes built‑in smart antennas to maintain stable wireless coverage for high‑density environments. The device supports modern security protocols and offers Power over Ethernet (PoE) and multi‑gigabit Ethernet ports for flexible deployment.

Advantages

The AP661 provides high aggregated device bandwidth (up to 6575 Mbit/s) across multiple radios, reducing congestion in dense user scenarios. Built‑in smart antennas improve signal consistency and user experience. Dual Ethernet LAN ports including multi‑gigabit capability and PoE support simplify installation and backhaul connectivity. Compliance with Wi‑Fi 6 and backward compatibility with earlier 802.11 standards ensures broad client support.

Suitable for

• Mobile offices and corporate workspaces
• Educational facilities and lecture halls
• Stadiums, arenas and other high‑density public venues
• Retail spaces and conference rooms

Key specifications

• Wireless standard: IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
• Maximum data transfer rate: 6575 Mbit/s
• Radio configuration: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO) and 5 GHz (4x4 MIMO)

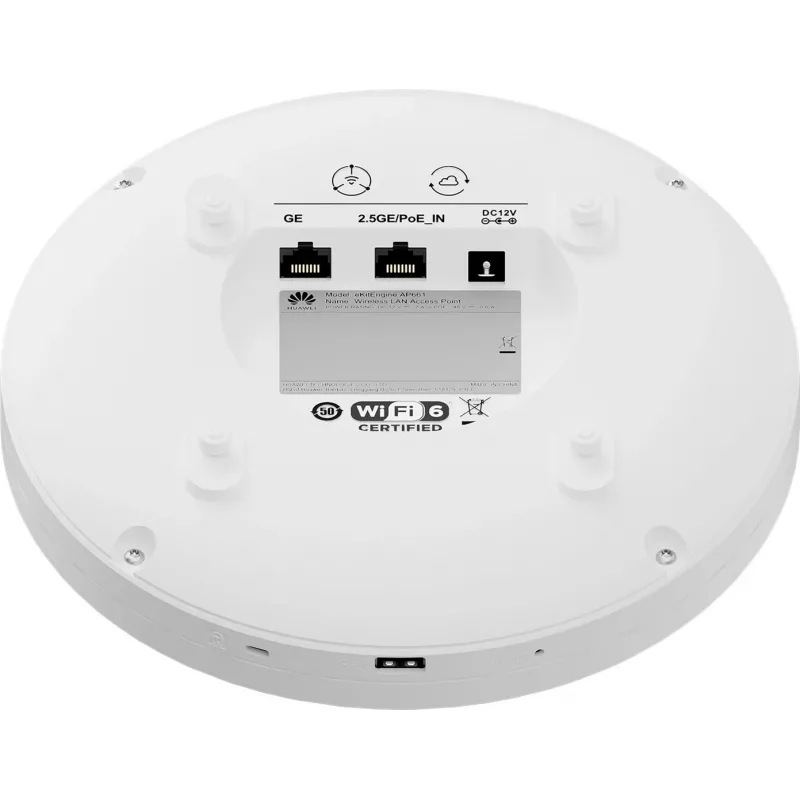

• Ethernet LAN (RJ‑45) ports: 2 (including multi‑gigabit support)
• Product colour: White
• Weight: 1.08 kg
• MPN / EAN: 02355VFC / 6901443451272

How to use

Mount the AP661 in an indoor location with good line of sight to client devices and connect it to network power via a compatible PoE switch or injector. Attach the Ethernet cable to the RJ‑45 port and complete initial configuration using the vendor management interface or central controller according to site network policies. Configure SSIDs, security (for example WPA3), VLANs and QoS settings as required for the deployment.

Recommendations

Place the access point centrally in coverage areas and avoid large metal obstacles. For high‑density deployments, plan channel and power settings, and use controller‑based management to optimise roaming, load balancing and interference mitigation.
