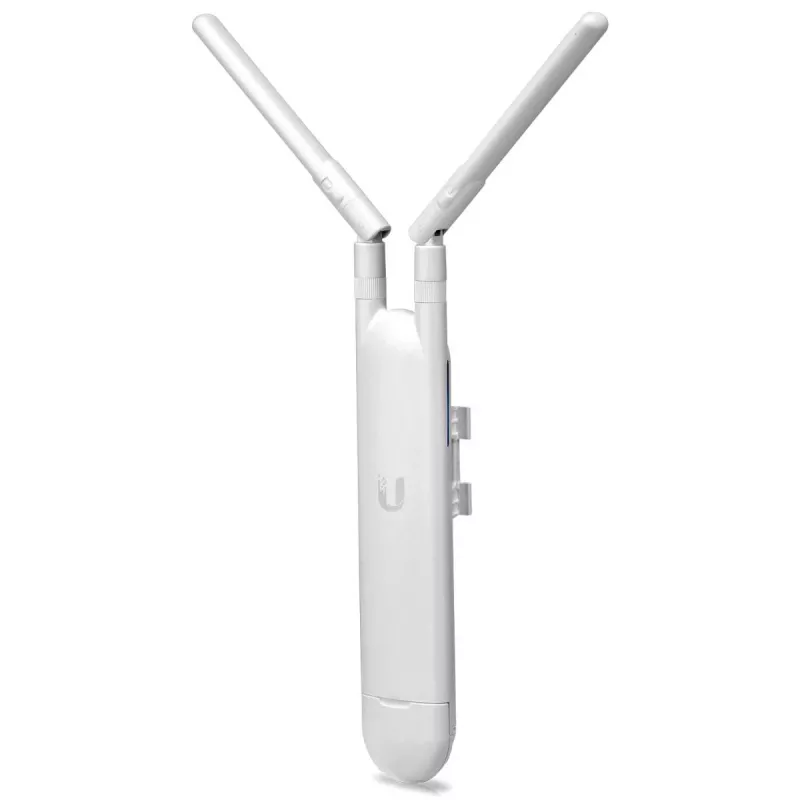

Access point UBIQUITI Unifi AC Mesh UAP‑AC‑M — dual band 2,4/5 GHz, 1167 Mbit/s, PoE, esterno/interno, bianco

The Ubiquiti Unifi AC Mesh is a dual‑band wireless access point that operates on 2.4 GHz and 5 GHz bands and supports combined maximum data throughput up to 1167 Mbit/s. Designed for flexible deployment, the unit can be powered via Power over Ethernet (PoE) and is suitable for both indoor and outdoor installations. The device has a compact white enclosure and includes two integrated antennas and one Gigabit Ethernet port for network connectivity.

Advantages

The access point provides dual‑band 802.11ac Wi‑Fi for improved capacity and reduced interference, with PoE support simplifying installation and cabling. Its compact form and weather‑resistant design allow placement in varied locations while maintaining a discreet appearance. Integrated antennas and a single Ethernet uplink make setup straightforward for managed networks.

Suitable for

• Small to medium indoor wireless networks
• Outdoor coverage for patios, courtyards, or small campuses
• PoE installations where centralized power and simplified cabling are preferred

Key specifications

• Wireless standards: IEEE 802.11ac (dual‑band, 2.4 GHz and 5 GHz)
• Maximum data transfer rate: 1167 Mbit/s
• Antennas: 2 integrated antennas
• Ethernet: 1 RJ‑45 port (Gigabit)
• Power: Power over Ethernet (PoE) support
• Dimensions: 353 x 46 x 34.4 mm
• Weight: 0.152 kg
• Color: White

How to use

Mount the access point in the desired indoor or outdoor location following the manufacturer's mounting guidelines, connect the device to the network using a Cat5e or higher Ethernet cable, and provide power via a compatible PoE injector or PoE switch. Adopt the Ubiquiti UniFi controller software to provision, configure wireless SSIDs, security settings, and mesh options, then monitor performance and client connections through the controller interface.

Recommendations

Place the access point to minimize physical obstructions and avoid sources of RF interference; use the UniFi controller for firmware updates and to optimize channel settings for dual‑band operation.
