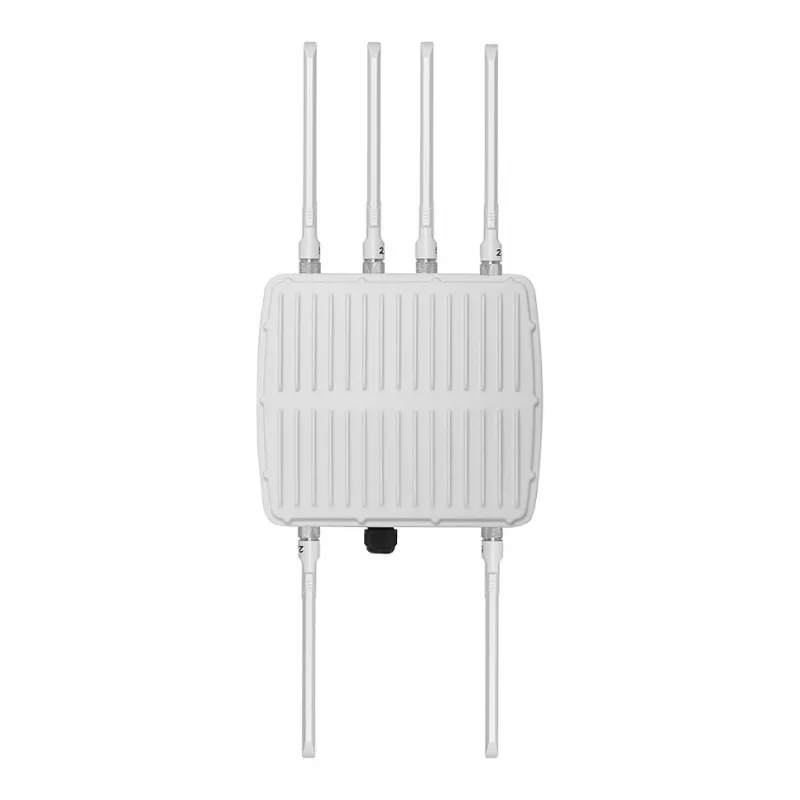

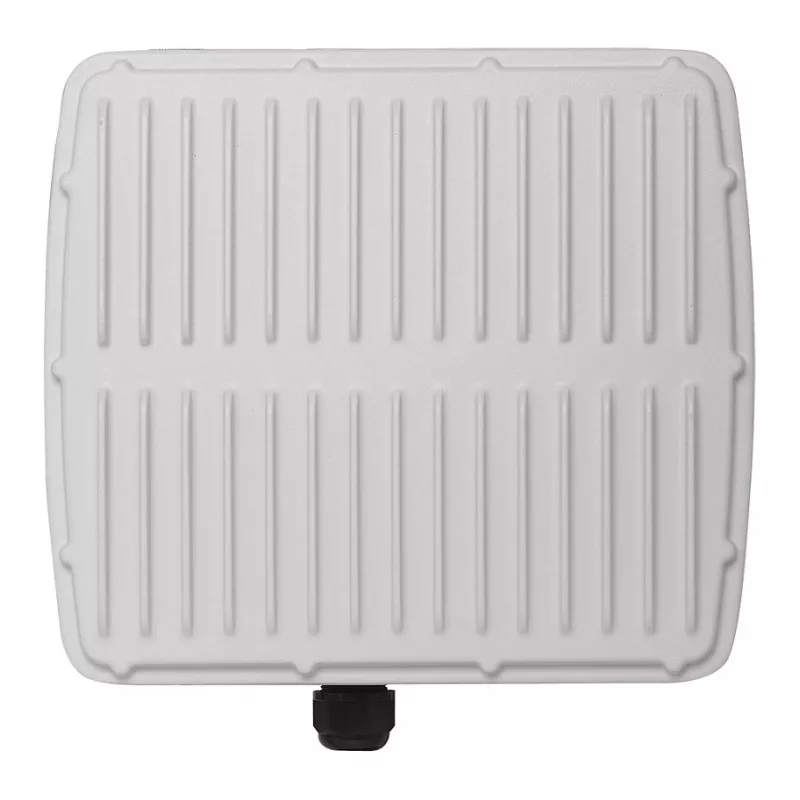

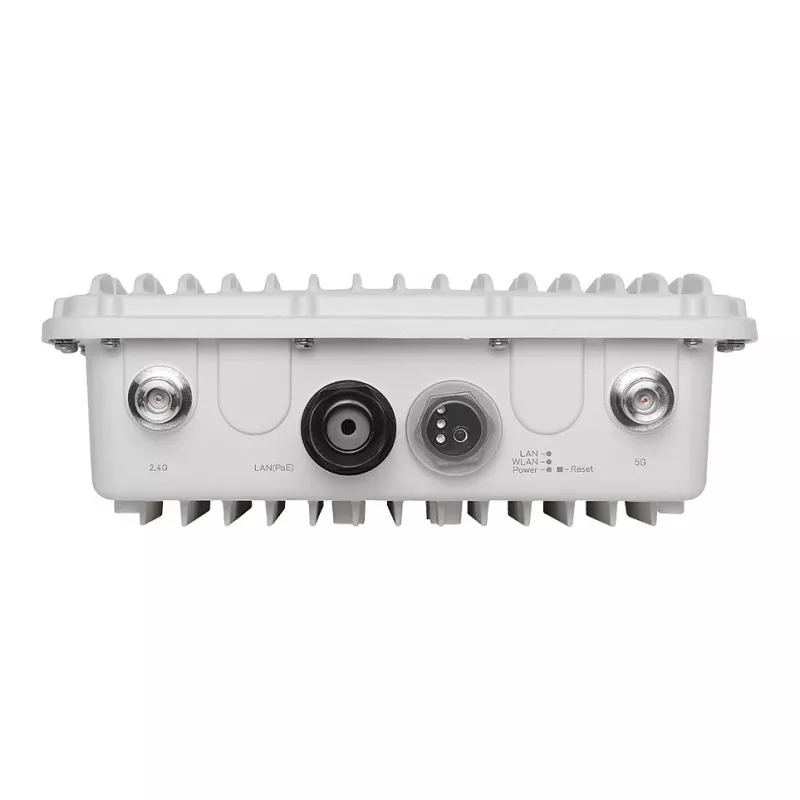

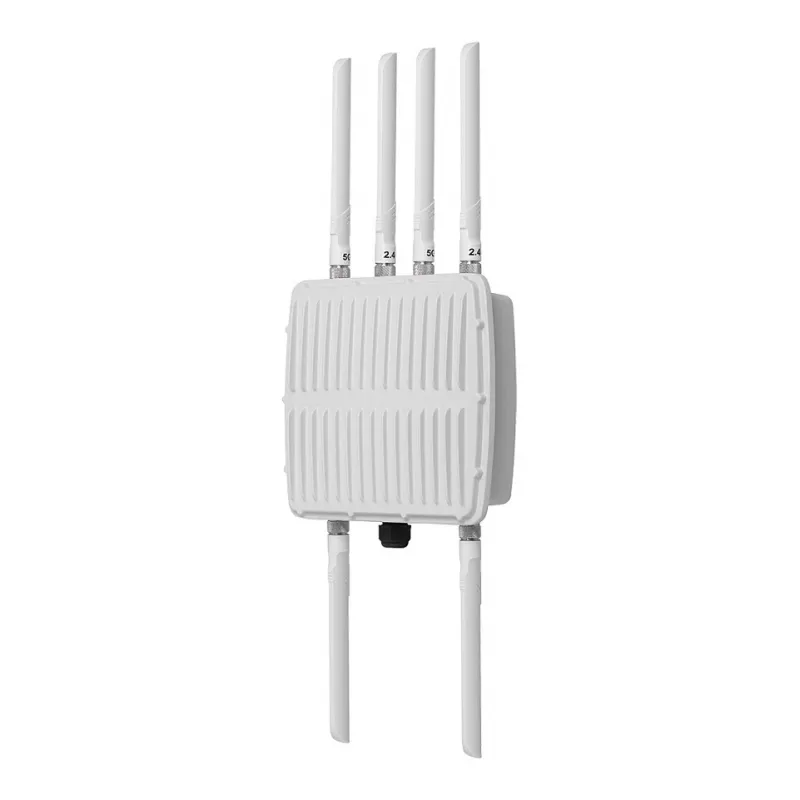

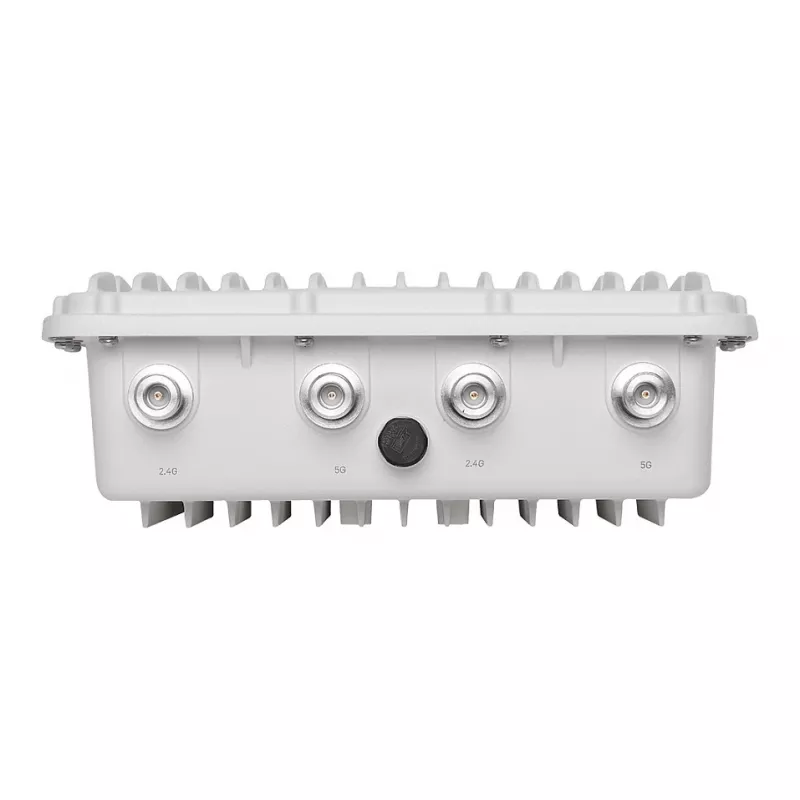

Access point wireless Edimax OAP1750, 1750 Mbit/s, 2,4 GHz, 5 GHz

The Edimax OAP1750 is an outdoor-rated dual-band wireless access point delivering combined wireless speeds up to 1750 Mbps (450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz). Housed in an IP67 metal casing that resists weather and rust, this model is designed for business environments that require reliable, high-capacity Wi‑Fi, long lifespan components and flexible deployment options such as wall or pole mounting and Power over Ethernet (PoE).

Advantages

The OAP1750 offers IEEE 802.11ac 3x3 dual-band performance, high receiver sensitivity and adjustable RF output for wide coverage, and support for up to 32 SSIDs with independent security. It supports high-density deployments with capacity for up to 100 simultaneous clients, includes rogue AP detection and L2 wireless isolation for improved security, and features solid capacitors for increased stability and longevity. Central management is available via Edimax Pro NMS or an APC500 controller, simplifying configuration and monitoring across multiple APs.

Suitable for

• Outdoor campus and stadium Wi‑Fi coverage
• Hotel grounds, outdoor malls and large public areas
• Office exteriors, retail floors and industrial sites
• Hospitals, schools and multi‑building sites requiring centralized management

Key specifications

• Maximum data transfer rate: 1750 Mbit/s (450 Mbps @ 2.4 GHz + 1300 Mbps @ 5 GHz)
• Wireless standards: IEEE 802.11ac / 802.11n
• Antennas: 5
• Ingress protection: IP67 outdoor‑rated metal housing
• Client capacity: up to 100 simultaneous clients (high‑density)
• SSIDs: up to 32 separate SSIDs with independent security
• Management: Edimax Pro NMS or APC500 Controller; web‑based interface
• Power: Power over Ethernet (PoE) support
• Color: White

How to use

Mount the OAP1750 on a wall or pole in a location that provides broad line‑of‑sight coverage for the target area. Connect the device to your network switch using an Ethernet cable; PoE can be used to supply power and network via a single cable. Access the web‑based management interface or Edimax Pro NMS to configure SSIDs, security (including RADIUS if required), VLANs and AP array settings. Use the dashboard, map view or graphical zone plans to place and manage multiple APs and apply firmware updates and monitoring from a central location.

Recommendations

For best results, position the OAP1750 to minimise physical obstructions and interference from other 2.4 GHz devices, allocate bandwidth-sensitive services (voice/video) to the 5 GHz band when possible, and use central NMS management to group APs, apply unified security policies and monitor client load to maintain stable performance.
