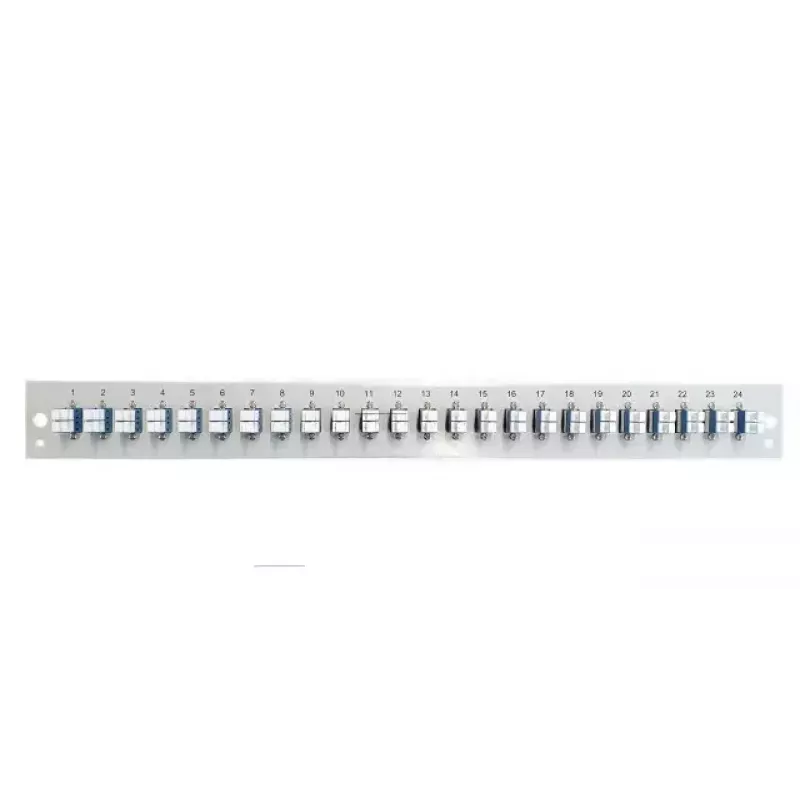

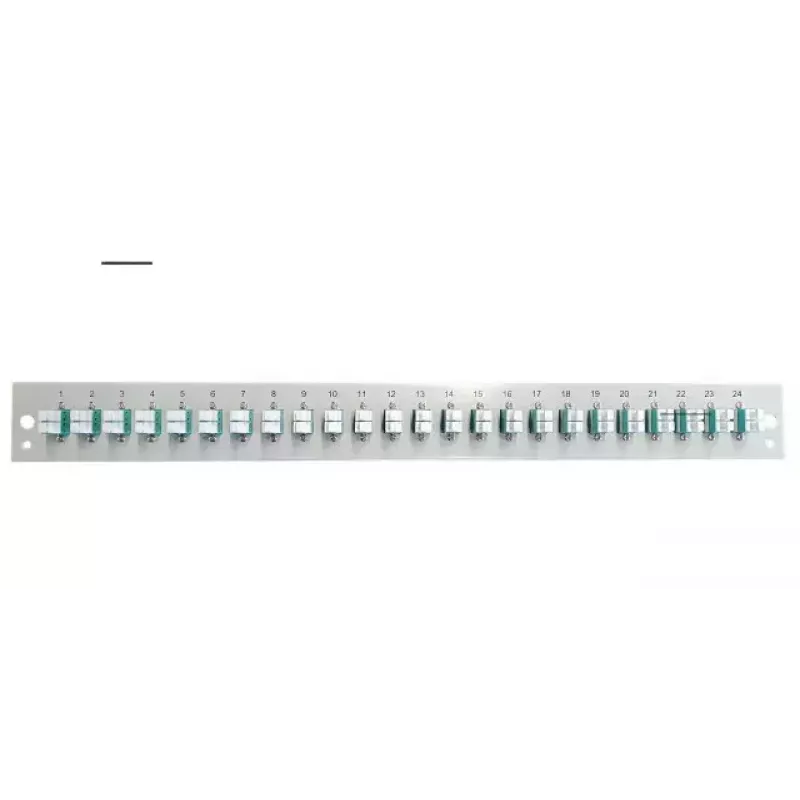

Accessorio patch panel EFB Elektronik SB-FP-24SC-S-OM4 — montaggio rack 1U, 432×13×43,5 mm, grigio

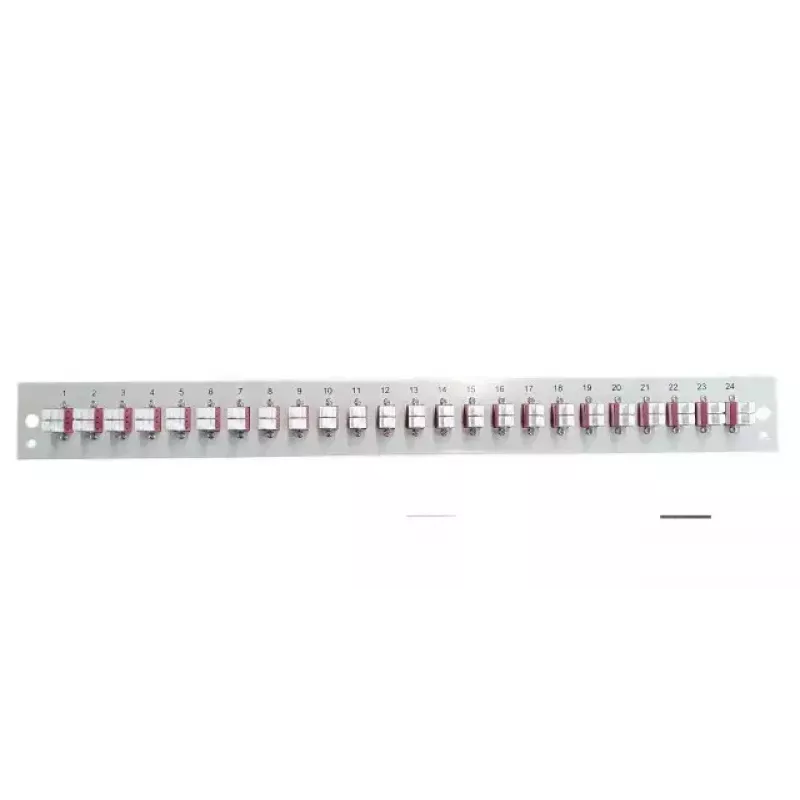

EFB Elektronik SB-FP-24SC-S-OM4 is a 1U front panel accessory designed for 19" splice boxes. It is fitted with LC duplex adapters and supports multimode categories OM3 and OM4 as well as singlemode OS2. The panel is intended for rack mounting and has a grey finish with dimensions of 432 mm width, 13 mm depth and 43.5 mm height.

Advantages

The front panel provides a compact 1U solution for terminating and organizing LC duplex connections in splice boxes. Compatible with OM3, OM4 and OS2 fibre types, it simplifies fiber management in racks while maintaining standard 19" mounting. Its slim depth helps save space in shallow rack installations.

Suitable for

• Rack-mounted splice boxes requiring LC duplex terminations
• Multimode OM3/OM4 and singlemode OS2 fiber patching
• Data centres, telecom cabinets and network rooms with 19" racks

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: SB-FP-24SC-S-OM4
• Form factor: 1U front panel for 19" splice boxes
• Adapter type: LC duplex
• Supported fibre categories: OM3, OM4, OS2
• Mounting: Rack mounting (19")
• Colour: Grey
• Dimensions (W×D×H): 432 × 13 × 43.5 mm
• EAN: 4049759258658

How to use

Install the panel into a compatible 19" splice box or rack space using the standard 1U mounting points. Fit LC duplex connectors or pigtails into the LC adapter ports and secure any internal splices according to the splice box instructions. Route and label fibre cables to maintain order and accessibility. Ensure connectors and fibres are clean before making connections.

Recommendations

Use appropriate fibre cleaning tools and follow standard fibre handling procedures. Verify compatibility of patch cords and pigtails with OM3/OM4 multimode or OS2 singlemode specifications before termination.
