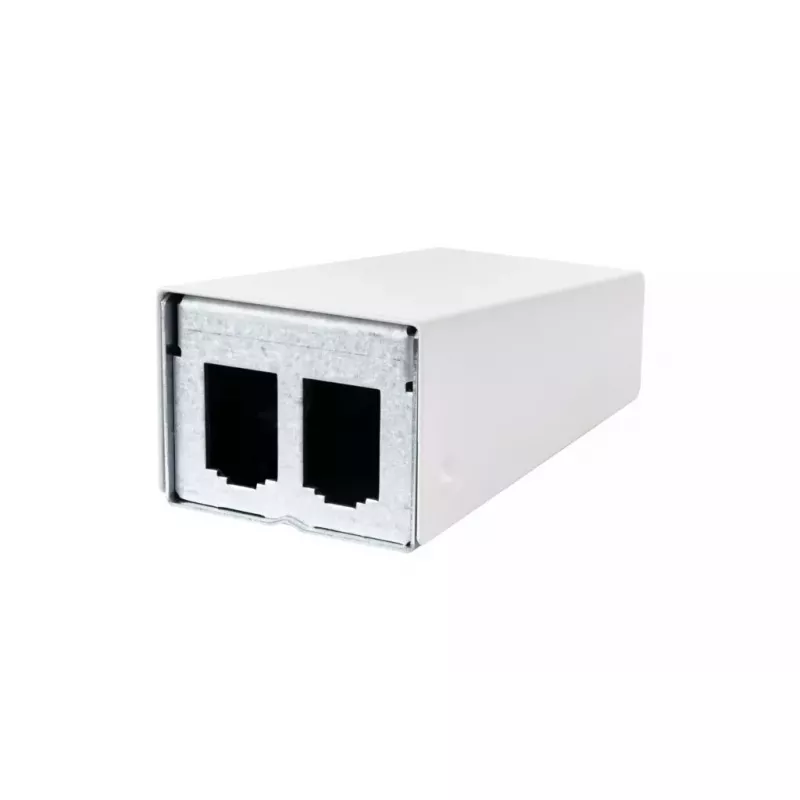

Accessorio per patch panel METZ CONNECT 130861-0202-E montaggio a parete bianco alluminio acciaio zincato

The METZ CONNECT 130861-0202-E wall mounting accessory for patch panels is a compact and durable support component intended for secure attachment of compatible network panels to vertical surfaces. Constructed from white aluminium and zinc-plated steel, the accessory combines a corrosion-resistant finish with a slim profile, providing a practical mounting solution for small to medium-sized cabling installations. The halogen-free materials and compliance with REACH and RoHS standards make it suitable for use in environments where material safety and regulatory conformity are required.

Advantages

The aluminium and zinc steel construction delivers a lightweight yet sturdy mounting bracket with enhanced resistance to corrosion and wear. Its compact dimensions (52 mm width, 110 mm depth, 43.6 mm height) allow installation in confined spaces while maintaining stable support for patch panels. Being halogen-free and meeting REACH and RoHS requirements ensures reduced hazardous substance content and alignment with common safety and environmental regulations.

Suitable for

• Wall mounting of compatible network patch panels in offices and server rooms
• Small server cabinets or telecom enclosures where space is limited
• Retrofit installations that require a slim, low-profile mounting solution
• Environments requiring materials compliant with REACH and RoHS standards

Key specifications

• Material: white aluminium and zinc-plated steel
• Finish: corrosion-resistant coating
• Dimensions: 52 mm (width) × 110 mm (depth) × 43.6 mm (height)
• Material properties: halogen-free
• Standards compliance: REACH and RoHS

How to use

Position the mounting accessory on the intended wall surface at the required height and mark drilling points according to the accessory’s hole pattern. Secure the bracket to the wall using appropriate fasteners for the wall material (anchors, screws or bolts not supplied). Once mounted, align the compatible patch panel with the accessory and fasten it using the panel’s mounting holes and suitable screws. Verify the assembly is level and firmly attached before routing cables and performing final network connections.

Recommendations

Use corrosion-appropriate fasteners and anchors matched to the wall substrate to ensure long-term stability. Confirm compatibility with the specific patch panel model prior to installation and avoid overtightening screws to prevent deformation of the aluminium component.
