Accessorio per montaggio fotocamera Novoflex CASTEL XQ II

The Novoflex CASTEL XQ II is a compact macro focusing rack and camera mounting accessory that provides precise linear movement for macro and stereo photography. At 25 cm (9.84 in) body length it delivers up to 37.5 cm (14.8 in) of camera travel using the integrated Q=MOUNT XD cross quick-release. The design supports 90° cross mounting with a single quick-release, and allows cameras with battery grips and macro lenses with tripod collars to be rotated from landscape to portrait orientation without additional spacer plates. The CASTEL XQ II is compatible with Novoflex quick-release systems and many ARCA-style plates and accepts the CASTEL-COP DIGI slide copying attachment.

Advantages

The CASTEL XQ II combines a compact form factor with extended travel via the integrated Q=MOUNT XD cross quick-release, enabling large camera movement from a short rack. It supports 90° cross mounting using only one quick-release, simplifies switching between landscape and portrait orientations for cameras with battery grips or lenses with tripod collars, and is compatible with existing Novoflex UniQ/C (new standard) and ARCA-compatible quick-release units. Adding a second focusing rack provides precise two-axis movement for controlled macro and stereo setups.

Suitable for

• Macro photography requiring precise, repeatable focus shifts
• Stereo photography and 3D image capture
• Copying and slide reproduction with CASTEL-COP DIGI
• Setups where compact length but long travel is needed

Key specifications

• Brand: Novoflex
• Model: CASTEL XQ II
• Body length: 25 cm (9.84 in)
• Maximum camera travel: 37.5 cm (14.8 in) via Q=MOUNT XD
• Compatibility: Q=MOUNT XD, UniQ/C (new standard), ARCA-compatible plates
• Color: Black
• Dimensions (manufacturer data summary): width 110 mm, depth 250 mm, height 50 mm
• MPN: CASTEL XQ II
• EAN: 4030432413204

How to use

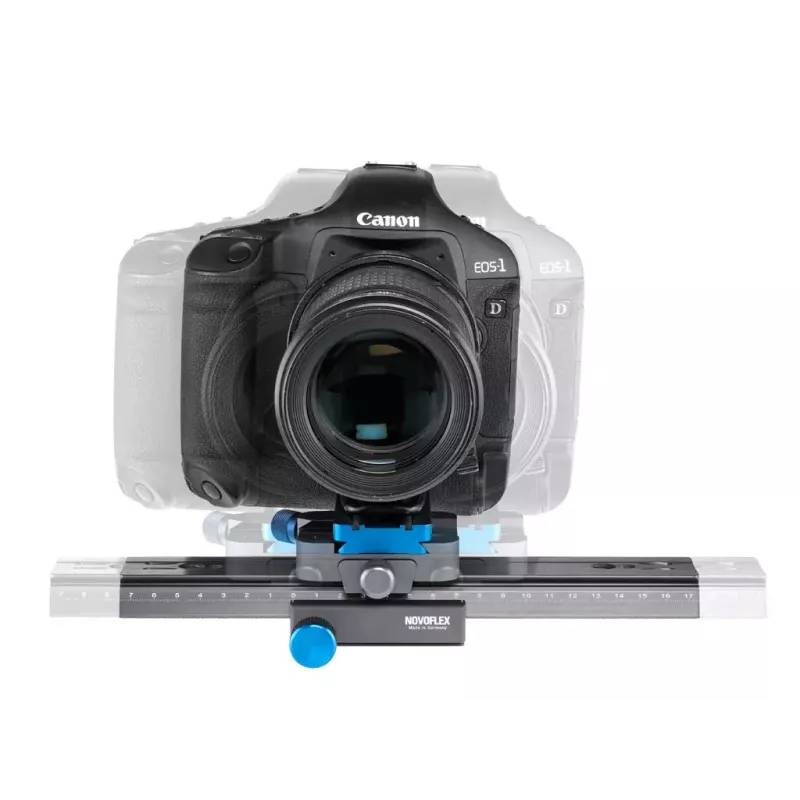

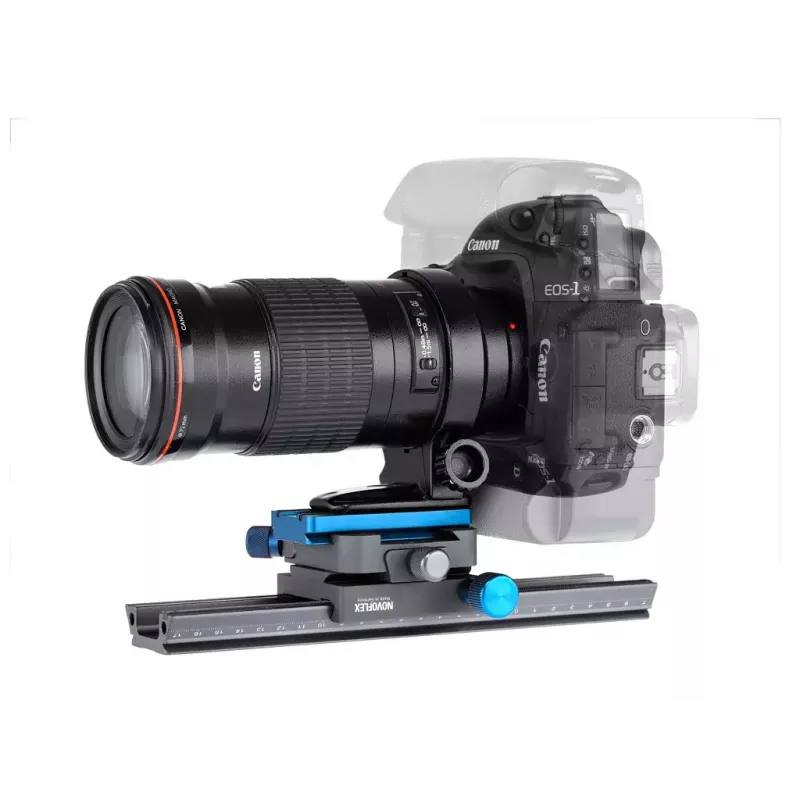

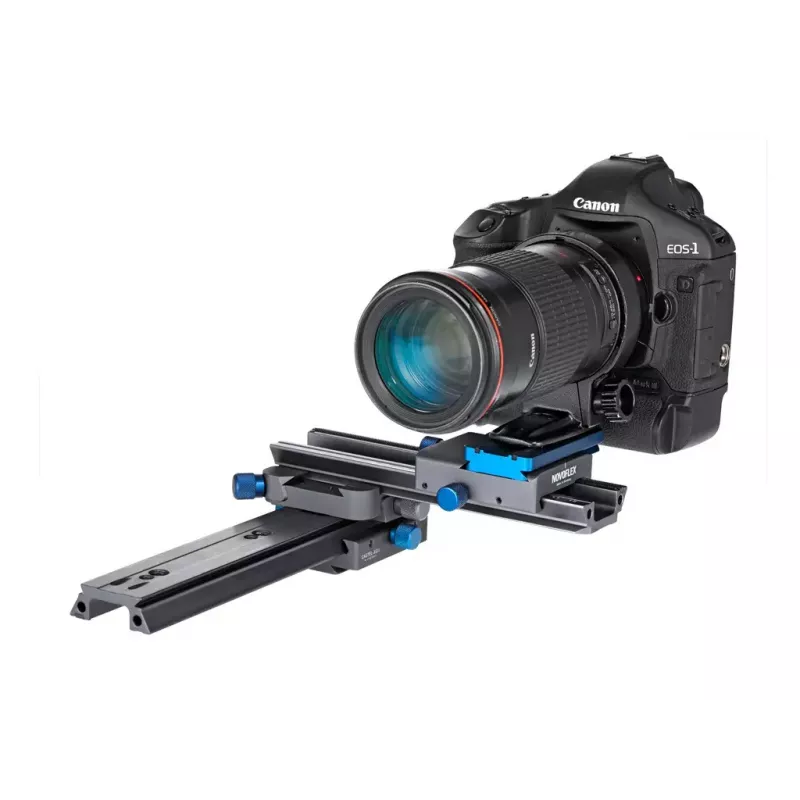

Mount the CASTEL XQ II on a tripod or support compatible with its base, attach the camera to the integrated Q=MOUNT XD cross quick-release, and adjust the rack to achieve the desired forward or backward camera travel. For 90° cross mounting, secure the camera with the single quick-release and rotate the mounting assembly as required. To create two-axis movement, attach a second focusing rack (such as CASTEL-L, CASTEL-Q or another CASTEL XQ II) to form a cross focusing setup and make fine adjustments on each axis for precise positioning. When using slide copying, mount the CASTEL-COP DIGI on top according to its instructions.

Recommendations

Use compatible quick-release plates and ensure all clamps are tightened before making fine adjustments. When working with heavy lenses or battery grips, double-check balance and support to avoid strain on the rack or tripod head. Combine with a second focusing rack for stereo or dual-axis focusing to improve precision.
