Accessorio per supporto monitor Chief MCM1U

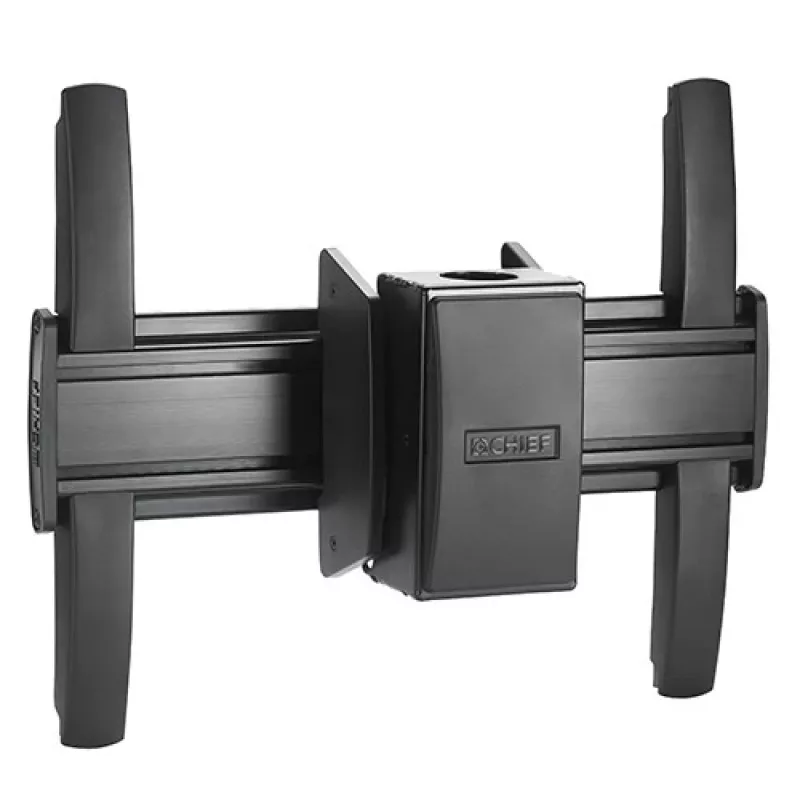

The Chief MCM1U is a ceiling-mount accessory designed for medium flat-panel displays and digital signage. It provides a secure ceiling connection for a single display, supports up to 56.7 kg, and is finished in black. The mount is compatible with both traditional 1.5" NPT and newer CPA pinned ceiling plates and columns (ceiling plate and extension column must be ordered separately).

Advantages

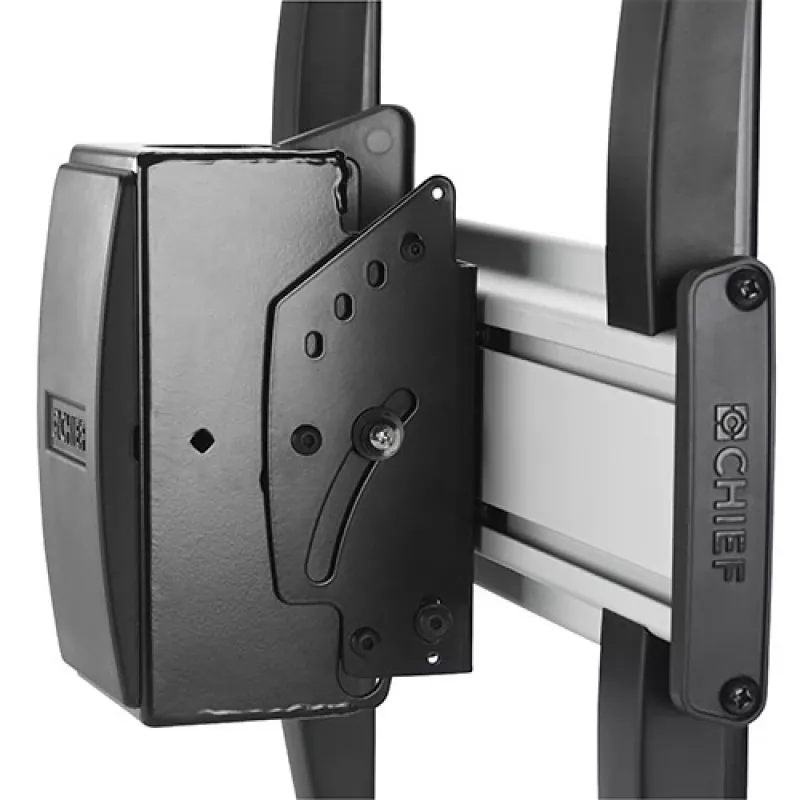

The mount offers continuous tilt with four set locking points for repeatable angle adjustments across multiple screens. A Centris fingertip tilt mechanism allows smooth, tool-free tilt adjustment. The unit provides swivel capability for flexible viewing angles and simple on/off connection for easy installation and service. Tool-free screen engagement is standard, with an optional padlock security feature for added protection.

Suitable for

• Medium flat-panel displays and digital signage installations
• Single-display ceiling-mounted setups in commercial or residential spaces
• Applications requiring adjustable tilt and repeatable positioning

Key specifications

• Model: Chief MCM1U
• Maximum weight capacity: 56.7 kg
• Supports: 1 display
• Colour: Black
• VESA compatibility: any pattern within 400 x 400 mm range
• Ceiling plate compatibility: 1.5" NPT and CPA pinned systems (plate and column sold separately)

How to use

Install a compatible ceiling plate and extension column (ordered separately) according to the ceiling plate manufacturer instructions and local building codes. Attach the MCM1U to the extension column using the appropriate connection type (1.5" NPT or CPA pin). Mount the display to the bracket, engage the tool-free screen latch, and adjust tilt using the Centris fingertip tilt mechanism. Use the four locking positions to set repeatable tilt angles and swivel the mount as needed to achieve the desired viewing orientation.

Recommendations

Verify that the chosen ceiling plate and extension column are rated for the combined weight of the MCM1U and the display. Ensure VESA pattern compatibility (up to 400 x 400 mm) and follow all installation instructions and local safety regulations. For permanent public installations consider using the optional padlock feature for additional security.
