Accessorio rack Lanview RAS100WH bianco acciaio portata 50 kg

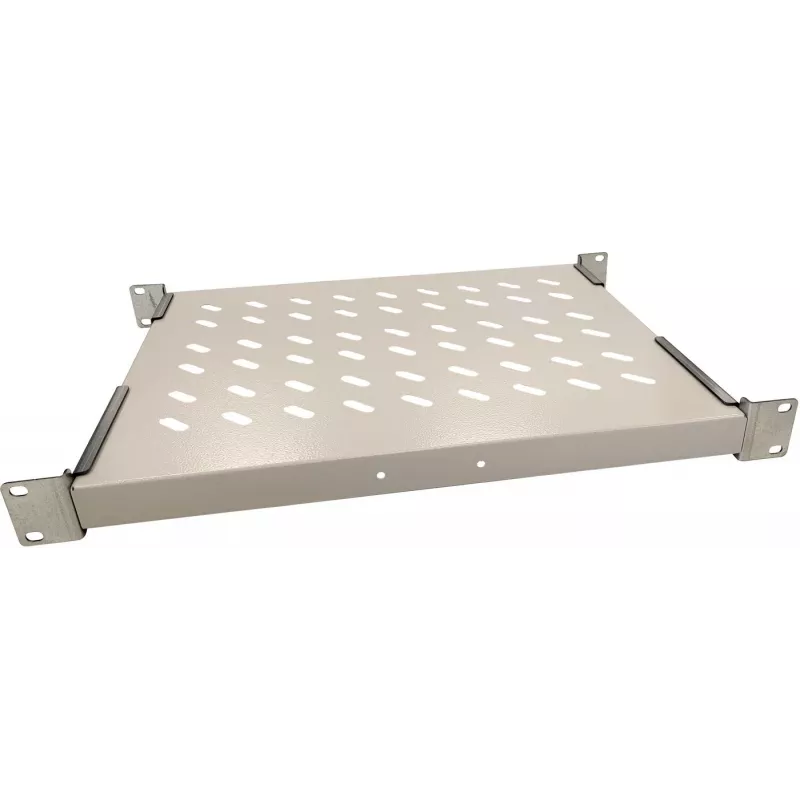

Logon RAS100WH is a fixed 1U shelf designed for 19" cabinets with 600 mm depth. Constructed from white steel, the shelf provides a flat support surface with ventilation slots and four connection points for secure mounting. Rectangular openings on the front and back allow attachment of a single cable organizer to route and tidy cables from installed equipment.

Advantages

The fixed shelf offers a compact 1U footprint and a painted white steel finish for durability and corrosion resistance. Ventilation slots help with passive airflow around mounted equipment, while four mounting points ensure stable installation. The front and rear rectangular openings make it possible to add a cable organizer for neat cable management. The shelf supports equipment up to the specified maximum static load.

Suitable for

• Mounting non-rack-mountable devices in 19" racks with 600 mm depth
• Supporting power supplies, small switches, or media players inside network cabinets
• Organizing and routing cables with an attached cable organizer
• Use in server rooms, network closets, or telecom cabinets

Key specifications

• Model: Logon RAS100WH (Lanview RAS100WH)
• Form factor: 1U fixed shelf for 19" cabinets
• Compatible cabinet depth: 600 mm
• Dimensions (W x D x H): 465 x 345 x 25 mm
• Maximum static load: 50 kg
• Color: White
• Material: Steel
• MPN: RAS100WH
• EAN: 5420016845290

How to use

Install the shelf in a 19" cabinet by aligning the shelf's mounting points with the cabinet rails at the desired U position and secure it with appropriate rack screws. Place equipment on the shelf ensuring the total weight does not exceed 50 kg. If needed, mount a cable organizer into the rectangular openings on the front and back edges to route cables neatly. Verify that ventilation slots are not blocked to maintain passive airflow.

Recommendations

Check cabinet rail spacing and use the correct rack hardware for 19" cabinets. Distribute weight evenly across the shelf and avoid concentrating heavy items at the front edge. Regularly inspect mounting points and fasteners for tightness, and ensure cable organizers are properly secured to prevent strain on cables.
