Accessorio rack Lanview RAS600WH 1U bianco acciaio 30 kg

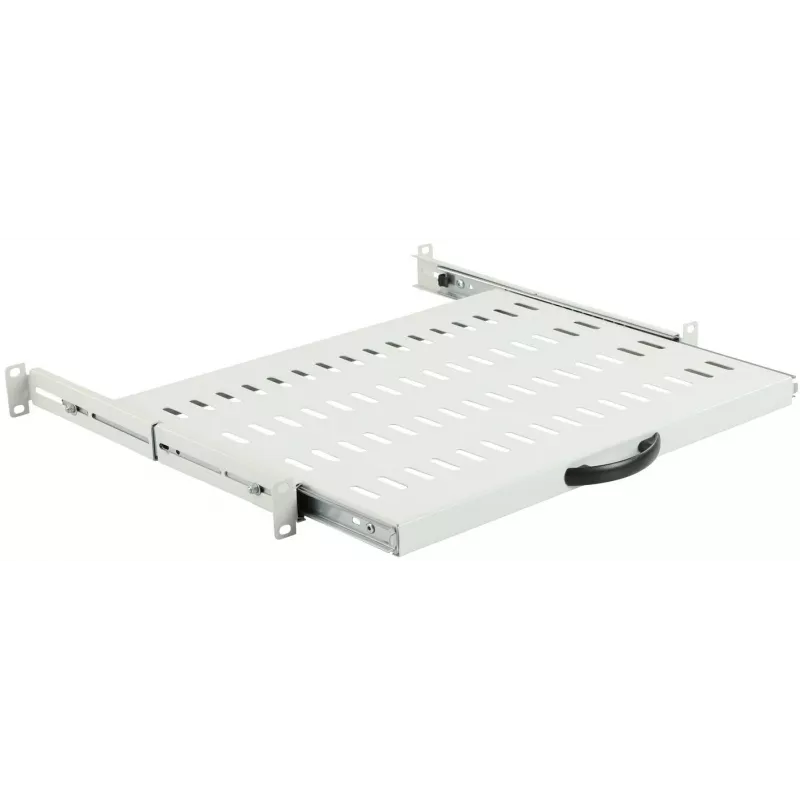

19" sliding shelf compatible with standard 19" racks and LOGON cabinets, in a 1U height. Constructed from white steel (RAL 7035), the shelf measures W 482 x D 345 x H 45 mm and supports a maximum static load of 30 kg. It features four connection points for secure mounting and ventilation slots in the tray for improved airflow.

Advantages

The Lanview RAS600WH sliding shelf is made of robust steel and offers a compact 1U profile that saves rack space while allowing easy access to equipment. Its white RAL 7035 finish provides a uniform appearance in server rooms and technical cabinets. The tray includes ventilation slots to help dissipate heat from devices placed on the shelf.

Suitable for

• Mounting non-rackable devices such as small equipment, power supplies, and peripherals
• Temporary placement of tools and components during maintenance
• Organizing light equipment in office and server cabinets where a 1U shelf is required

Key specifications

• Model: Lanview RAS600WH (MPN: RAS600WH, EAN: 5420016845504)
• Dimensions (W x D x H): 482 x 345 x 45 mm
• Depth for cabinet compatibility: fits cabinets with depth up to 600 mm
• Maximum static load: 30 kg
• Material and color: steel, RAL 7035 (white)
• Mounting: 4 connection points for 19" racks and LOGON cabinets
• Net weight (manufacturer data): approx. 2.26 kg

How to use

Install the sliding shelf in a 19" rack or LOGON cabinet at the desired 1U position using the four provided connection points. Secure the shelf to the rack rails, confirm it is level, and slide the tray to verify smooth movement. Place equipment or components on the shelf while observing the 30 kg maximum static load and leaving clearance for ventilation slots to allow airflow.

Recommendations

Do not exceed the maximum static load of 30 kg and avoid placing heavy concentrated loads near the front or rear edges; distribute weight evenly. Keep ventilation slots unobstructed and perform periodic checks of mounting points for secure attachment.
