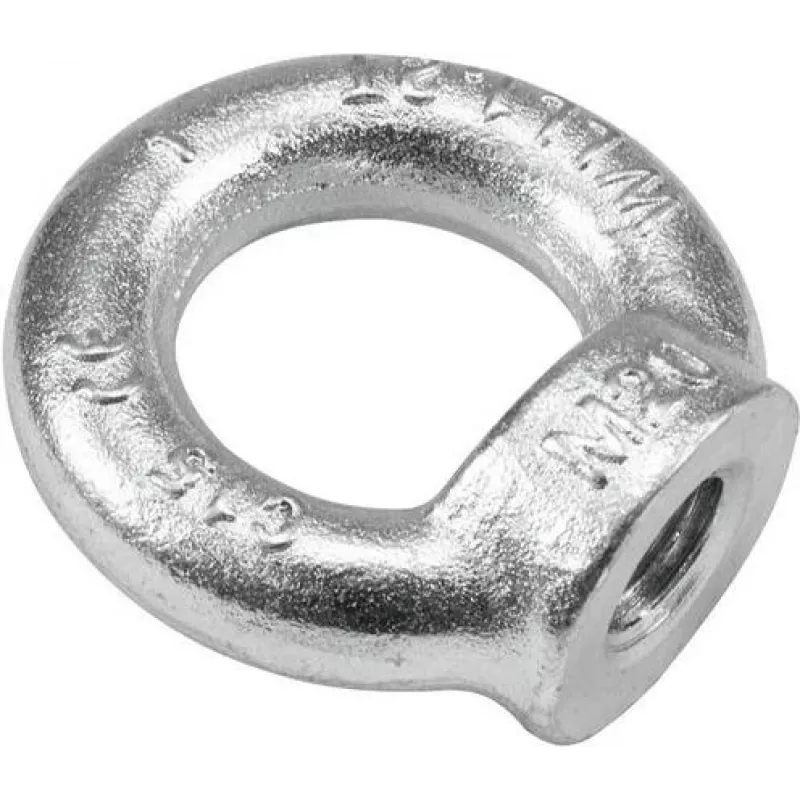

ZUBEHÖR anello con dado M20 DIN 582 C15 acciaio dado ad anello di sollevamento 30001178

Forged steel lifting eye nut with metric coarse M20 thread, rated for axial loads up to 1250 kg with a 4:1 safety factor. Manufactured to DIN 582 from C15 steel with a plain self-colour finish.

Advantages

High load capacity, forged construction for strength, and a standardised M20 thread for easy integration into lifting assemblies.

Suitable for

• Lifting and hoisting applications
• Securing and rigging
• General industrial use

Key specifications

• Thread size: M20
• Material: C15 steel
• Working load limit (axial): 1250 kg
• Safety factor: 4:1
• Eye inner diameter: 35 mm
• Eye outer diameter: 60 mm
• Overall height: 85 mm
• Eye thickness: 20 mm
• Finish: Plain / self-colour
• Manufacturing method: Forged
• Standard: DIN 582

Recommendations

Use only with compatible lifting equipment and inspect before each use. Apply corrosion protection for outdoor or humid environments.
