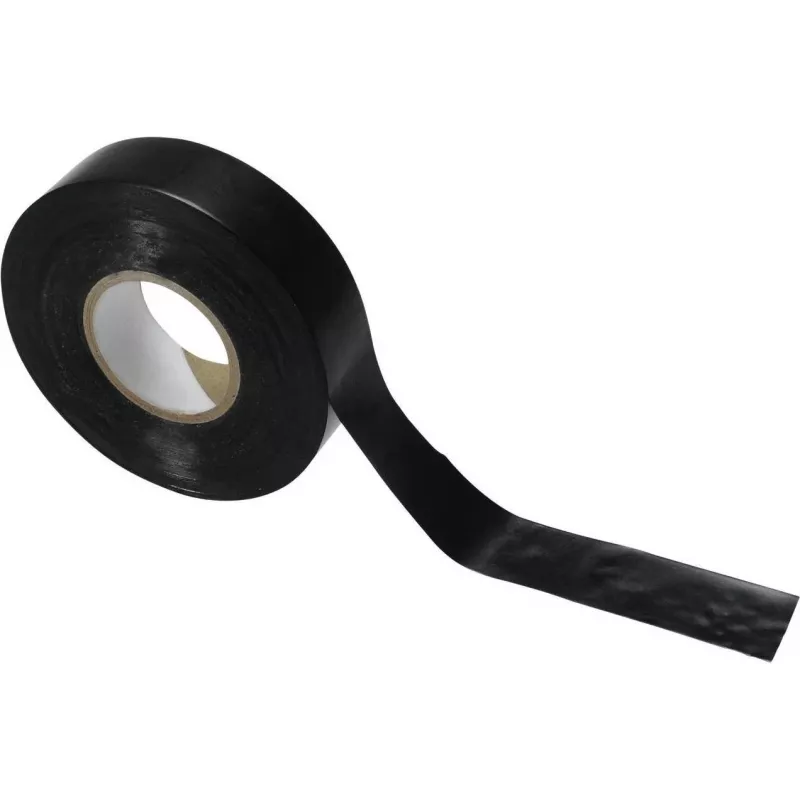

ZUBEHÖR nastro isolante PVC nero 19 mm x 25 m (30005950)

With a dielectric strength exceeding 40 kV/mm, this black PVC insulating tape delivers professional-grade electrical insulation for demanding applications. The 19 mm width and 25 m length provide ample coverage for splicing, bundling, and marking wires and cables.

Overview

Manufactured from soft PVC film with a rubber-based adhesive, this tape offers excellent adhesion to steel (over 1.8 N/10mm) and high tensile strength (over 20 N/10mm). It is flame retardant and self-extinguishing, enhancing safety in electrical installations. The tape operates reliably from -5°C to +90°C and resists UV exposure, making it suitable for both indoor and outdoor use.

What stands out

• Dielectric strength > 40 kV/mm for safe insulation up to 600 V
• Flame retardant and self-extinguishing for added protection
• Good UV resistance for outdoor durability
• Rubber-based adhesive ensures strong, lasting bond
• VDE and IEC 60454-3-1 Type 5 certified for quality assurance

Technical details

• Material: PVC (Polyvinyl Chloride)
• Colour: Black
• Width: 19 mm
• Length: 25 m
• Thickness: 0.15 mm
• Dielectric strength: > 40 kV/mm
• Temperature resistance: -5°C to +90°C
• Adhesion to steel: > 1.8 N/10mm
• Tensile strength: > 20 N/10mm
• Elongation at break: > 180 %
• Voltage rating: Up to 600 V
• Flame retardant: Yes (self-extinguishing)
• UV resistance: Good
• Core diameter: 38 mm
• Backing material: Soft PVC film
• Adhesive type: Rubber-based adhesive

Our verdict

A reliable, certified insulating tape that meets professional standards for electrical insulation, bundling, and marking. Its flame retardancy and UV resistance make it a versatile choice for both indoor and outdoor electrical work.
