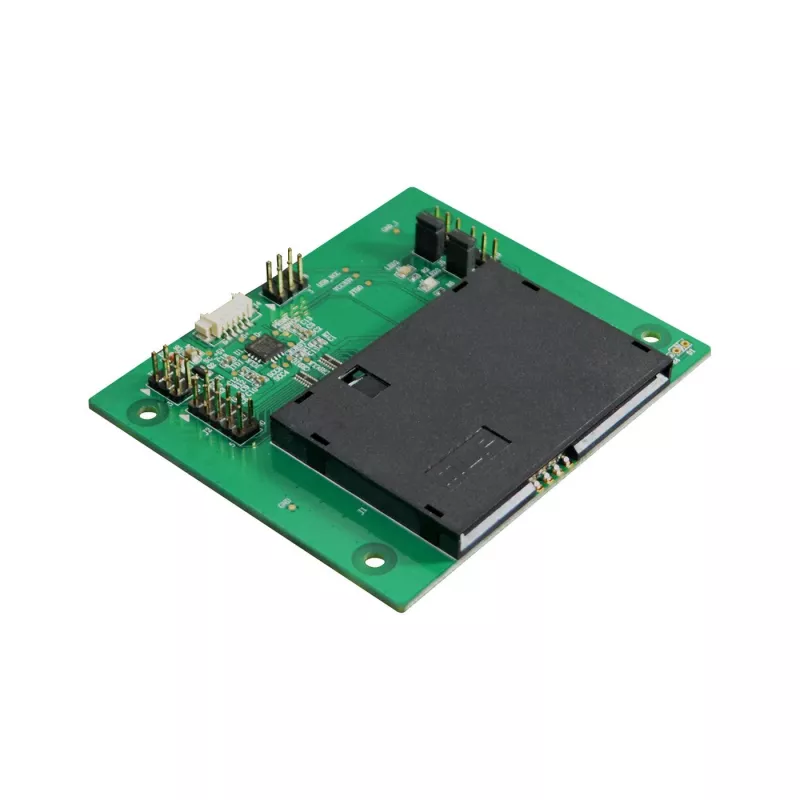

ACS ACM39U-Y3 Modulo lettore di smart card - USB 2.0, ISO 7816, PC/SC, CCID

The ACS ACM39U-Y3 is a compact and reliable embedded smart card reader module designed for integration into various systems. It supports ISO 7816 Class A, B, and C cards (5V, 3V, 1.8V) and communicates via USB 2.0 Full Speed interface. With PC/SC and CCID compliance, it offers plug-and-play functionality on Windows, Linux, macOS, Android, and Solaris. The module is EMVCo Level 1 certified, ensuring secure and efficient card transactions.

Advantages

This smart card reader module provides high-speed data transfer up to 344 Kbps, low power consumption (max 50mA), and robust ESD protection (±8 kV air, ±4 kV contact). Its firmware is upgradeable, and it supports T=0 and T=1 protocols. The compact design makes it ideal for embedded applications.

Suitable for

• Embedded systems requiring secure smart card authentication
• POS terminals, access control systems, and kiosks
• Digital signature and encryption applications
• Government and enterprise ID solutions

Key specifications

• Interface: USB 2.0 Full Speed
• Smart Card Support: ISO 7816 Class A, B, C (5V, 3V, 1.8V)
• Protocols: T=0, T=1
• Read/Write Speed: Up to 344 Kbps
• Supply Voltage: Regulated 5V DC
• Supply Current: Max 50mA
• Operating Temperature: 0°C to 50°C
• OS Support: Windows, Linux, macOS, Android, Solaris
• API Support: PC/SC, CT-API (via PC/SC wrapper)
• Certifications: EMVCo Contact Level 1, PC/SC, CCID, RoHS, CE, FCC, VCCI, KC, Microsoft WHQL
• Module Type: Embedded Smart Card Reader Module
• Card Insertion Type: Contact
• Number of Card Slots: 1
• Firmware Upgradeable: Yes
• ESD Protection: ±8 kV Air, ±4 kV Contact
• Clock Frequency: 4.8 MHz
• Driver Support: CCID compliant (driverless for most OS)

Recommendations

For seamless integration, ensure your system supports USB 2.0 and CCID drivers. This module is ideal for developers and OEMs looking for a reliable, certified smart card reader component.
