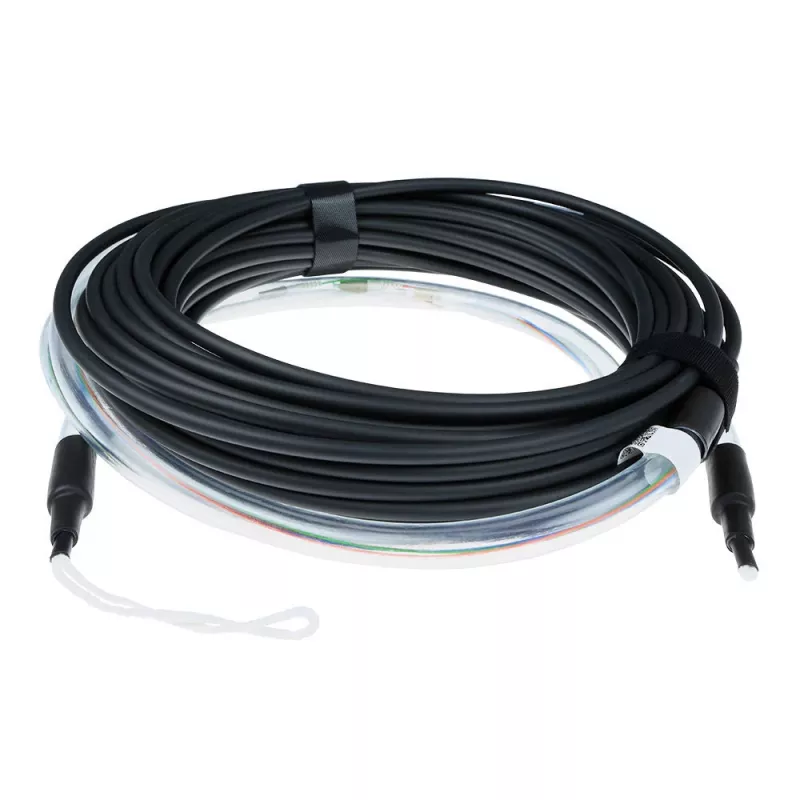

ACT 150 metri cavo multimodale 50/125 OM4 per interni/esterni 8 fibre con connettori LC

ACT 150 meter Multimode 50/125 OM4 indoor/outdoor cable with 8 LC connectors is a pre-terminated fiber optic installation cable designed for straightforward deployment between rooms, floors or buildings. The cable combines OM4 multimode fiber performance with LC connectors already fitted and individually tested, and includes a test report for each unit.

Advantages

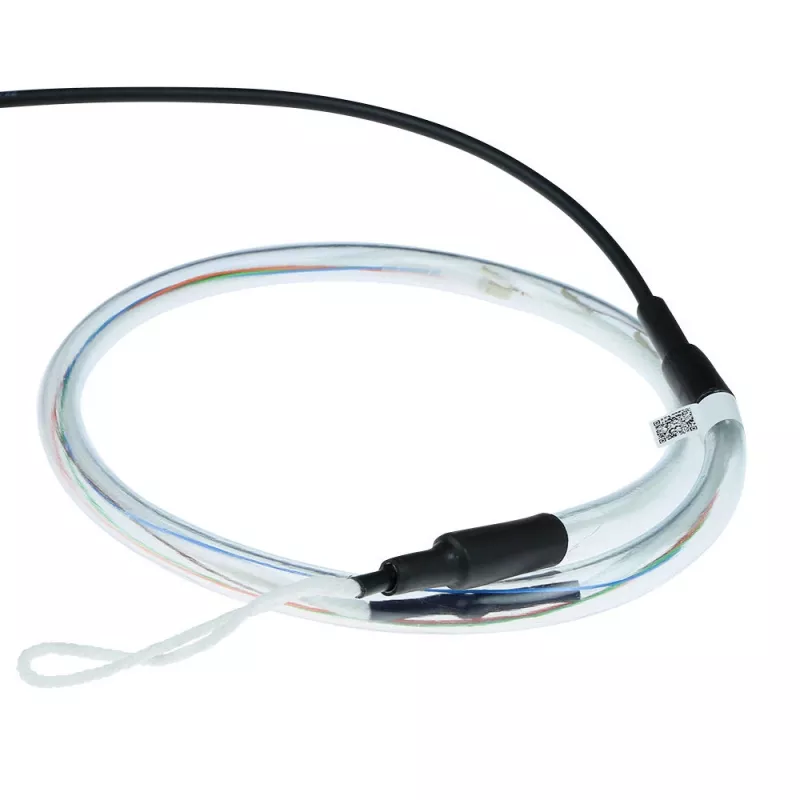

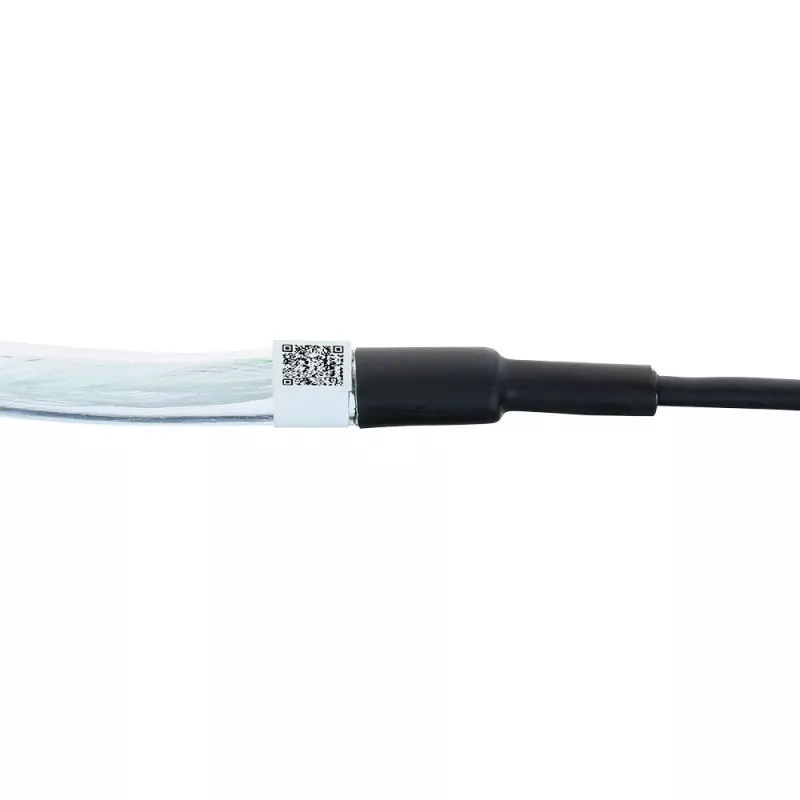

Pre-terminated construction removes the need for onsite connectorization and specialized tooling. The cable provides low optical attenuation (average 0.1 dB, maximum 0.15 dB), allowing wider optical budgets and future-proofed links. A transparent protective tube shields the connectors and fanout on both ends during installation, and the robust outer construction including a drawbar eye withstands pulling forces up to 350 N while the 18 mm protective jacket diameter keeps the assembly easy to route through conduits.

Suitable for (tasks / use cases)

• Connecting two buildings or campus locations
• Installing backbone or riser links between floors
• Linking distribution points or equipment rooms within a building

Key specifications

• Fiber type: Multimode OM4 (50/125 µm)
• Length: 150 meters
• Number of fibers: 8

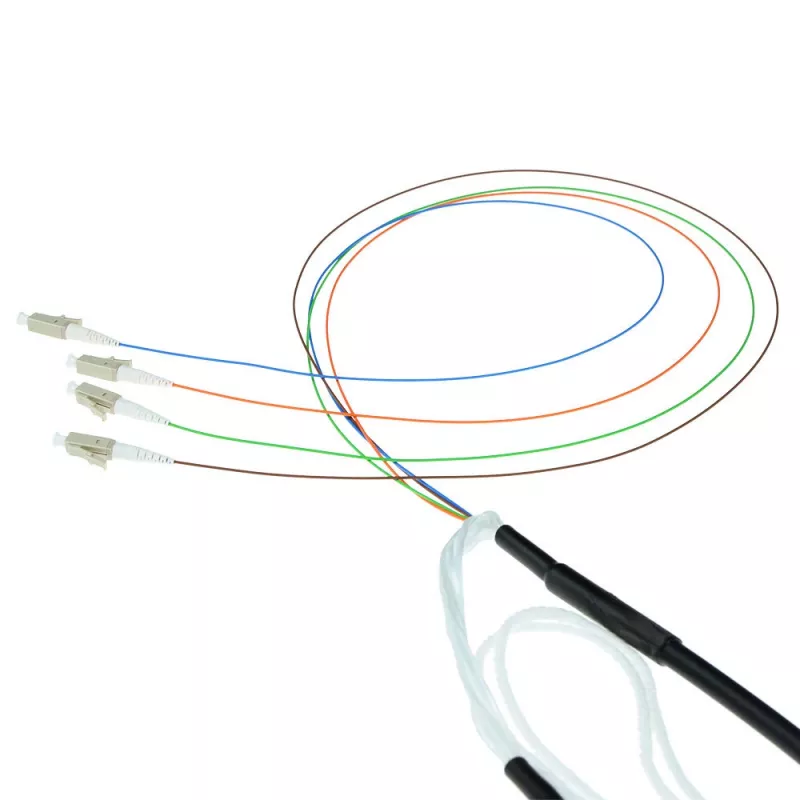

• Connector type: LC on both ends (pre-terminated)
• Typical attenuation: average 0.1 dB, maximum 0.15 dB (per connector/termination as specified)
• Indoor/outdoor rated cable construction
• Protective outer diameter: 18 mm (protective tube/jacket)
• Maximum tensile strength during installation: up to 350 N
• Euroclass reaction to fire: Dca (CPR compliant)

How to use

Deploy the pre-terminated cable by pulling the assembled cable through the pathway or conduit to the required endpoints, taking care to use the integrated drawbar eye for pulling. Remove the transparent protective tubes only after the cable is positioned and secured; then connect the LC connectors to the appropriate adapter panels or equipment ports. No onsite termination or polishing is required; each cable has been factory-tested and delivered with a test report.

Recommendations

Ensure pull tensions do not exceed the specified 350 N and avoid tight bends during installation. Protect connector endfaces from dust and damage prior to final mating and follow site grounding and outdoor routing practices where applicable. Scan the QR code on the cable for the manufacturer’s detailed installation instructions and test report.
