ACT cavo coassiale RG58 50 Ohm 100m nero RG58ZT

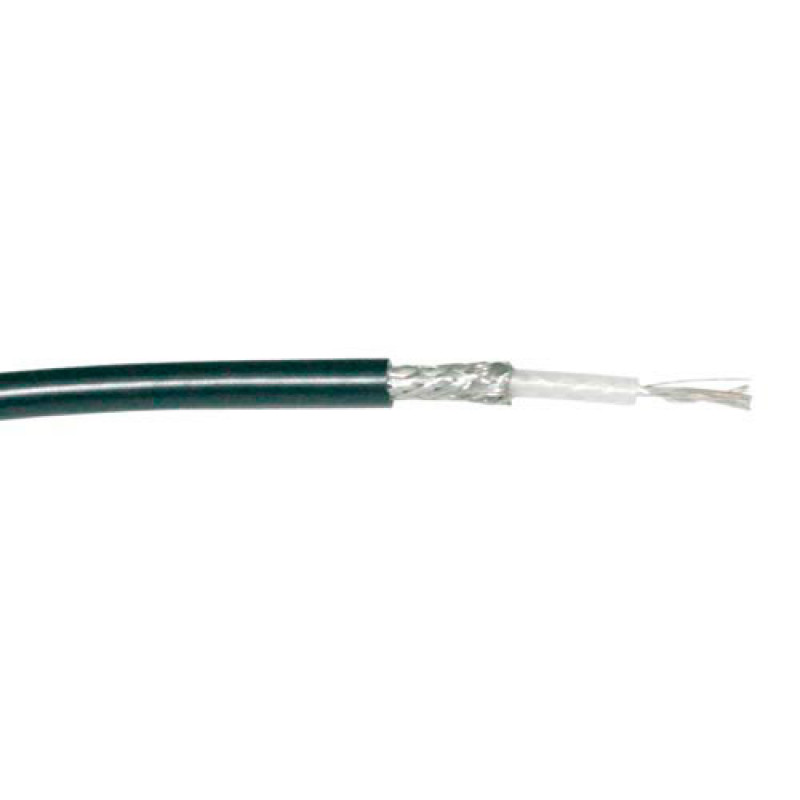

The ACT RG58ZT is a 100-metre RG58 coaxial cable with a 50 Ohm impedance, built for reliable signal transmission in radio frequency applications. Its tinned copper braid shielding with over 95% coverage and solid polyethylene dielectric ensure consistent performance, while the black PVC jacket provides durability and flexibility for routing in various environments.

Highlights

• 50 Ohm impedance for standard RF systems
• 100 m length on a spool for custom installations
• Stranded tinned copper inner conductor (20 AWG) for flexibility
• Braided tinned copper shield with >95% coverage
• Solid polyethylene (PE) dielectric for stable signal velocity
• Black PVC outer jacket for protection and easy identification
• Operating temperature range from -20°C to +70°C

In daily use

This cable is suitable for antenna feeds, radio equipment interconnects, and low-power RF signal distribution where a 50 Ohm characteristic impedance is required. The 100-metre bulk length allows custom cutting and connector termination on site, making it a practical choice for installers and hobbyists.

Full specifications

• Cable type: RG58
• Impedance: 50 Ohm
• Length: 100 m
• Inner conductor: stranded tinned copper, 0.81 mm (20 AWG)
• Dielectric: solid polyethylene (PE), 2.95 mm diameter
• Shielding: tinned copper braid, >95% coverage
• Outer jacket: PVC, 4.95 mm diameter, black
• Capacitance: 100 pF/m
• Velocity of propagation: 66%
• Max operating voltage: 1900 V RMS
• Attenuation: 14.6 dB/100m @ 100 MHz, 30.5 dB/100m @ 400 MHz, 50.5 dB/100m @ 1 GHz
• Operating temperature: -20°C to +70°C

Final note

For bulk RF cabling with consistent 50 Ohm performance, the ACT RG58ZT offers a practical solution with verified specifications.
