ACT cavo di alimentazione C19 IEC Lock - C20 IEC Lock dual locking nero 1 m, PC3632

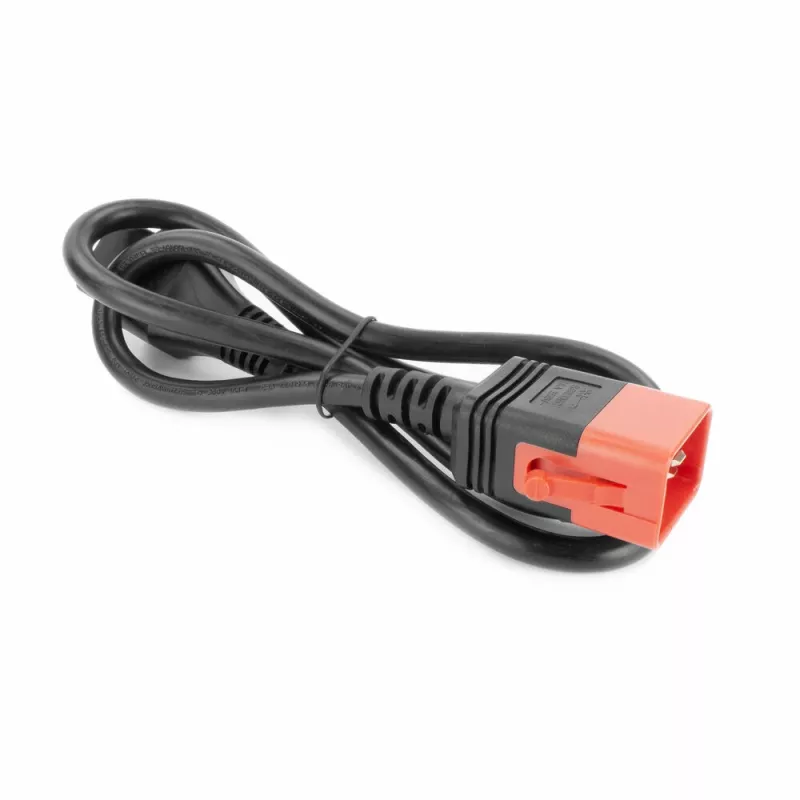

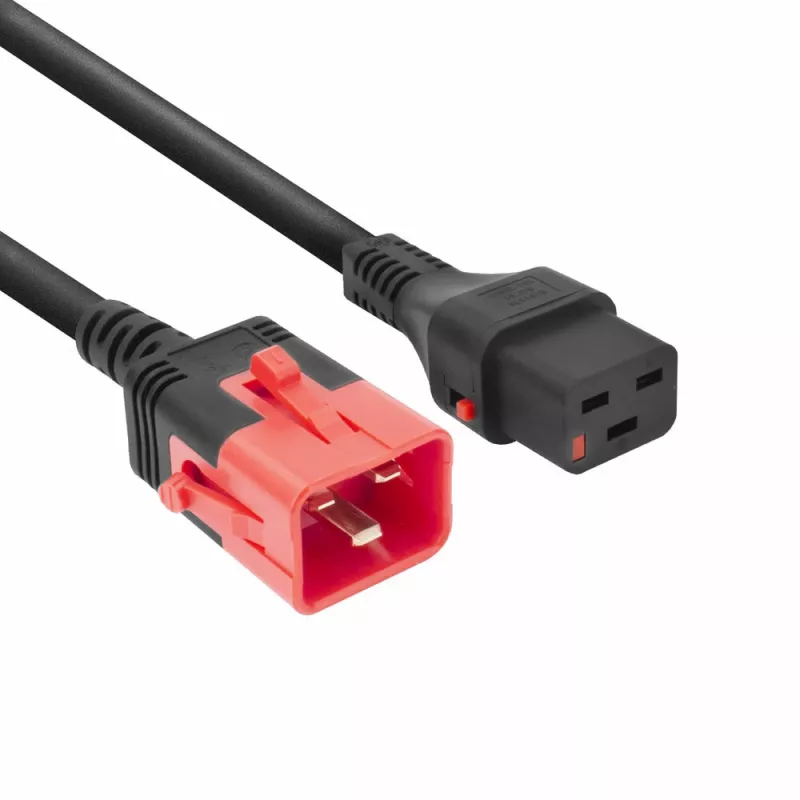

The ACT Powercord C19 IEC Lock to C20 IEC Lock is a 1 m mains cable designed for secure, high-current connections between equipment and PDUs. It features a C19 IEC Lock on one end and a dual-locking C20 IEC connector on the PDU side. The cable supports up to 250 V and 16 A and is available in multiple colors for easy identification.

Advantages

The dual-locking design secures the connection at both ends, reducing the risk of accidental disconnection and associated downtime. The C20 connector locks at the top and side, providing extra retention without requiring PDU-specific locking hardware or tools. The universal locking mechanism is compatible with major PDU brands and can be used in multiple regions including Europe, Australia (16A/250V~), USA, Canada and Japan (20A/120V~).

Suitable for

Key specifications

How to use

Insert the C19 IEC Lock into the equipment inlet and the C20 dual-locking connector into the PDU outlet until each connector clicks into place. Ensure the dual-locking latch on the C20 engages at the top and side to confirm a secure connection. No tools or PDU-side modifications are required. To disconnect, release the locking mechanism according to the connector’s release method and withdraw the plug.

Recommendations

Use the cable in accordance with the device and PDU manufacturer’s electrical specifications and local regulations. Check compatibility with the target PDU and equipment in terms of inlet type, voltage and current ratings before installation.
