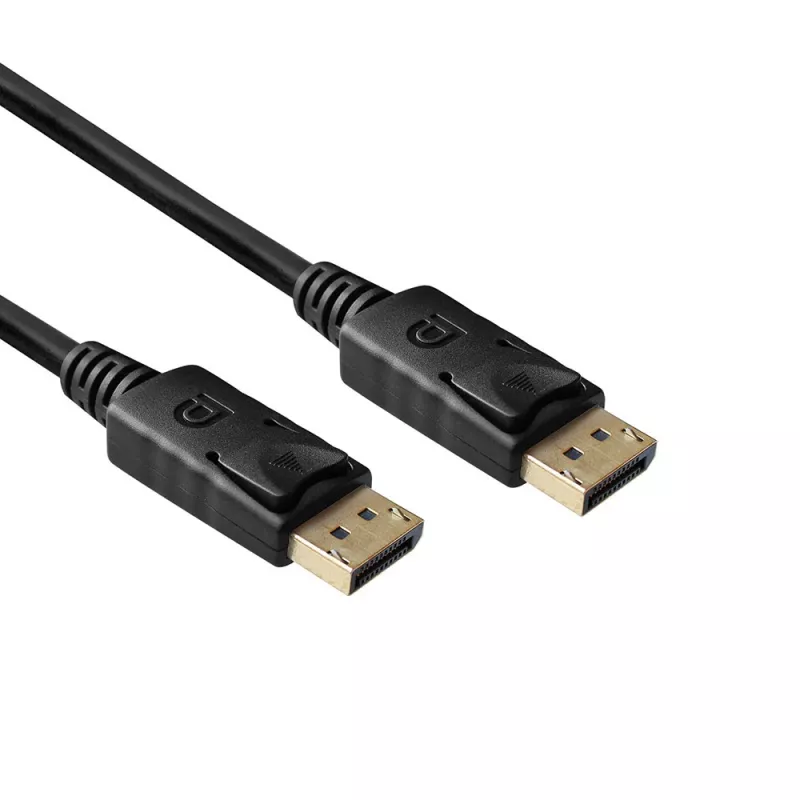

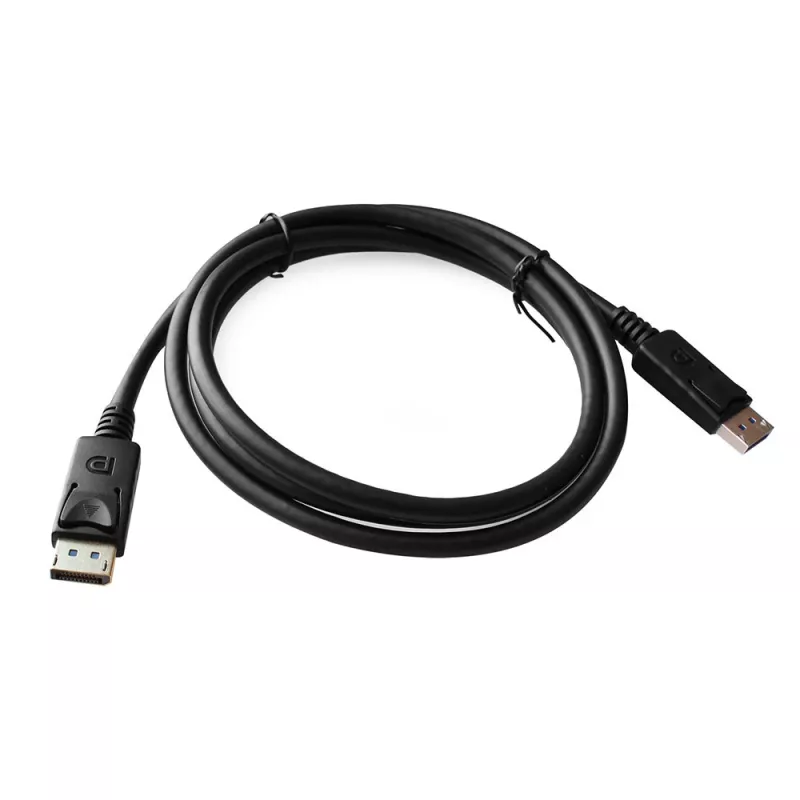

ACT cavo DisplayPort 1.4 3 metri 8K maschio – maschio

The ACT DisplayPort cable (3 m) is a DisplayPort 1.4 male-to-male lead designed for high-resolution video and multichannel audio transmission. It supports up to 8K @ 60Hz and 4K @ 120Hz with a maximum bandwidth of 32.4 Gbps, HDR support and a 7.3 mm diameter jacket for a balance of flexibility and durability. The cable is suitable for connecting monitors, graphics cards and other DisplayPort-equipped devices where a reliable, high-bandwidth connection is required.

Advantages

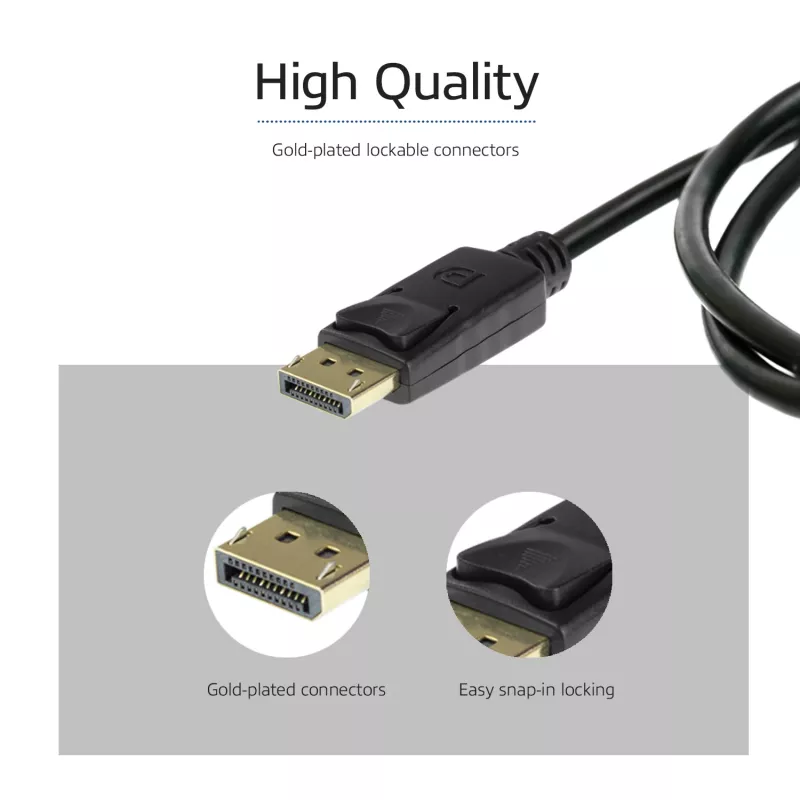

Supports high resolutions and refresh rates (8K @ 60Hz, 4K @ 120Hz) and a max bandwidth of 32.4 Gbps, includes HDR support for improved contrast and colour reproduction, features Display Stream Compression (DSC) 1.2 and Forward Error Correction for stable high-data-rate transmission, provides 32 inline audio channels and gold-plated lockable DisplayPort connectors for secure connections and corrosion resistance.

Suitable for

• High-resolution monitors and multi-monitor setups
• Gaming PCs and consoles requiring high frame rates
• Professional graphics workstations and video editing
• Home entertainment systems and HDR-capable displays

Key specifications

• Cable length: 3 m
• Standard: DisplayPort 1.4
• Maximum resolution/refresh: 8K @ 60Hz, 4K @ 120Hz
• Maximum bandwidth: 32.4 Gbps
• Features: DSC 1.2, Forward Error Correction, 32 inline audio channels
• Connectors: DisplayPort male — DisplayPort male, gold-plated, lockable
• Colour: Black
• Diameter: approx. 7.3 mm

How to use

Connect one DisplayPort male connector to the DisplayPort output on your graphics card or source device and the other male connector to the DisplayPort input on your monitor or display. Ensure both devices are powered on and set the display resolution and refresh rate in the operating system or graphics control panel to match the supported 8K/4K modes. Use the locking mechanism on the connectors to secure the connection and avoid strain on the cable by routing it without sharp bends.

Recommendations

For optimal performance at the highest resolutions and refresh rates, use recent graphics drivers and enable DSC if available on both the source and display. Avoid running the cable tightly bent or pinched, and keep connectors free from dust. If using long displays or adapters, verify that all intermediate devices also support DisplayPort 1.4 features.
