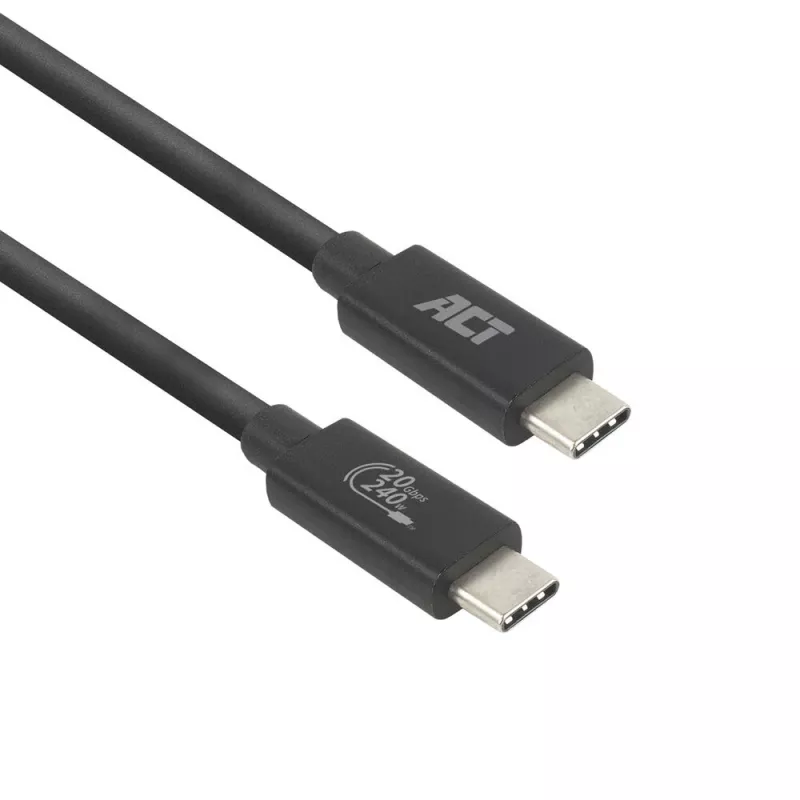

ACT cavo USB4 20Gbps 240W USB Type-C 2m nero certificato USB-IF

The ACT USB4 20Gbps 240W USB Type-C Cable (AC7432) is a 2 m USB-C cable certified by USB-IF that supports the USB4® protocol. It delivers up to 20 Gbps data transfer, up to 240W power via Extended Power Range (EPR) and supports video output up to 4K@60Hz. The cable is backwards compatible with Thunderbolt™3, USB 3.2, USB 3.1, USB 3.0 and USB 2.0 and includes an intelligent e-marker chip to negotiate features between connected devices.

Advantages

The AC7432 provides simultaneous high-speed data, high-wattage power delivery and DisplayPort video over a single USB-C connection. With USB4® 20Gbps support and an e-marker chip, the cable negotiates capabilities automatically and offers USB-IF official certification for tested compatibility and safety. The EPR 48V profile enables up to 240W power delivery, which exceeds the 60W limit of standard SPR cables without e-marker chips.

Suitable for

• Fast data transfer between computers and storage devices (up to 20Gbps)
• High-power charging of laptops and USB-C devices that require up to 240W
• Connecting a USB-C host to an external monitor using DisplayPort Alt Mode (up to 4K@60Hz)
• Use with devices supporting Thunderbolt™3 and earlier USB standards

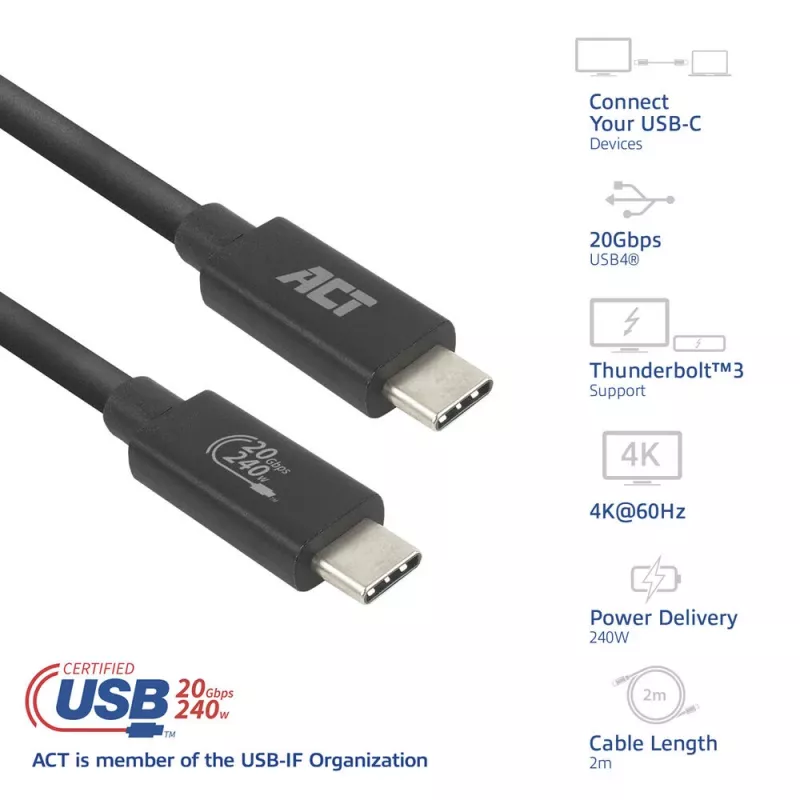

Key specifications

• Model: AC7432
• Standard: USB4 Gen 2x2 (USB4®)
• Maximum data rate: 20 Gbps
• Power Delivery: Extended Power Range (EPR) up to 48V / 240W
• Maximum video: DisplayPort Alt Mode 1.4, up to 4K@60Hz
• Compatibility: Backwards compatible with Thunderbolt™3, USB 3.2/3.1/3.0/2.0
• Length: 2 m
• Connectors: USB-C to USB-C
• Colour: Black

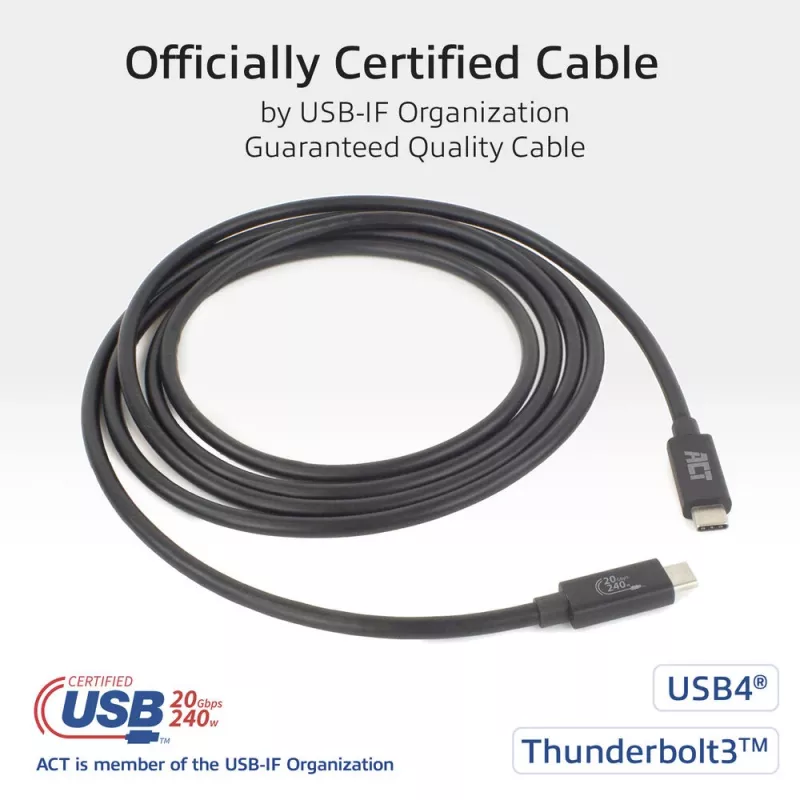

• Certification: Official USB-IF certified (USB-IF logo on connector)

How to use

Connect one USB-C connector to your host device (laptop, desktop or charger) and the other USB-C connector to the peripheral (monitor, storage device or powered device). Ensure both connected devices support the required protocols (USB4/Thunderbolt, PD EPR or DisplayPort Alt Mode) to achieve the advertised data rate, power level and video output. If a device does not support EPR or the necessary alt modes, the cable will negotiate a lower compatible profile.

Recommendations

Use the AC7432 with USB-IF certified chargers and devices that explicitly support USB4, Thunderbolt™3 or PD EPR 48V when you need full 20Gbps data and 240W power. Avoid using the cable with unknown or untested chargers if maximum power delivery is required; check device specifications for EPR and DisplayPort Alt Mode support.
