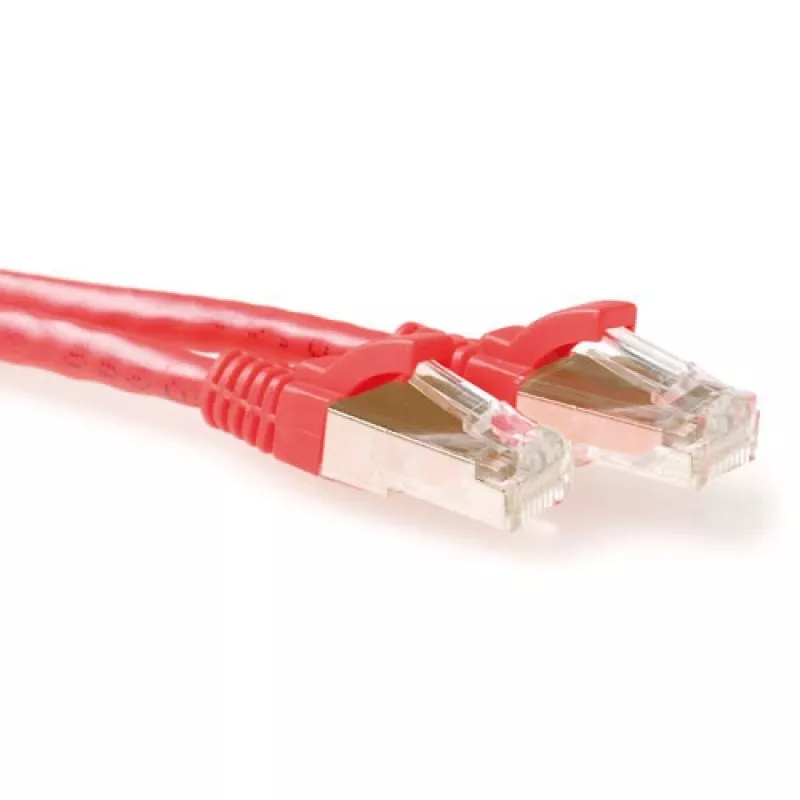

ACT rosso 7 metri LSZH SFTP CAT6A cavo patch snagless con connettori RJ45

The ACT Red 7 meter LSZH SFTP CAT6A patch cable is a 7 m network cable designed for high-speed data transmission in structured cabling environments. It features snagless RJ45 connectors with 50 µin gold-plated contacts and full copper AWG#26 conductors. The cable uses S/FTP shielding to minimize electromagnetic interference and has a Low Smoke Zero Halogen (LSZH) jacket that reduces harmful fumes in case of fire. ACT specifications have been independently verified and each cable is 100% tested to ensure consistent performance.

Advantages

This CAT6A S/FTP patch cable provides improved noise immunity and stable gigabit-plus throughput thanks to individual foil shielding combined with an overall braided shield. Gold-plated RJ45 contacts ensure reliable connectivity and corrosion resistance, while the snagless connector design protects the plug clip during installation and removal. The LSZH outer jacket enhances safety in enclosed or public spaces by producing less smoke and no halogenated gases when exposed to heat.

Suitable for

• Connecting switches, patch panels and wall outlets in offices and data closets
• High-bandwidth applications such as 10 Gigabit Ethernet and server links
• Network installations in schools, hospitals and public buildings where low-smoke materials are required
• Home networks and AV setups requiring reliable shielded cabling

Key specifications

• Cable length: 7 m
• Cable category: CAT6A (S/FTP)
• Conductor: full copper, AWG 26
• Shielding: S/FTP (individual foil around pairs + overall braided shield)
• Connectors: RJ45 to RJ45, snagless design
• Contacts: 50 µin gold-plated
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Testing: 100% tested; specifications verified by independent certification institute
• Colour: Red

How to use

Insert one RJ45 connector into the network port on your switch, router, patch panel or device and insert the other end into the destination port. Ensure connectors click into place and avoid bending the cable sharply near the connectors to maintain signal integrity. Keep the cable separated from high-voltage power lines and sources of strong electromagnetic interference where possible to preserve shielding effectiveness.

Recommendations

For best performance, route the cable using appropriate cable management to prevent kinks and compression. Use the CAT6A S/FTP cable for links requiring 10 Gbps or when additional protection against external interference is needed. Avoid running the cable parallel to unshielded power cables; where crossing is necessary, cross at a 90° angle. Replace or re-test any cable that shows physical damage or degraded connection quality.
