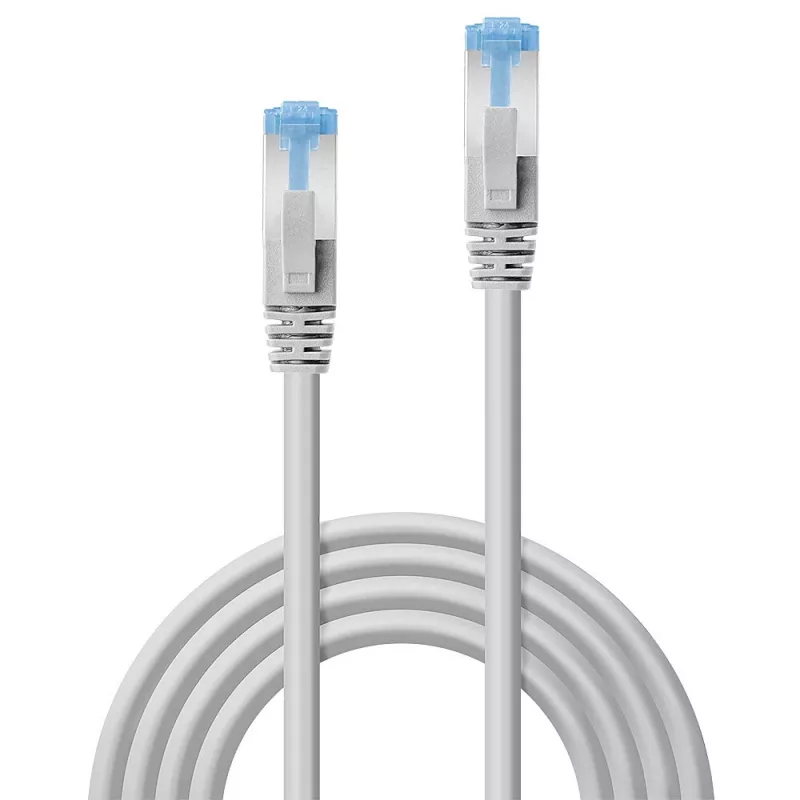

Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)

Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
60 mesigratis
Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
Lindy cavo di rete patch Cat.6A S/FTP LSZH – 3 m, da RJ-45 a RJ-45, grigio (47135)
8,66 €
PDF
PDF
Stock 44 Codice 898767 Modello 47135 Garanzia 5 anni

Spedizioni e resi

Consegna stimata venerdì 20 novembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

The Lindy 3m Cat.6A S/FTP LSZH Grey network cable is a shielded Ethernet cable designed for high-speed connections up to 10GBase-T and an operating frequency of up to 500 MHz. It uses overall braid shielding plus foil shielding around each wire pair (S/FTP) and is manufactured and tested to ISO/IEC 11801. The cable features gold-plated RJ-45 contacts and a snagless strain relief design. The LSZH (low smoke zero halogen) grey jacket reduces smoke and eliminates halogen emissions, making the cable suitable for indoor public installations.

Advantages

S/FTP construction provides improved protection against electromagnetic interference and crosstalk. Gold-plated RJ-45 contacts ensure reliable, corrosion-resistant connections. The snagless strain relief reduces the risk of damage to the connector latch during installation and removal. The LSZH sheath minimises smoke and toxic halogen release in case of fire, making the cable appropriate for environments where reduced emissions are required.

Suitable for

  • High-speed office and data centre networks requiring up to 10 GBase-T
  • Indoor public spaces and installations with low-smoke/low-halogen requirements
  • Patch panels, switches and network devices using RJ-45 connections

Key specifications

  • Length: 3 m
  • Category: Cat.6A, S/FTP (braid overall + foil per pair)
  • Frequency: up to 500 MHz
  • Standards: 10GBase-T support, manufactured/tested to ISO/IEC 11801
  • Connectors: RJ-45 to RJ-45, gold-plated contacts
  • Sheath: LSZH (low smoke zero halogen), colour: Grey
  • Cabling technology: 10/100/1000Base-T(X)

How to use

Connect one RJ-45 end to a network device (switch, router or NIC) and the other end to the corresponding port on the connected device or patch panel. Avoid sharp bends and excessive pulling; use the snagless strain relief to protect the connector latch during insertion and removal. Route the cable away from strong electromagnetic sources where possible to maintain signal integrity.

Recommendations

Use this Cat.6A S/FTP LSZH cable for in-building cabling where up to 10 GBase-T performance is required and where low smoke and halogen-free materials are preferred. For best performance, follow installation standards for bend radius and cable grouping as specified in ISO/IEC 11801.
Punti salienti
  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, LSZH

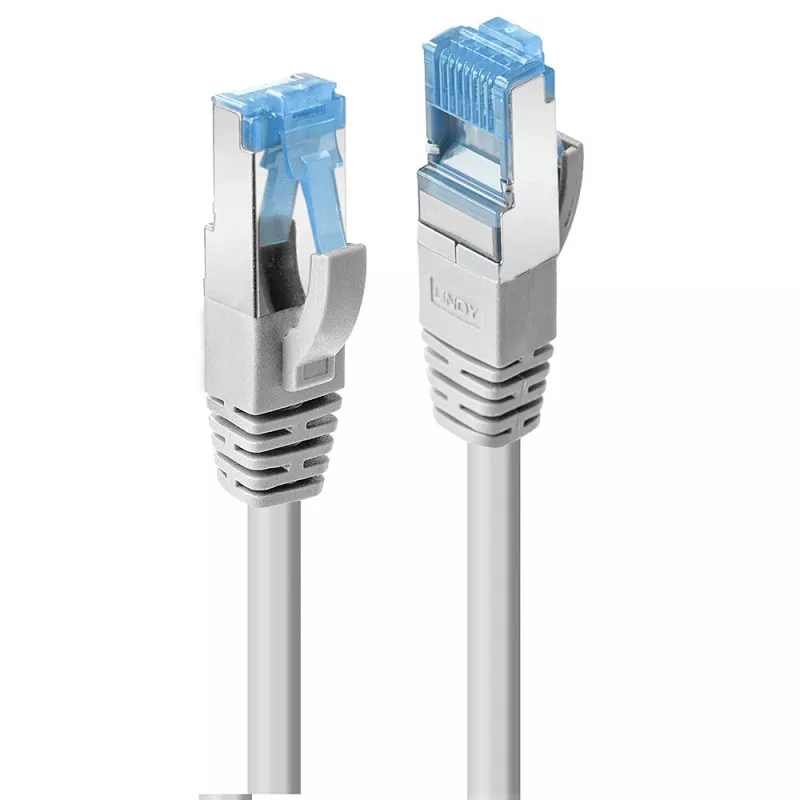

  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 3 m
  • RJ-45 Male
  • RJ-45 Male
  • Cat6a S/FTP (S-STP)
  • 1000 Mbit/s
  • Grey

Specifiche

Specifiche
Attenuazione nominale
49,3 dB/100 m a 500 MHz
Certificazione
RoHS, REACH, UL
Codice Sistema Armonizzato (HS)
84733080
Colore del prodotto
Grigio
Connettore 1
RJ-45
Connettore 1 maschio/femmina
Maschio
Connettore 2
RJ-45
Connettore 2 maschio/femmina
Maschio
Diametro esterno
6 mm
Dimensioni connettore 1 (LxPxA)
11.6 x 21.5 x 8.3 mm
Dimensioni connettore 2 (LxPxA)
11.6 x 21.5 x 8.3 mm
Forma del cavo
Rotonda
Frequenza
500 MHz
Lunghezza del cavo
3 m
Materiale del conduttore
Rame
Materiale della guaina
A bassa emissione di fumi, zero alogeni (LSZH)
Materiale schermatura connettore
Alluminio
Placcatura dei contatti del connettore
Nickel/Gold
Quantità per confezione
1 pc(s)
Raggio di curvatura (min.)
7.2 cm
Schermatura connettore
Sì
Schermatura del cavo
S/FTP (S-STP)
Sezione del conduttore (AWG)
27
Standard del cavo
Cat6a
Tecnologia di cablaggio
10/100/1000Base-T(X)
Temperatura di esercizio (T-T)
-10 - 60 °C
Temperatura di stoccaggio (T-T)
-20 - 75 °C
Tipo di imballaggio
Sacchetto di plastica
Velocità di trasferimento dati
1000 Mbit/s

Brochure

Apri documento
