Adam Hall 5416 BLK vite a macchina Phillips a testa bombata M6x20 mm nero

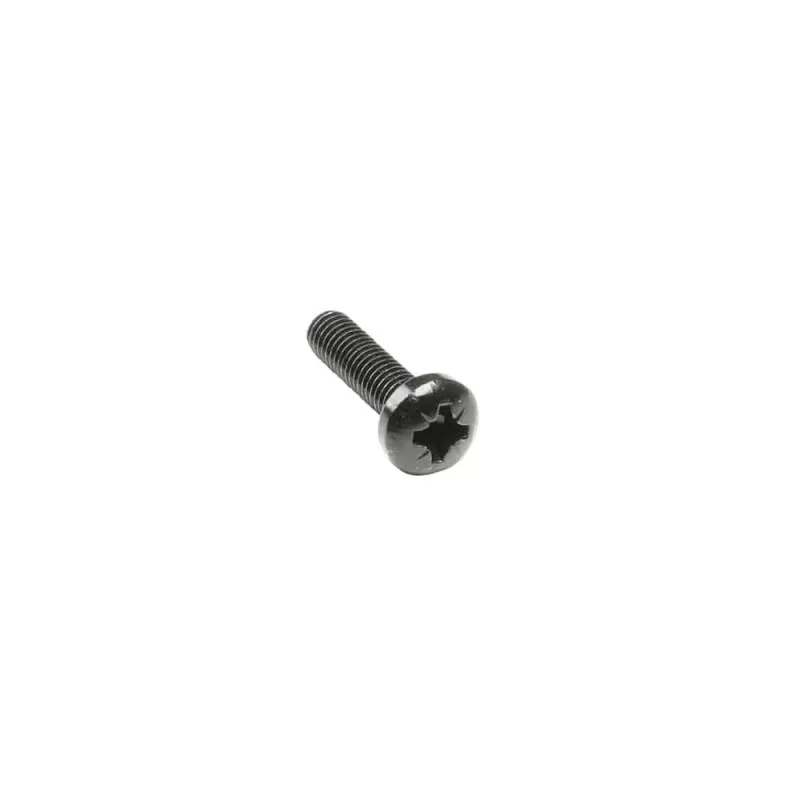

The Adam Hall 5416 BLK is a high-quality Phillips pan head machine screw, designed for reliable fastening in a variety of applications. With a thread diameter of M6 and a length of 20 mm, this screw is ideal for general purpose fastening, equipment mounting, and rack installation. The black finish provides a sleek appearance and standard corrosion resistance.

Advantages

This screw offers a secure and durable connection thanks to its steel construction and coarse thread pitch of 1.0 mm. The Phillips drive type ensures easy installation with standard tools, while the pan head design provides a low profile and a clean finish.

Suitable for

• General purpose fastening
• Equipment mounting
• Rack installation
• M6 threaded holes and nuts

Key specifications

• Thread Diameter: M6
• Length: 20 mm
• Head Type: Pan Head
• Drive Type: Phillips (PH)
• Material: Steel
• Finish: Black
• Thread Pitch: 1.0 mm
• Standard: DIN 7985 (ISO 7045 equivalent)
• Head Diameter: Approx. 11.2 mm
• Head Height: Approx. 4.2 mm
• Drive Size: PH2

Recommendations

For best results, use with a matching M6 nut or threaded hole. Ensure the screw is tightened to the appropriate torque for your application.
