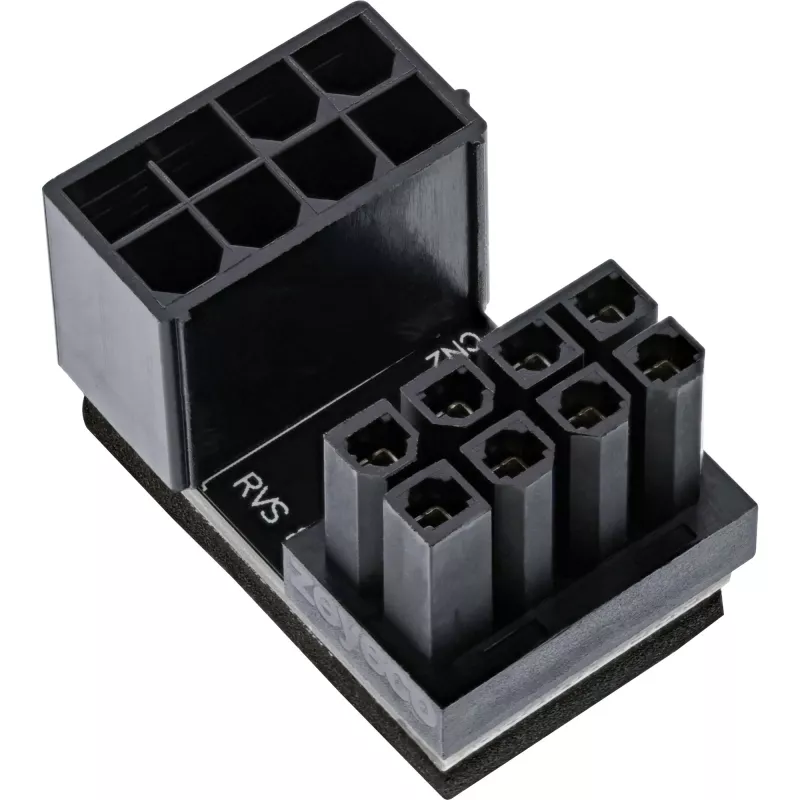

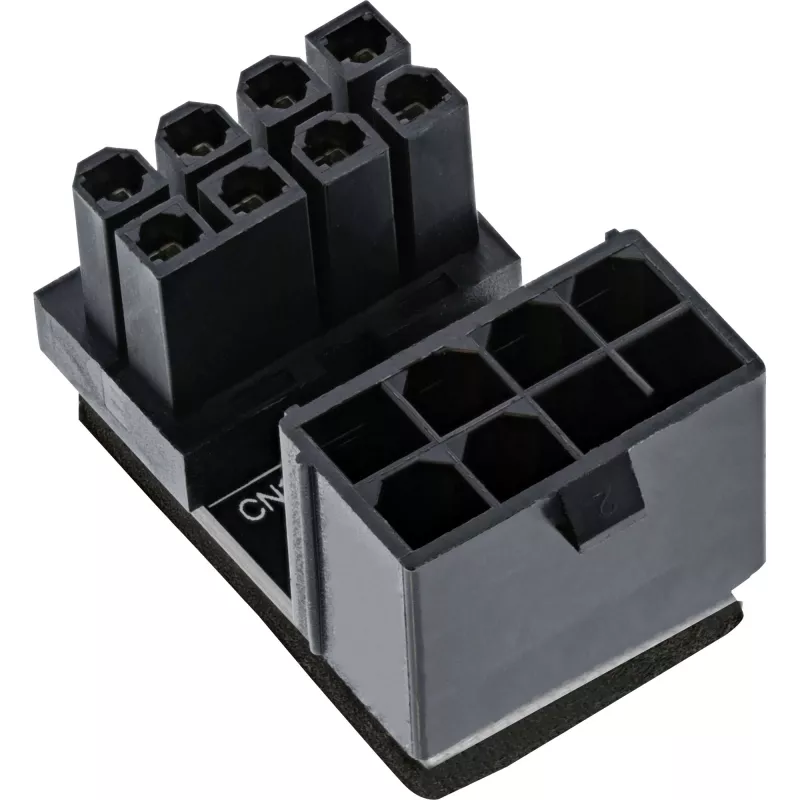

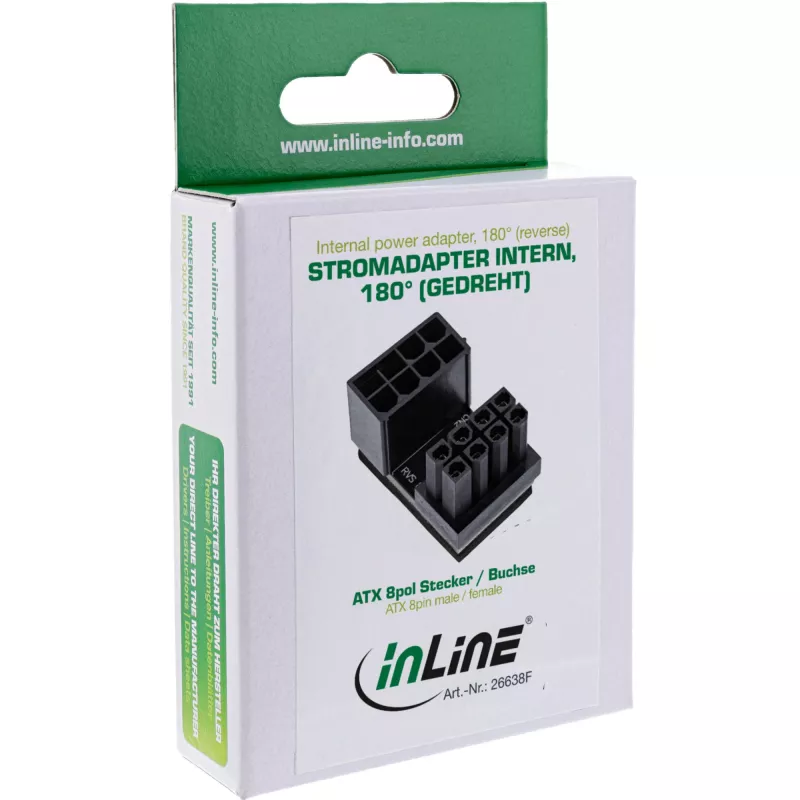

Adattatore di alimentazione interno InLine, connettore/spina ATX 8-Pin 180° (Reverse)

The InLine Internal power adapter 180° ATX 8pin male female reverse provides a turned 180° ATX 8‑pin (PCIe) internal power connection for graphics cards. It is designed to reroute the internal ATX/PCIe power cable so the connector exits in the opposite direction, enabling neater cable routing and installation in confined spaces while maintaining the standard 8‑pin power interface. The adapter is black and intended for internal use inside PC cases.

Advantages

This turned 180° male‑to‑female adapter enables flexible cable orientation without modifying the original cables or connectors. It helps improve cable management and can assist in preserving airflow paths by allowing a cleaner routing of the 8‑pin PCIe power lead. The adapter maintains the standard pin coding and orientation; users should verify connector coding and orientation for compatibility before installation.

Suitable for

• Reorienting an internal 8‑pin PCIe power connection to fit tight cases
• Improving cable management behind graphics cards
• Maintaining airflow by rerouting power cables away from fans or components

Key specifications

• Type: Internal ATX/PCIe power adapter (male to female, reversed)
• Connector: 8‑pin ATX/PCIe
• Orientation: 180° turned/reverse
• Use: Internal PC case use for graphics card power connection
• Colour: Black
• Brand: InLine
• MPN: 26638F
• EAN: 4043718303106

How to use

Power off the PC and unplug it from mains power. Open the case and locate the existing 8‑pin PCIe power cable intended for the graphics card. Connect the male end of the adapter to the power cable coming from the power supply or cable harness, and then connect the female end of the adapter to the graphics card’s 8‑pin socket. Ensure the pin coding and latch orientation match before applying power. Close the case and restore power.

Recommendations

Verify connector pin coding and orientation prior to installation and do not force connectors. Use this adapter only for internal ATX/PCIe 8‑pin graphics card power connections and ensure the adapter and cables are rated for the required current of your GPU.
