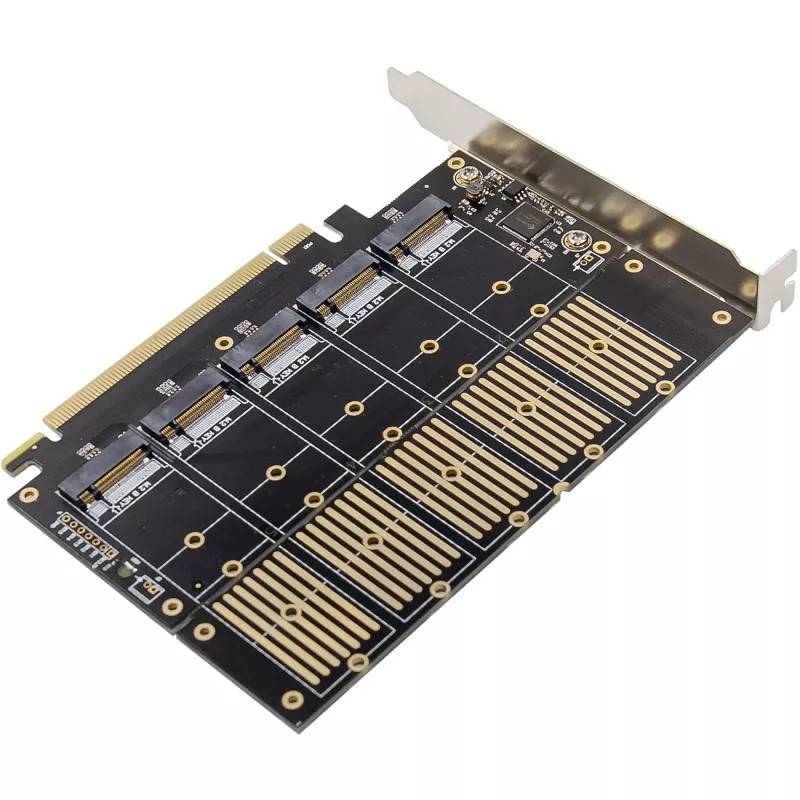

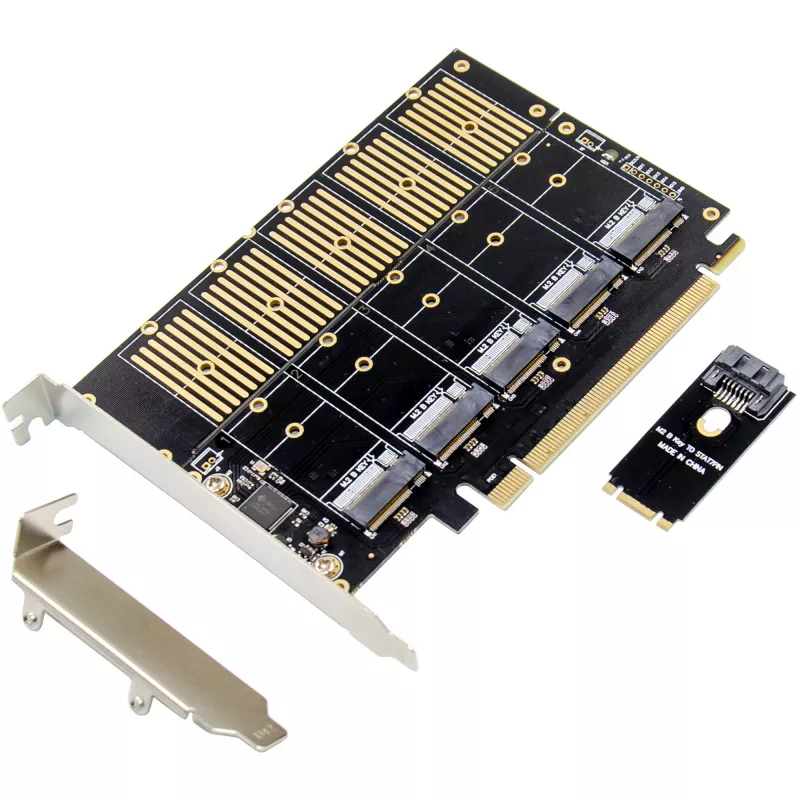

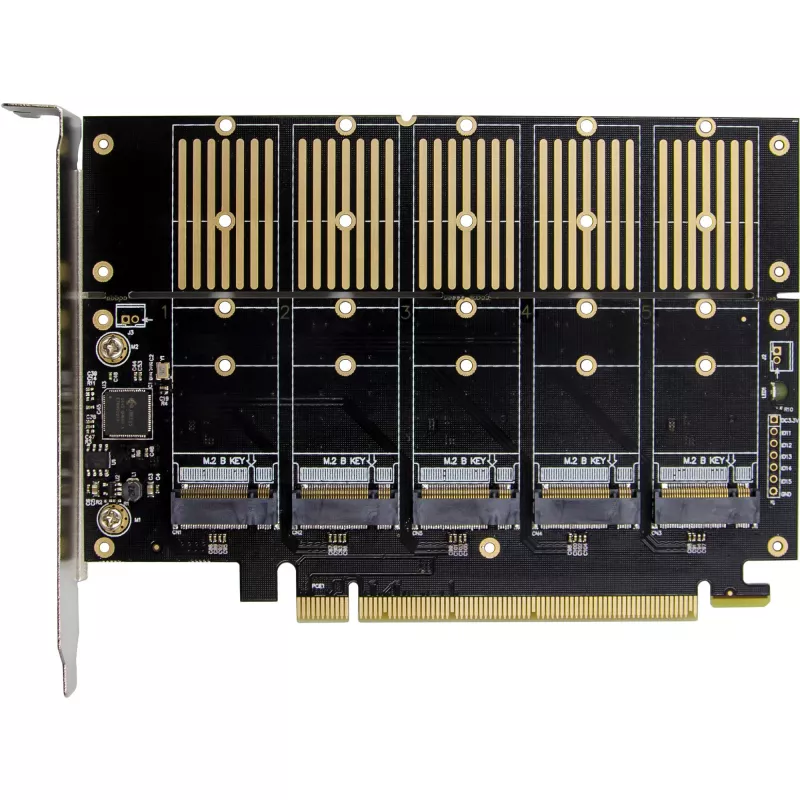

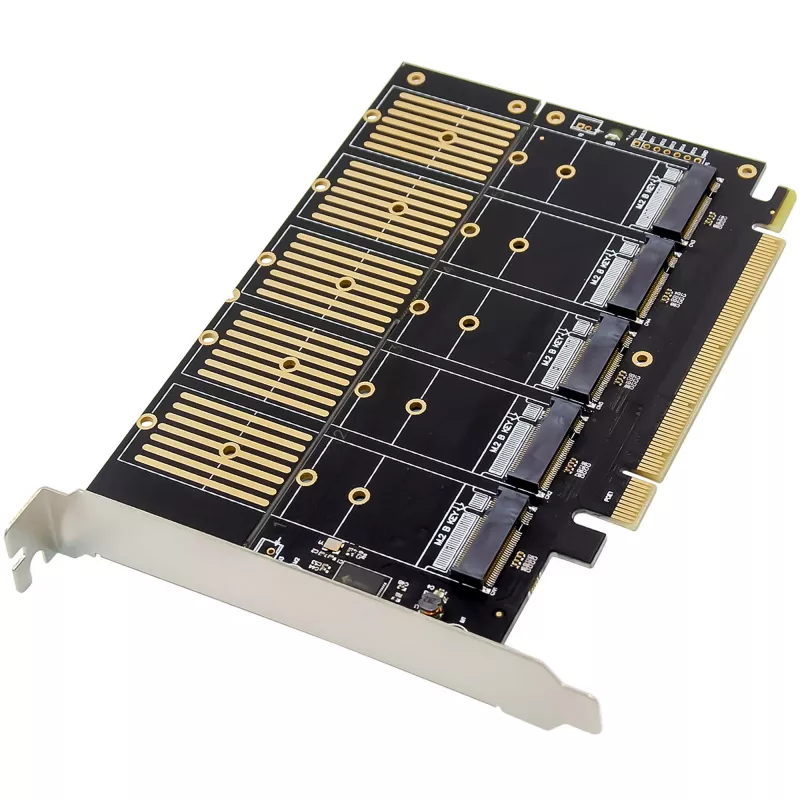

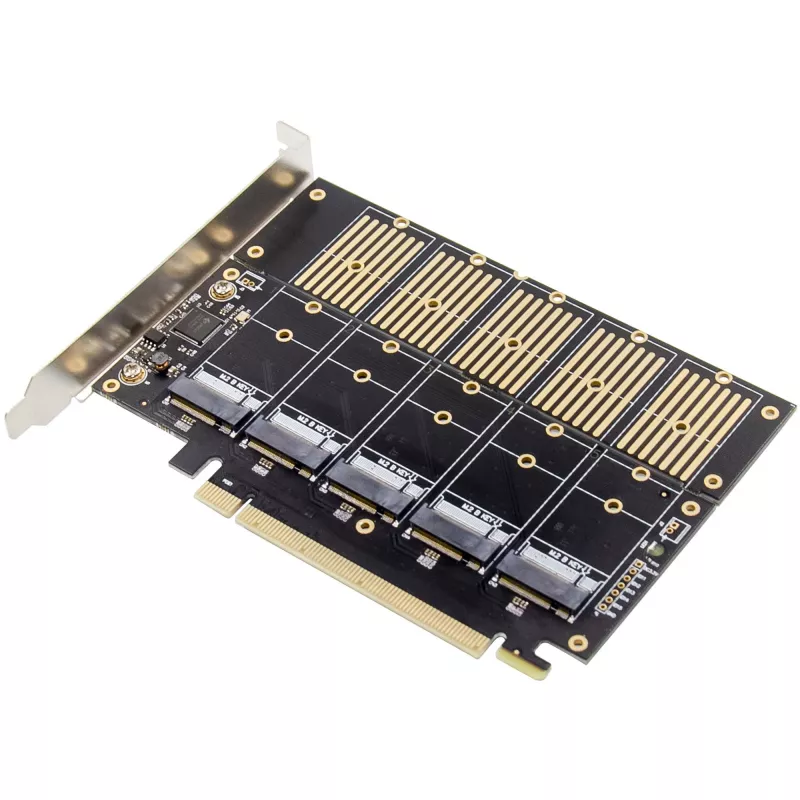

InLine 76619G Scheda di interfaccia, da PCIe x16 a 5x M.2 Key B SATA, staffa Low-Profile inclusa

The InLine 76619G is a PCIe x16 interface card that adds up to five SATA ports via M.2 Key B adapter cards. It supports M.2 SATA SSDs in 2230, 2242, 2260, and 2280 form factors and delivers up to 6 Gb/s per port according to SATA Revision 3.2. The card includes a low-profile bracket and comes with five M.2-to-SATA adapters, heat sinks, cables, and a screwdriver.

Key features

• Adds up to five SATA ports via M.2 Key B adapter cards
• Supports M.2 B-Key and B+M-Key SSDs in 2230, 2242, 2260, and 2280 form factors
• Up to 6 Gb/s per port according to SATA Revision 3.2
• Supports AHCI, NCQ, port multiplier (Command/FIS), staggered boot, and power-saving modes

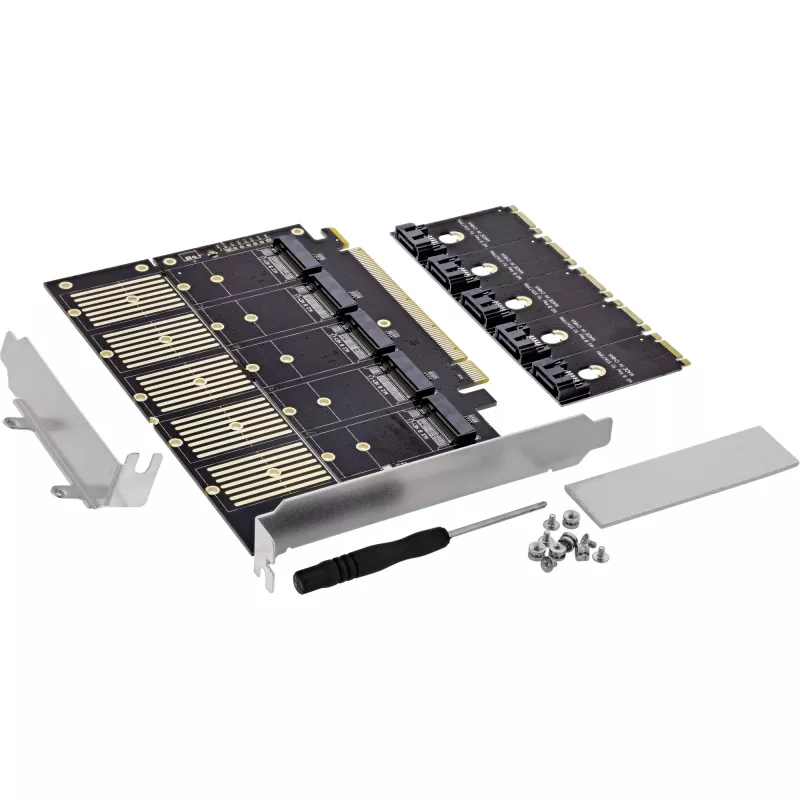

• Includes five M.2-to-SATA adapters, heat sinks, cables, low-profile bracket, and screwdriver

Specifications

• Brand: InLine
• MPN: 76619G
• Interface: SATA III
• PCIe standard: PCIe v3.1a, up to 2 PCIe lanes usable
• Interface: PCIe x16 lane
• SATA standard: SATA 6 Gb/s, SATA Revision 3.2
• Connections: 5x M.2 Key B ports (via expansion cards)
• Compatible SSD types: M.2 B-Key and B+M-Key (2230 / 2242 / 2260 / 2280)
• Transfer rate: up to 6 Gb/s per port
• Chipset: JMB585
• Port multiplication: Supported (command and FIS-based)
• AHCI mode: Supported
• Native Command Queue (NCQ): Supported
• SATA power-saving features: Supported (partial / slumber)
• Staggered boot: Supported
• Operating temperature: 0 °C to 55 °C
• Storage temperature: -40 °C to 70 °C
• Maximum humidity: 90%, non-condensing
• Supported operating systems: Windows 7 / 8 / 8.1 / 10 / 11, Linux
• Scope of delivery: 1x InLine PCIe x16 interface card, 5x M.2 Key B SATA, 1x low-profile slot bracket, 5x M.2 Key B to SATA expansion card, 5x SATA cables, 5x heat sinks, 5x screws, 1x screwdriver, 1x user manual in German/English
• Low Profile: Yes
• Connections external: None
• RAID:
