Adattatore InLine HDMI a DVI connettore maschio / 24+1 connettore femmina dorato, 4K2K

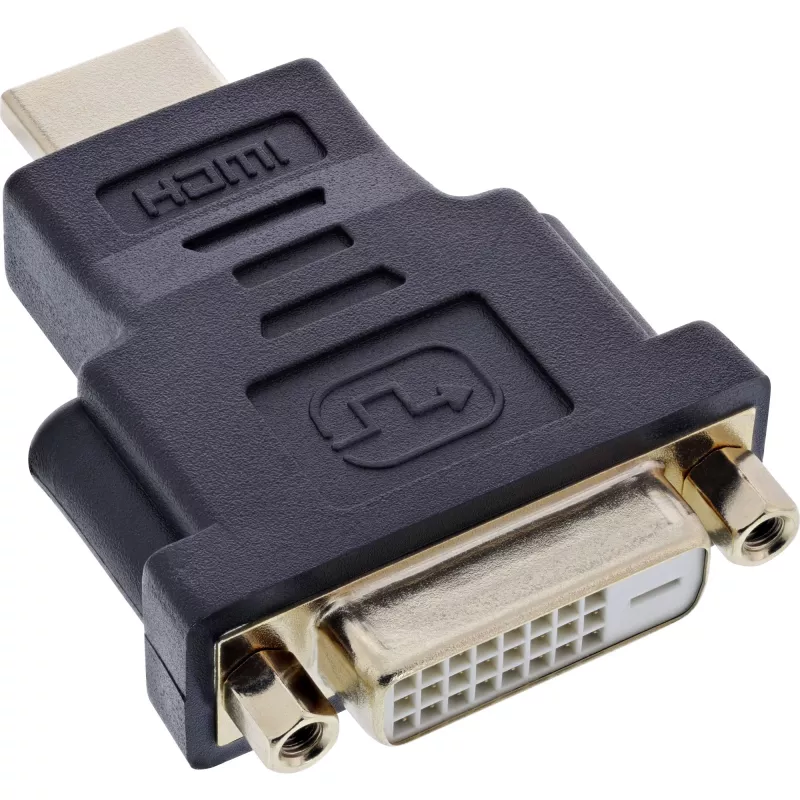

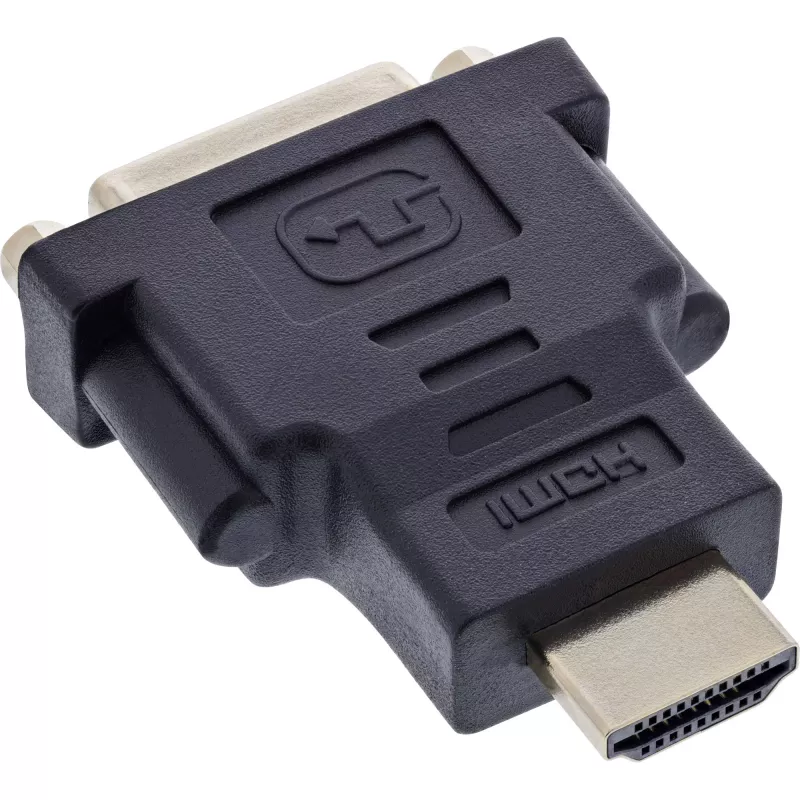

The InLine HDMI to DVI Adapter provides a compact solution to connect an HDMI source to a DVI-D display. It features an HDMI male plug and a DVI 24+1 (DVI-D) female socket with gold-plated contacts and supports video signals up to 4K2K@30Hz. The adapter’s black finish and sturdy construction make it suitable for desktop and AV setups that require a reliable HDMI-to-DVI interface.

Advantages

Gold-plated contacts improve signal transmission and resist corrosion, while the DVI 24+1 female format ensures compatibility with DVI-D displays. The small, passive adapter requires no power and supports high-resolution video up to 4K2K@30Hz, offering a simple way to connect HDMI-equipped sources to DVI monitors or projectors.

Suitable for

• Connecting HDMI sources (laptops, media players, graphics cards) to DVI-D monitors or projectors
• Desktop and home AV setups where a short, passive HDMI-to-DVI conversion is needed
• Temporary or permanent connections in offices, classrooms, and presentation environments

Key specifications

• Connector 1: DVI-D female (24+1)
• Connector 2: HDMI male
• Contact plating: Gold
• Resolution support: up to 4K2K@30Hz
• Colour: Black
• Brand: InLine, MPN: 17670P, EAN: 4043718097180

How to use

Insert the HDMI male plug into the HDMI output of your source device and connect a DVI-D cable from the DVI-D female socket on the adapter to the display. Ensure both devices are powered on and set the display input to the connected DVI port. No drivers or external power are required; the adapter performs a passive signal mapping from HDMI to DVI-D.

Recommendations

Use short, high-quality DVI-D cables for best signal integrity at higher resolutions. Note that this adapter transmits video only; for audio, use a separate audio connection or an HDMI-equipped display.
