Adattatore interno parallelo RS-232 Mini PCI Express DeLOCK 95277 verde

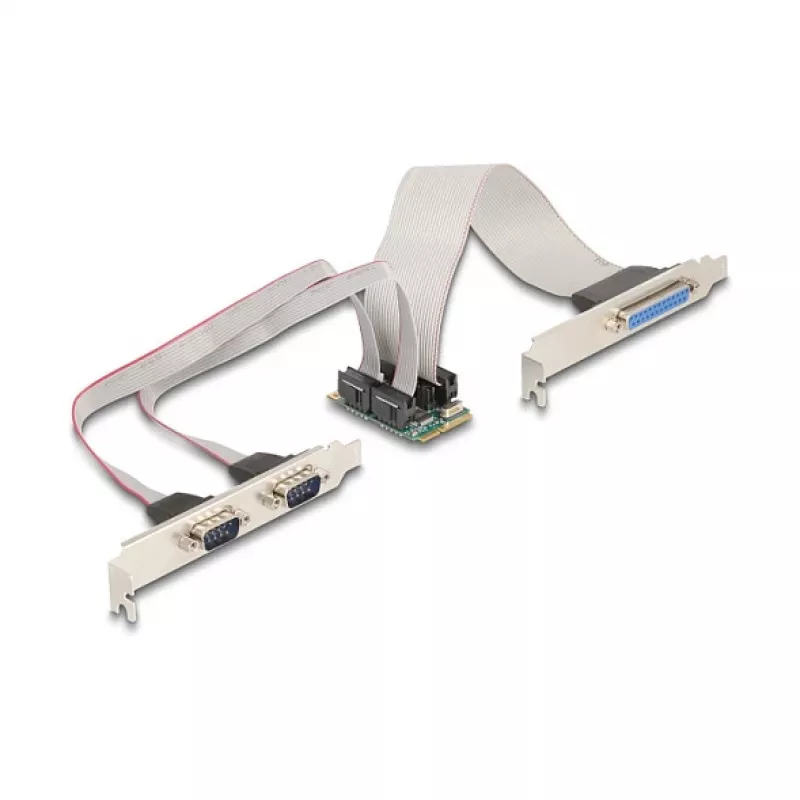

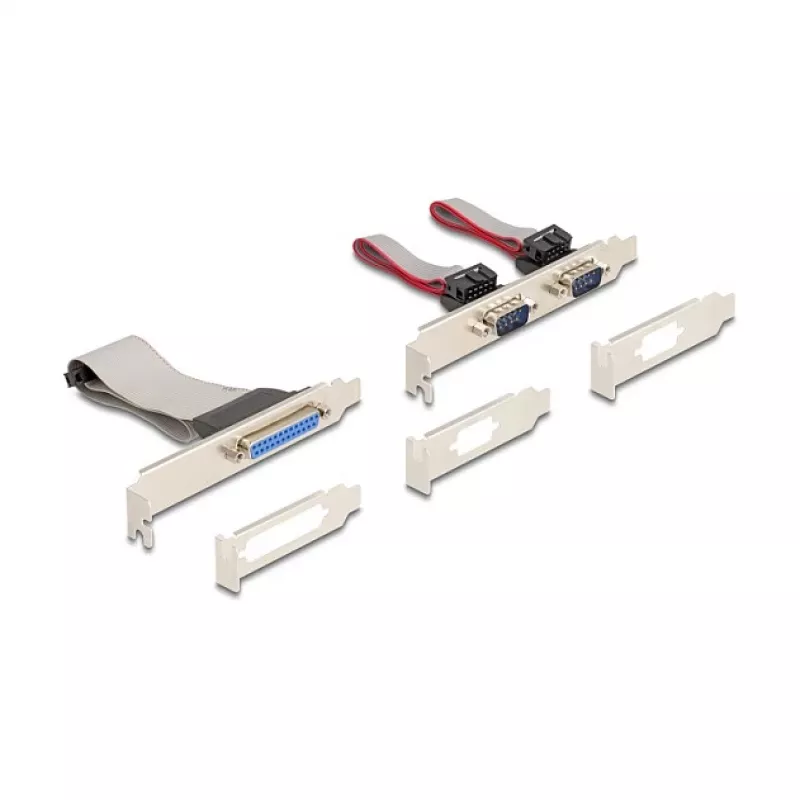

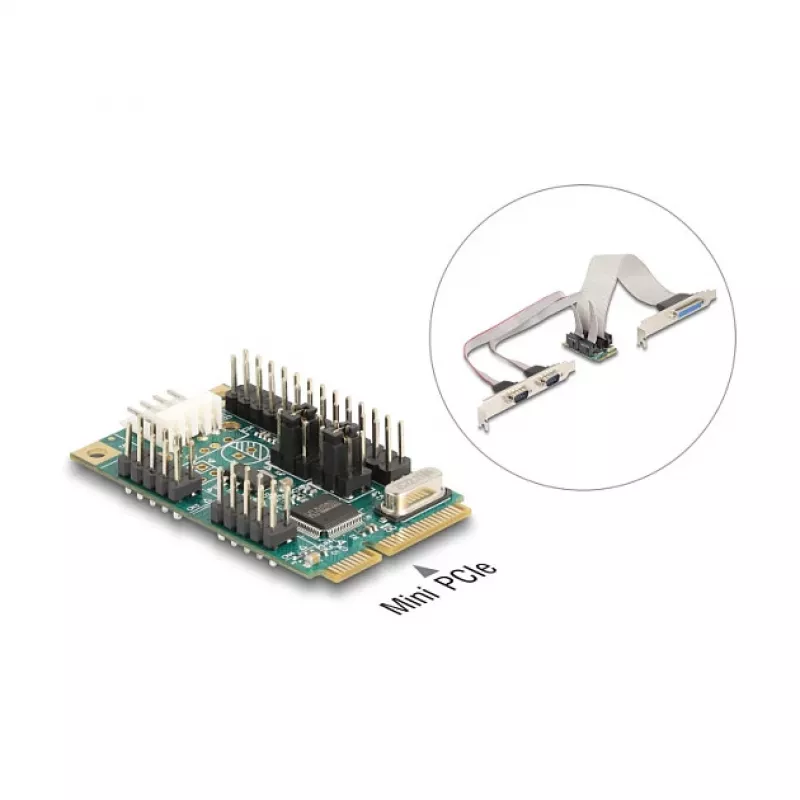

The DeLOCK 95277 internal Mini PCI Express adapter provides two RS-232 serial ports and one parallel port routed to a slot bracket, allowing connection of devices such as printers, scanners and modems. The module is compact, fits into a Mini PCIe slot and is finished in green. Optional voltage supply of 5 V or 12 V for connected devices is supported via RS-232.

Advantages

The adapter offers a small form factor and direct internal installation into a Mini PCI Express slot, delivering legacy interfaces (parallel and RS-232) without occupying external ports. It supports optional 5 V or 12 V supply through RS-232 lines and is compatible with common Windows operating systems, enabling straightforward integration into existing systems that require serial or parallel connectivity.

Suitable for

Key specifications

How to use

Install the DeLOCK 95277 into an available Mini PCIe slot on the host motherboard following the system manufacturer’s antistatic and installation guidelines. Route the bracketed cable or connector to the chassis slot so the parallel and RS-232 ports are accessible externally. Connect target devices (printer, scanner, modem, etc.) to the corresponding ports and, if required, enable the optional 5 V or 12 V supply for devices that need external power via RS-232 according to the device specifications.

Recommendations

Verify driver availability for your operating system (Windows 10/11/Server 2022) before installation, and confirm that any device requiring external power via RS-232 supports the selected 5 V or 12 V level to avoid damage.
