Adattatore M.2 interno DeLOCK 62590 SATA 6 Gbit/s RAID 0 1 JBOD

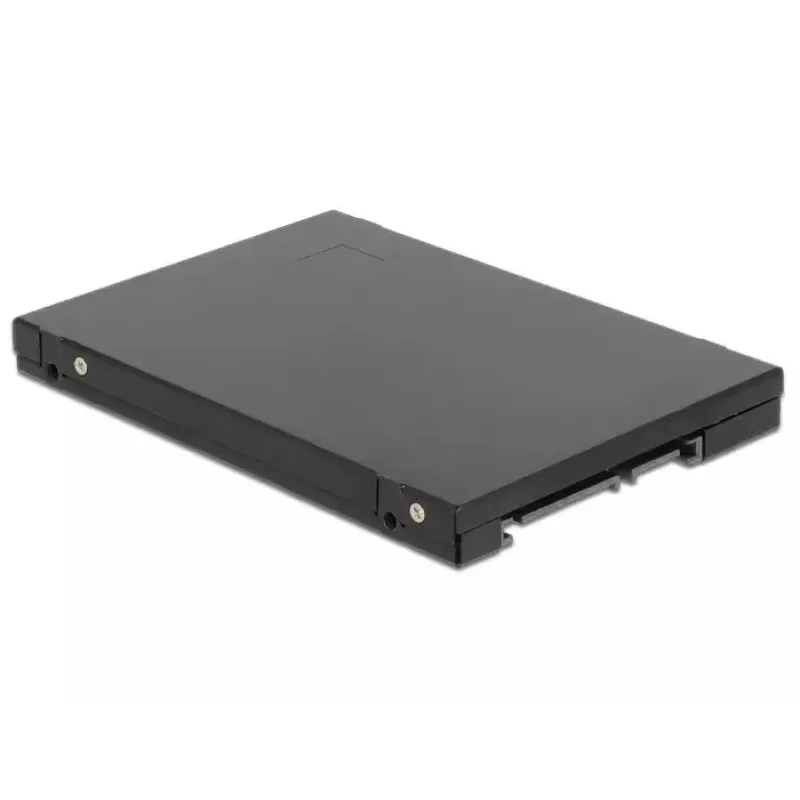

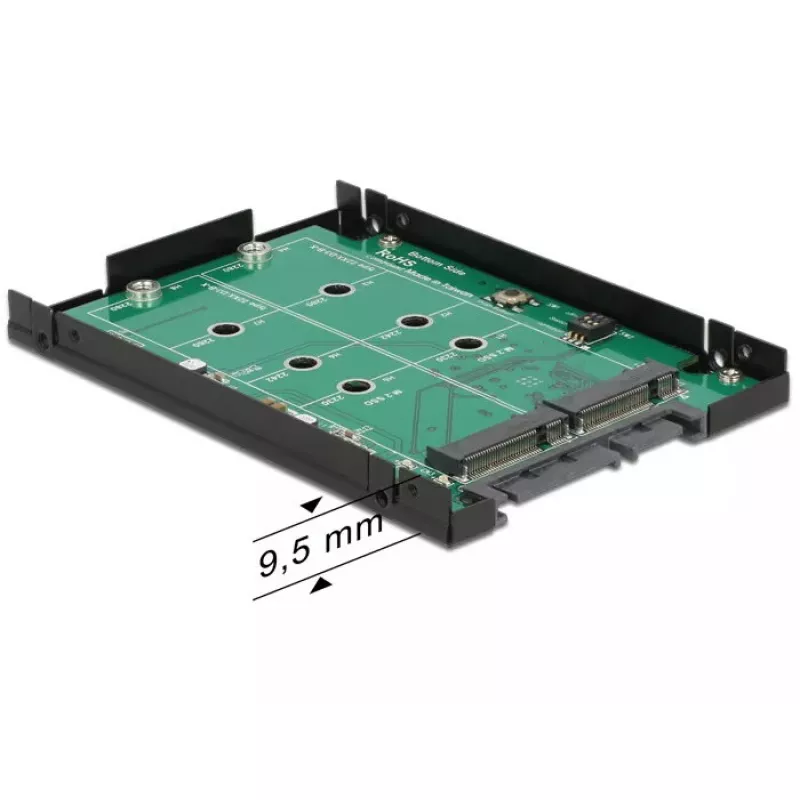

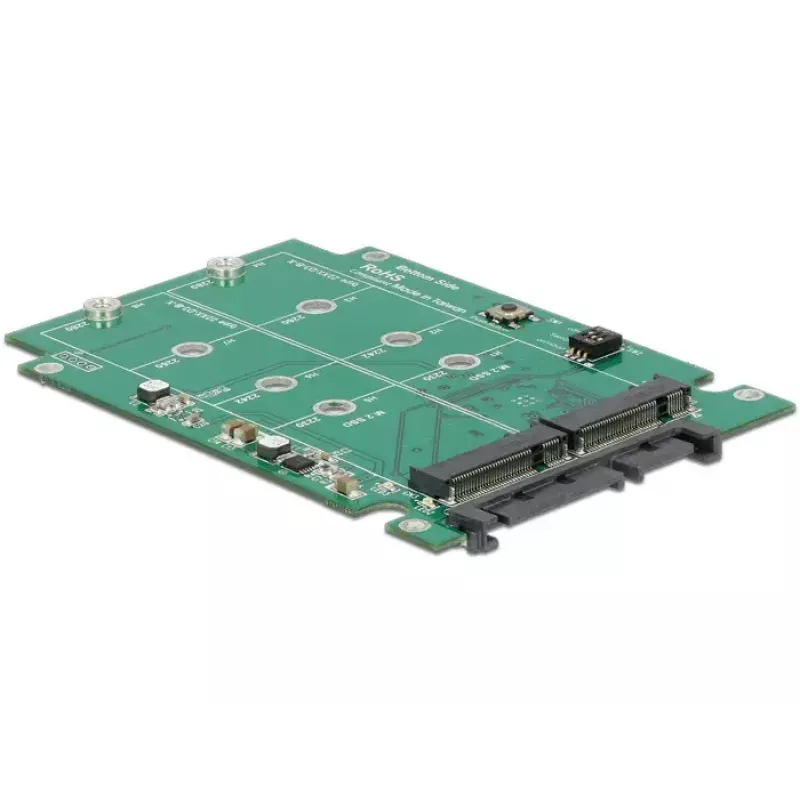

This DeLOCK adapter allows installation of up to two M.2 NGFF SSDs (sizes 2280, 2260, 2242 or 2230) and presents them to the host system as a single 2.5" HDD device via an internal SATA 22‑pin interface. The adapter supports SATA transfer rates up to 6 Gbit/s and offers RAID 0, RAID 1 and JBOD modes for combining or mirroring the connected drives.

Advantages

The adapter accepts two M.2 SSDs in commonly used form factors and converts them for use on a standard internal SATA connection. Support for RAID 0, RAID 1 and JBOD provides options for increased performance, redundancy or independent drive access. Compatibility with SATA 6 Gbit/s ensures the interface does not limit modern SSD throughput when used in compatible systems.

Suitable for

• Adding or expanding internal storage using M.2 SSDs via an available SATA port
• Improving sequential throughput using RAID 0 with two SSDs
• Providing redundancy with RAID 1 for critical data
• Using two SSDs independently with JBOD configuration

Key specifications

• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Interface to host: internal SATA 22‑pin
• SATA data rate: up to 6 Gbit/s
• Supported RAID modes: 0 (stripe), 1 (mirror), JBOD
• Number of M.2 SSD slots: 2 (NGFF)

How to use

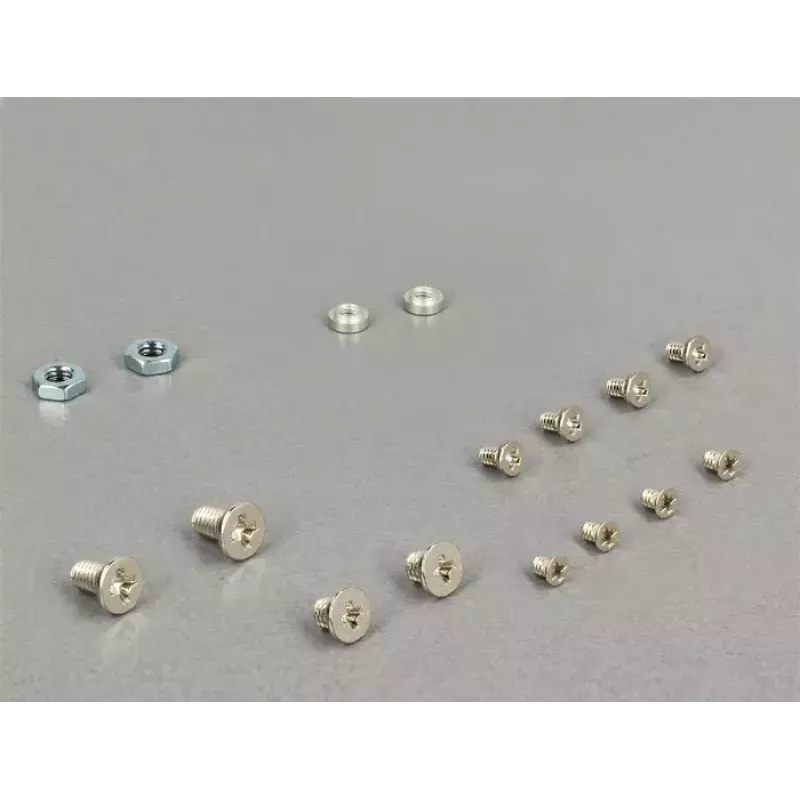

Install up to two M.2 NGFF SSDs of the supported lengths into the adapter slots and secure them according to the adapter's mounting points. Connect the adapter to your system's internal SATA 22‑pin header and provide power as required by your system. Configure the desired RAID mode (RAID 0, RAID 1 or JBOD) in your system's BIOS/UEFI or RAID management utility before initializing or formatting the presented 2.5" logical drive.

Recommendations

For optimal results, use SSDs with similar capacity and performance when configuring RAID 0 or RAID 1. Ensure your motherboard or controller supports SATA 6 Gbit/s and the selected RAID mode; back up important data before changing RAID configurations.
