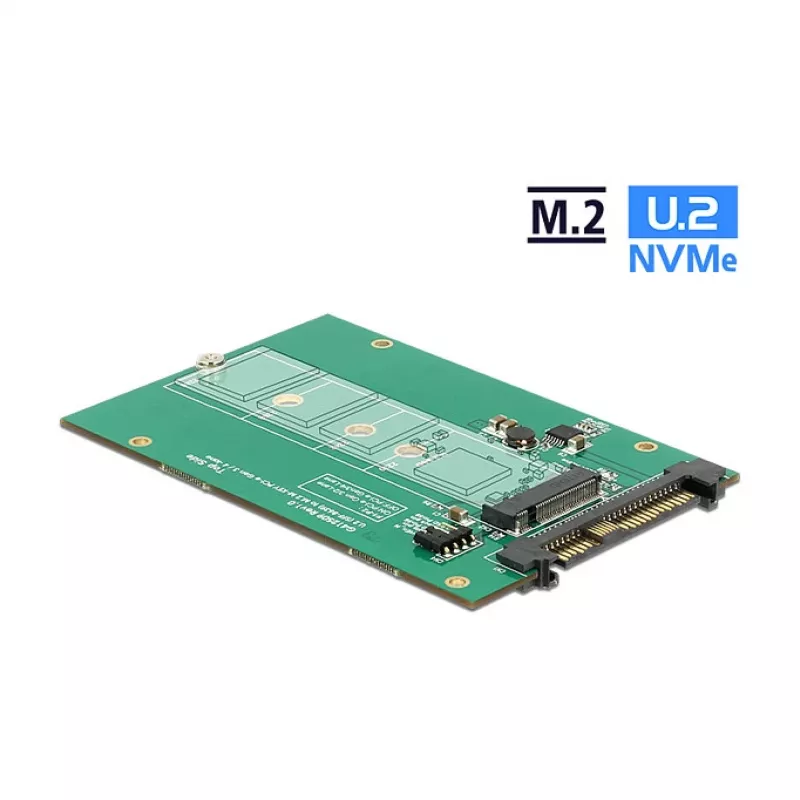

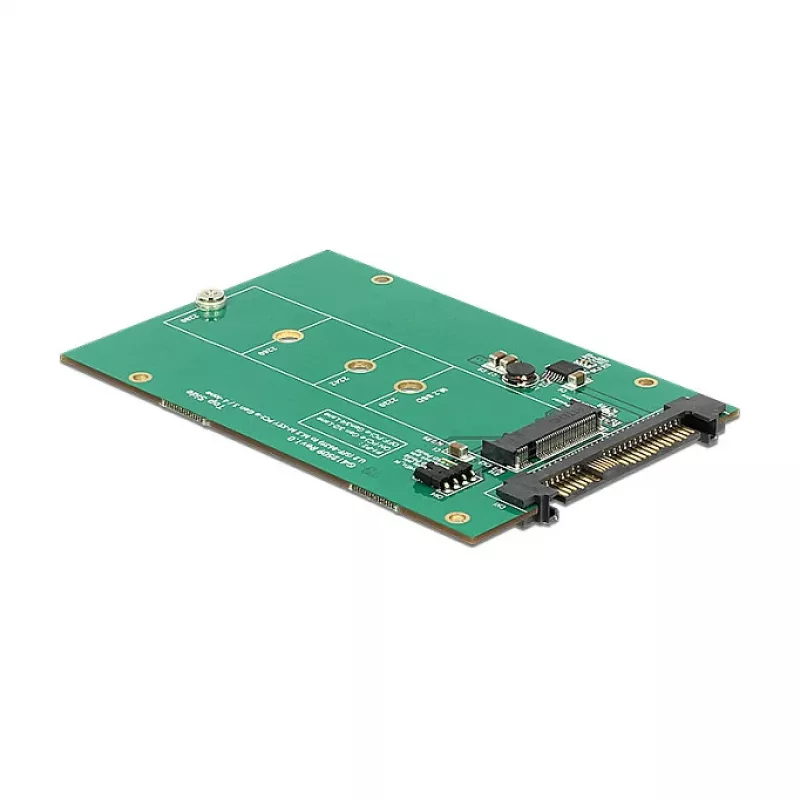

Adattatore M.2 interno DeLOCK 62696

This DeLOCK 62696 internal M.2 adapter allows installation of an M.2 NGFF SSD in 2280, 2260, 2242 and 2230 sizes into a system via a U.2 68-pin interface. The compact adapter provides a simple way to add an M.2 drive to systems that offer a U.2 internal connector.

Advantages

The adapter supports multiple M.2 form factors (2280/2260/2242/2230) and connects internally through a standardized U.2 68-pin interface. It is designed for low power consumption (typical 13.2 W) and has compact dimensions (100 mm x 65 mm x 7 mm), enabling installation in a variety of system environments.

Suitable for

• Adding an M.2 NGFF SSD to a desktop or server with a U.2 internal connector
• Upgrading storage in systems that lack native M.2 sockets but have U.2 support
• Testing or swapping different M.2 SSDs in systems with U.2 ports

Key specifications

• Brand: DELOCK
• Model: 62696
• Interface: U.2 68-pin (internal)
• Supported M.2 sizes: 2280, 2260, 2242, 2230 (NGFF)
• Typical power consumption: 13.2 W
• Dimensions (W x D x H): 100 mm x 65 mm x 7 mm
• Category: HDD and SSD disks accessories
• MPN: 62696
• EAN: 4043619626960

How to use

Mount the compatible M.2 NGFF SSD into the adapter, secure it according to the drive length using the appropriate standoff or screw, and install the adapter into the system's internal U.2 connector. Ensure the system is powered off before installation and that the SSD is properly seated and fastened to avoid contact issues.

Recommendations

Use this adapter in systems with a U.2 internal port and verify BIOS/UEFI and operating system compatibility. Handle the M.2 SSD and adapter with proper electrostatic discharge (ESD) precautions and consult your system documentation for correct installation orientation and mounting points.
