Adattatore M.2 interno DeLOCK 62792

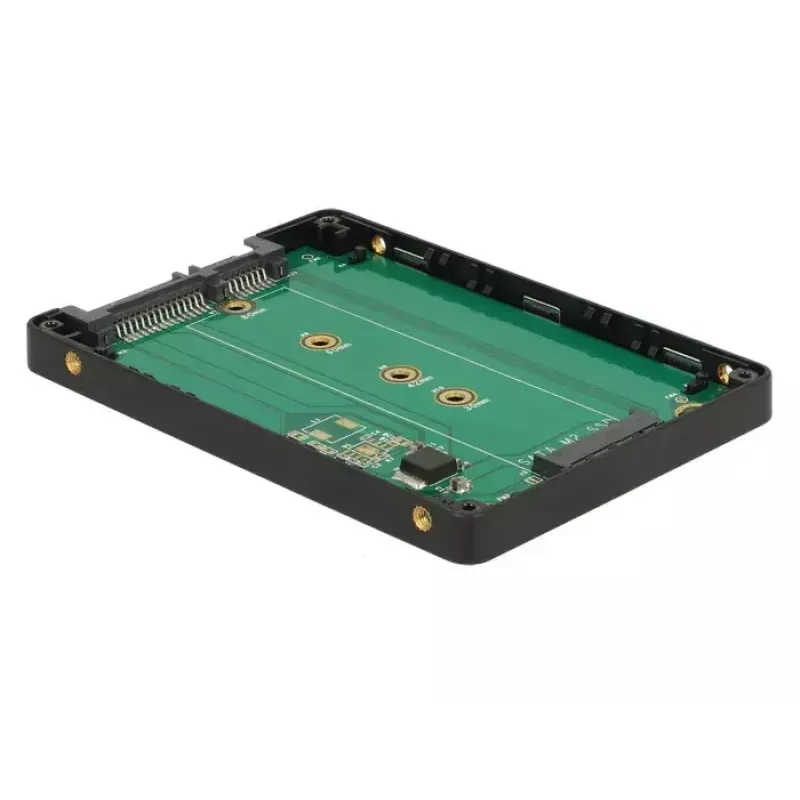

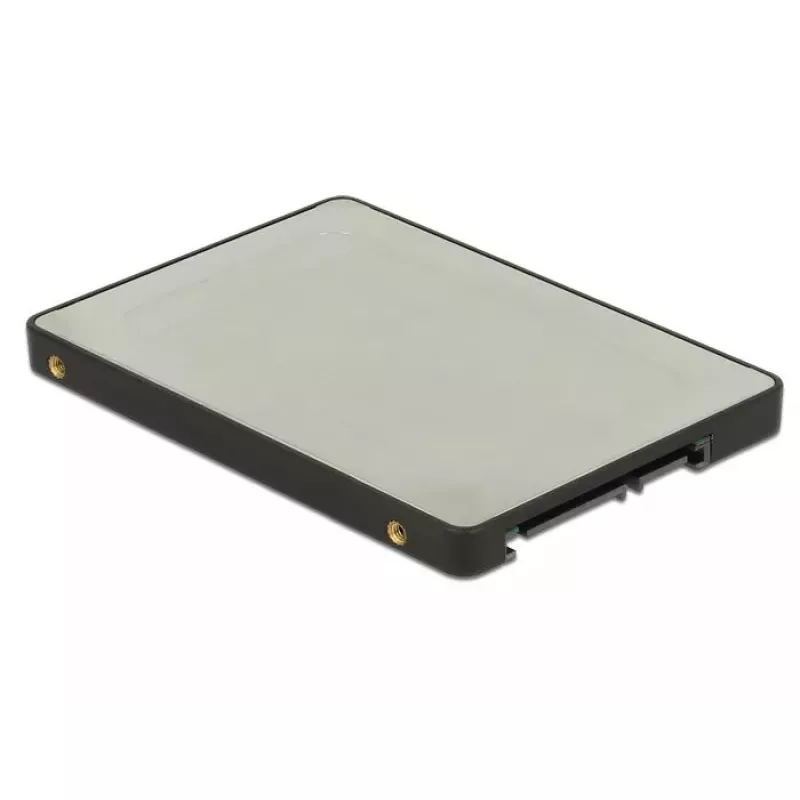

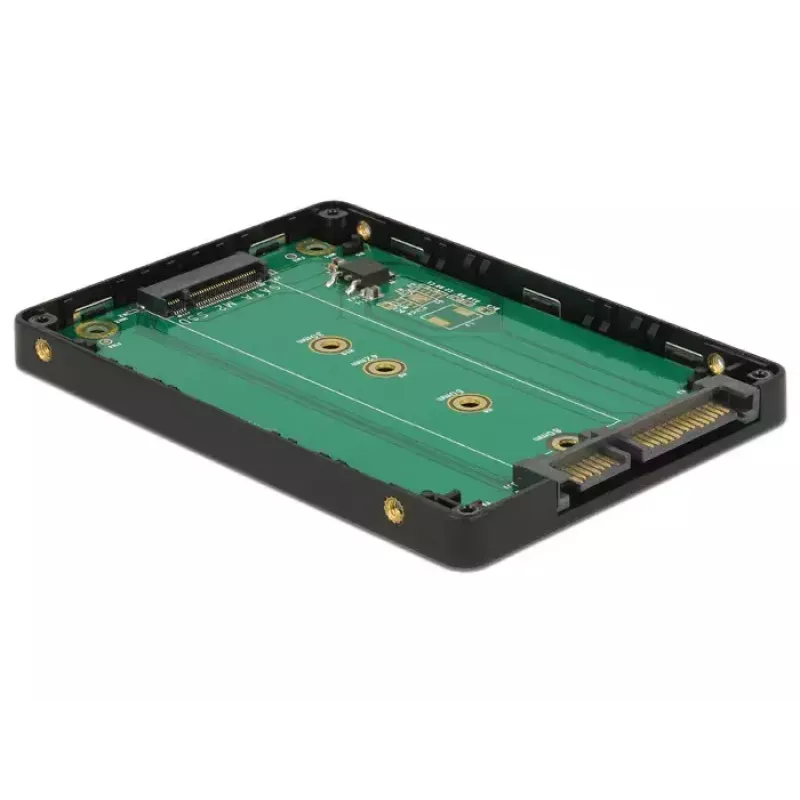

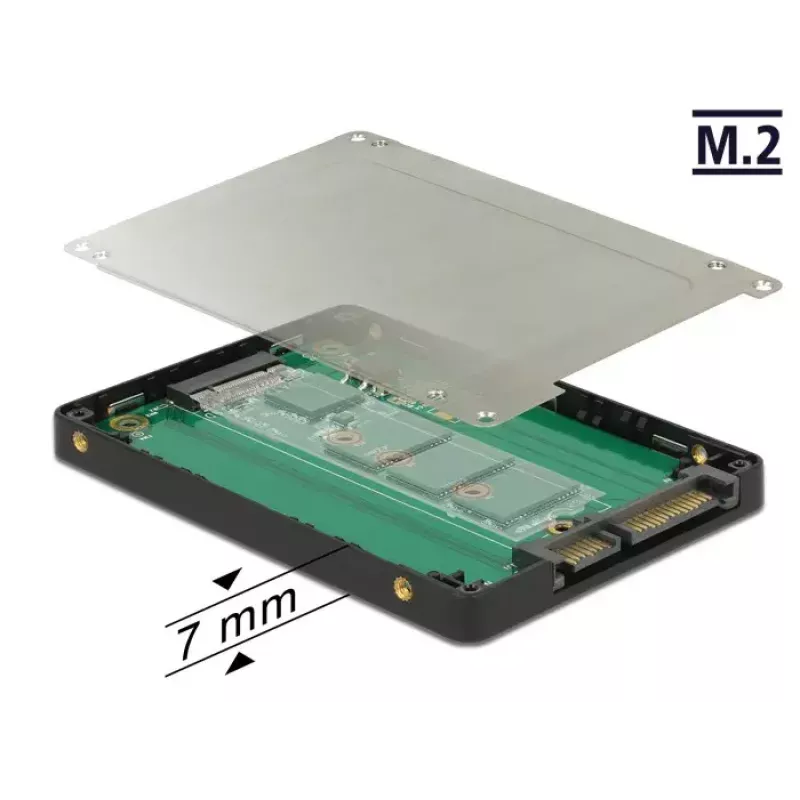

This Delock converter enables installation of an M.2 SSD in sizes 2280, 2260, 2242 and 2230 into a system using a standard 2.5" drive bay. The adapter connects internally via a SATA 22 pin interface and provides a SATA host interface with a maximum data transfer rate of 6 Gbit/s. The device has a compact form factor (70 mm × 100 mm × 8 mm) and is finished in silver and black.

Advantages

The Internal M.2 Adapter DeLOCK 62792 allows mounting various M.2 2280/2260/2242/2230 SSDs in place of a 2.5" HDD while using an internal SATA connection. It supports common Windows operating systems and offers a straightforward installation thanks to its standard SATA 22 pin interface and slim design.

Suitable for

• Upgrading a laptop or desktop by replacing a 2.5" HDD with an M.2 SATA SSD
• Installing M.2 SATA SSDs of sizes 2280, 2260, 2242 and 2230 in systems with a SATA 22 pin connector
• Systems requiring a compact internal adapter with a SATA 6 Gbit/s interface

Key specifications

• Model: DeLOCK 62792
• Interface: SATA host, SATA 22 pin
• Maximum data transfer rate: 6 Gbit/s
• Compatible M.2 sizes: 2280, 2260, 2242, 2230
• Dimensions: 70 mm (W) × 100 mm (D) × 8 mm (H)
• Colour: Silver, Black
• MPN: 62792; EAN: 4043619627929

How to use

Install an M.2 SATA SSD of the supported size into the adapter and secure it according to the SSD and adapter mounting points. Insert the adapter into the 2.5" drive bay or mounting location and connect the SATA 22 pin interface to the system's SATA port. After connecting power and data cables as required by your system, power on the computer and verify that the operating system recognises the new drive. Follow standard OS procedures to initialise, partition or format the SSD if needed.

Recommendations

Use this adapter with M.2 SATA (not NVMe) SSDs of the listed sizes. Ensure compatibility with your system's SATA connector and confirm power/data cable routing before closing the chassis.
