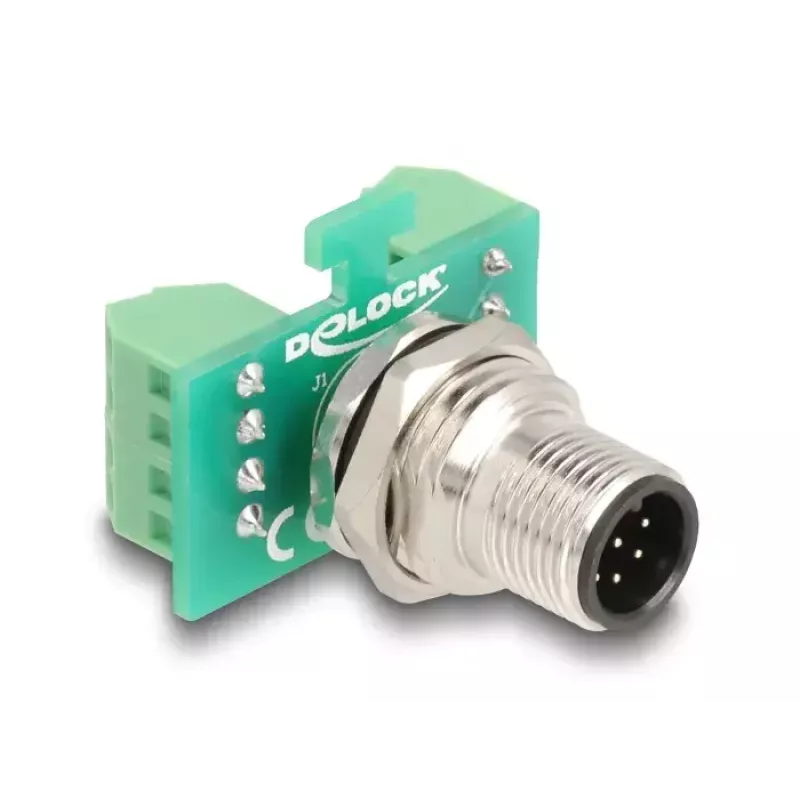

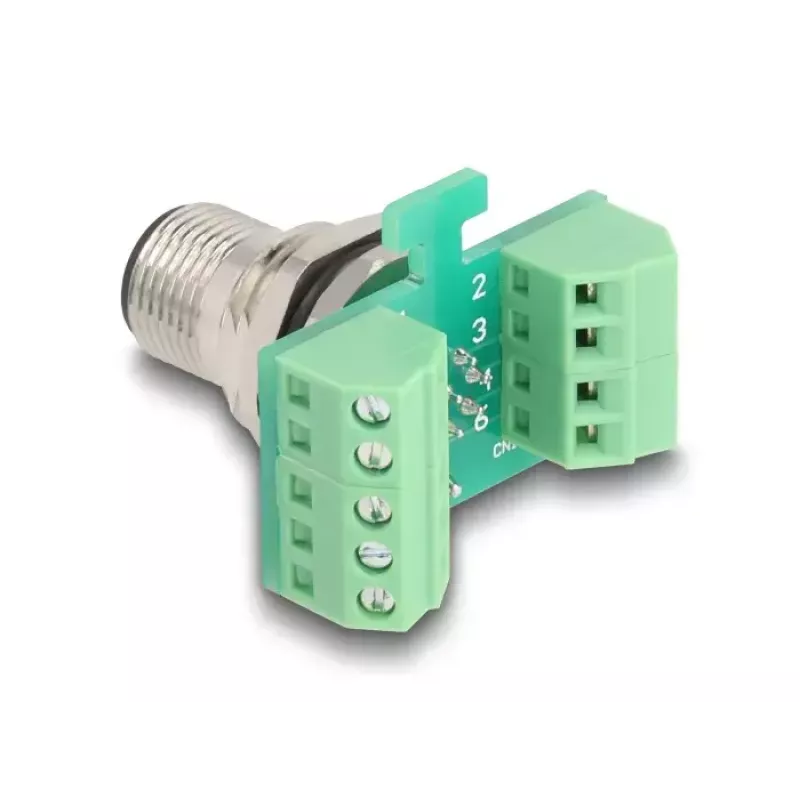

Adattatore modulo di trasferimento DeLOCK M12 8 poli codifica A connettore maschio su morsettiera a 9 poli

The DeLOCK M12 transfer module adapter provides a straightforward, reliable connection between devices with an M12 A-coded 8-pin male connector and electrical circuits terminated on a 9-pin terminal block. Its compact green housing is intended for industrial environments and control cabinets where a stable interface is required.

Advantages

The adapter converts an M12 A-coded 8-pin male interface to a 9-pin removable terminal block, enabling easy wiring and secure screw-terminals for signal or power lines. Its compact form factor allows installation in confined spaces such as switch cabinets, and the standardized M12 interface ensures compatibility with many industrial sensors, actuators and field devices.

Suitable for

• Industrial automation equipment
• Building automation systems
• Control cabinets and switchgear
• Sensors and actuators with M12 A-coded connectors

Key specifications

• Connector A: M12 A-coded, 8-pin, male
• Connector B: 9-pin removable terminal block
• Colour: green
• Brand: DELOCK, MPN: 60664, EAN: 4043619606641

How to use

Connect the M12 A-coded 8-pin male connector to the matching female M12 socket on the device. Terminate wires into the 9-pin terminal block by inserting the conductors into the appropriate terminal positions and securing them with the terminal screws. Ensure correct pin assignment according to the wiring diagram of your device before powering the circuit.

Recommendations

The adapter is intended for indoor use in dry, protected environments such as control cabinets; avoid exposure to prolonged moisture or corrosive atmospheres. Verify wiring and tighten terminal screws to the recommended torque of your installation practice to maintain reliable contact.
