Adattatore per antenna RF Elements TPA-C5X

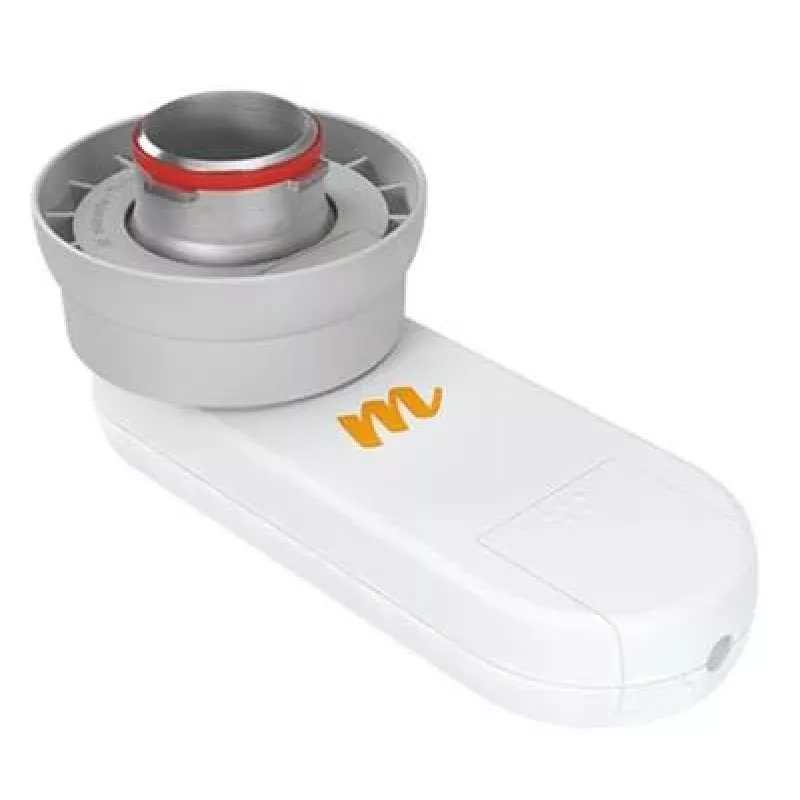

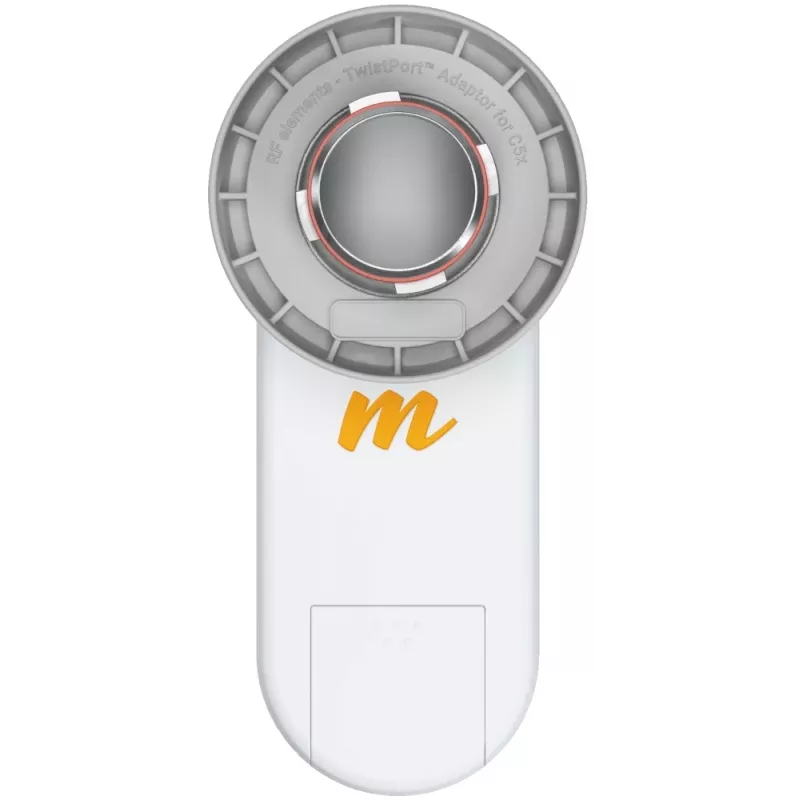

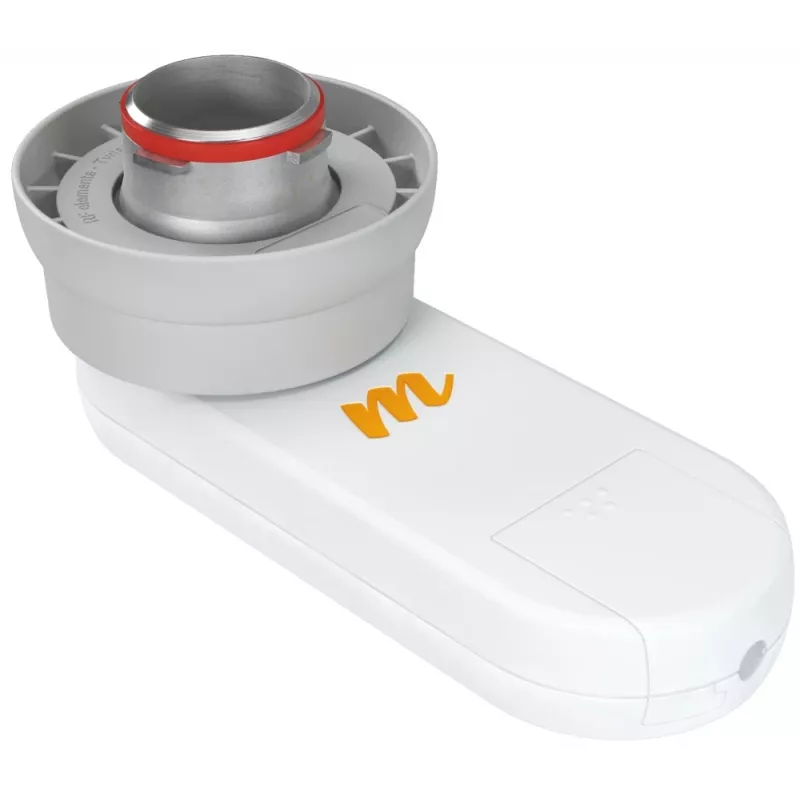

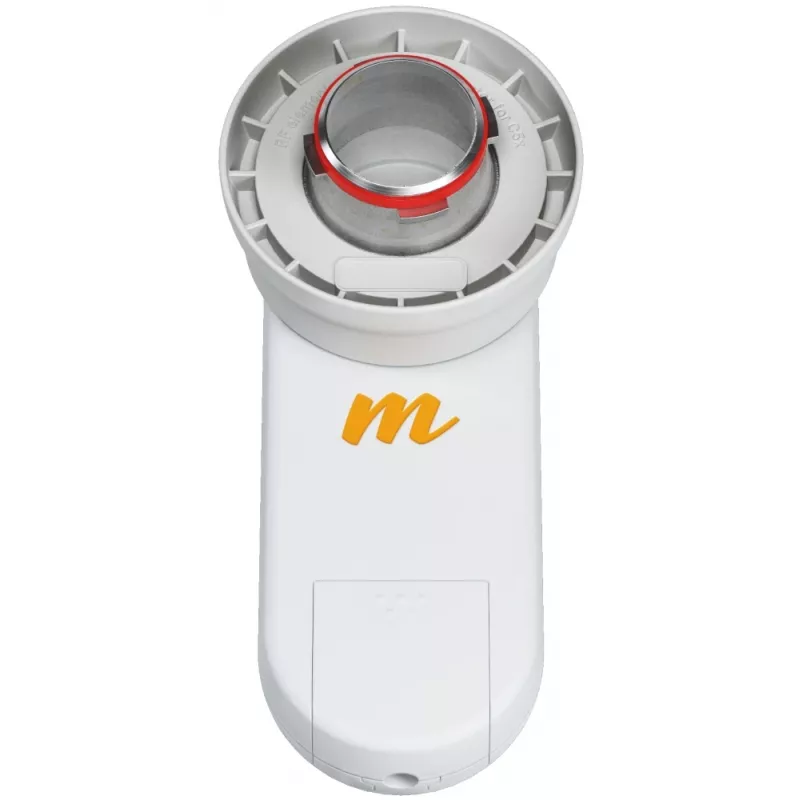

The RF Elements TPA-C5X antenna adaptor is a compact, durable component designed to connect compatible radio equipment with consistent mechanical stability and signal alignment. Constructed from ABS and aluminum, the adaptor combines lightweight design with enough structural strength for standard outdoor and indoor mounting scenarios. With dimensions of 109 mm × 98 mm × 54 mm and a weight of 170 g, the adaptor delivers a small footprint while maintaining reliable physical connection between antennas and radio devices.

Advantages

The adaptor's ABS housing and aluminum elements provide corrosion resistance and reduced weight, making installation and handling easier for technicians. Its compact size minimizes wind load and visual impact on masts or poles. The product is engineered to ensure stable mechanical fit and repeatable alignment, supporting consistent RF performance when paired with compatible antennas and radios.

Suitable for

• Small to medium outdoor point-to-point and point-to-multipoint links
• Indoor rack or cabinet installations where compact adaptors are required
• Sites where reduced weight and low profile are preferred for mounting hardware

Key specifications

• Materials: ABS plastic housing and aluminum structural parts
• Dimensions: 109 mm × 98 mm × 54 mm
• Weight: 170 g
• Function: mechanical adaptor for antenna-to-radio connection and alignment

How to use

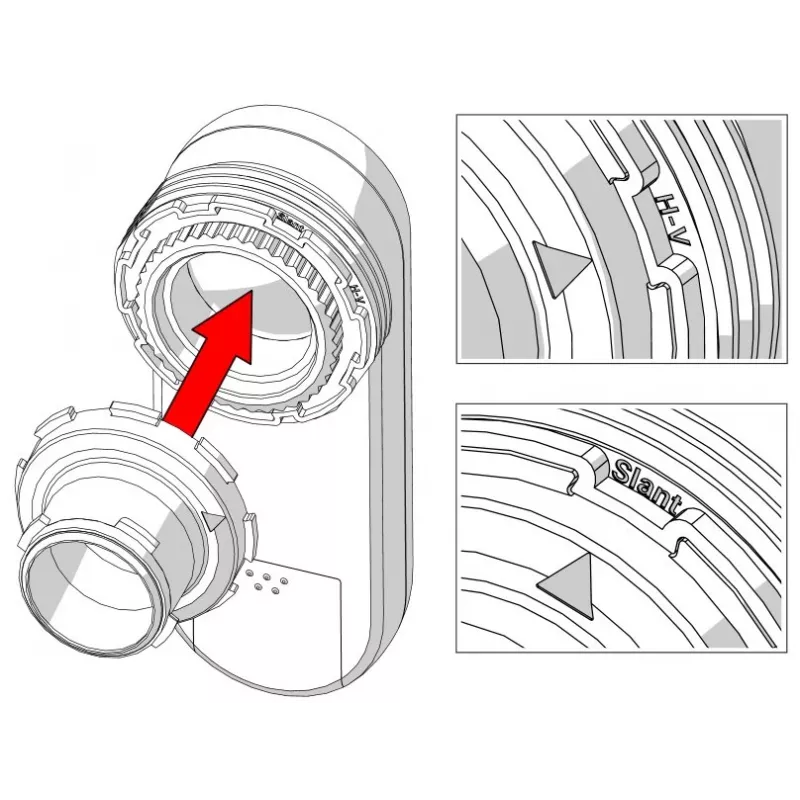

Mount the RF Elements TPA-C5X adaptor between the antenna and the radio interface according to the mechanical instructions provided by the antenna and radio manufacturers. Ensure mating surfaces are clean and free of debris, align connector interfaces carefully to avoid cross-threading or forcing parts together, and secure fasteners to the recommended torque where specified by the equipment documentation. Verify physical alignment and stability after installation and perform RF checks to confirm expected signal levels.

Recommendations

Use appropriate stainless steel hardware or corrosion-resistant fasteners for outdoor installations and follow grounding and lightning-protection best practices for antenna systems. Periodically inspect the adaptor for signs of wear, corrosion, or loosened fasteners and retighten or replace parts as needed to maintain reliable connectivity.
