Adattatore per cavo scheda madre Kolink CORE ADEPT ARGB 24-pin 90° per connettore di alimentazione motherboard

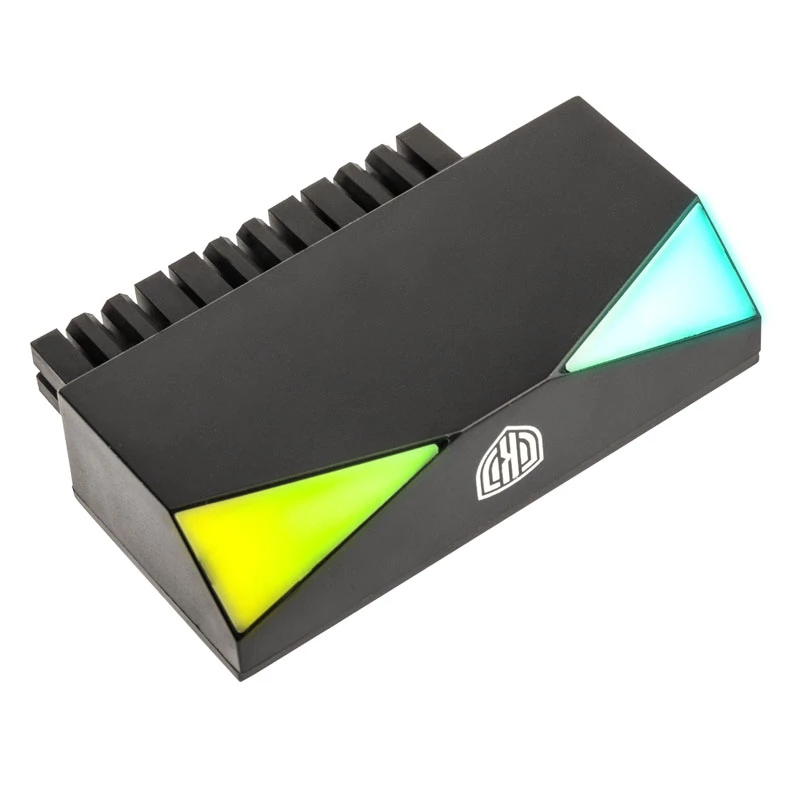

Kolink CORE ADEPT ARGB 24-pin 90° is a mainboard cable adapter designed to reroute the standard 24‑pin ATX power connector at a right angle. The adapter keeps the 24‑pin connection ARGB‑compatible while changing the plug orientation to improve clearance behind the motherboard and allow neater cable routing in compact or space-constrained PC cases.

Advantages

The right‑angle design reduces strain on the motherboard connector and frees up space behind the board for better component fit and cable management. ARGB compatibility preserves addressable lighting synchronization for systems that use motherboard-controlled lighting. The adapter enables a tidier PSU‑to‑motherboard routing, which can contribute to improved airflow and easier installation in tight builds.

Suitable for

• Small form factor or compact PC cases where straight cables obstruct components
• Builds that require improved clearance behind the motherboard
• Systems where ARGB lighting must remain functional after rerouting the 24‑pin cable
• PC builders aiming for cleaner cable management and optimized airflow

Key specifications

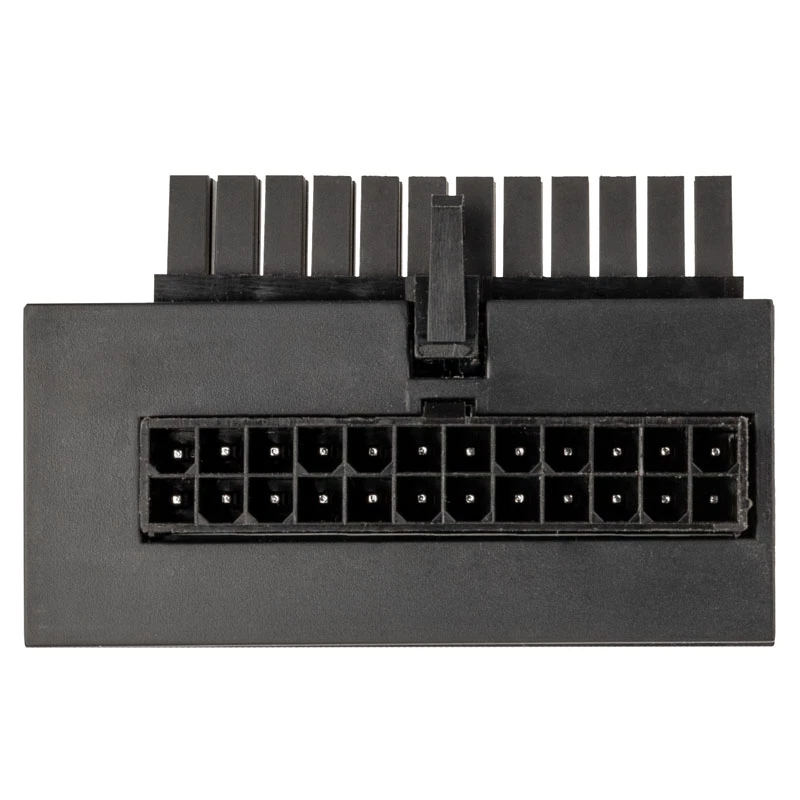

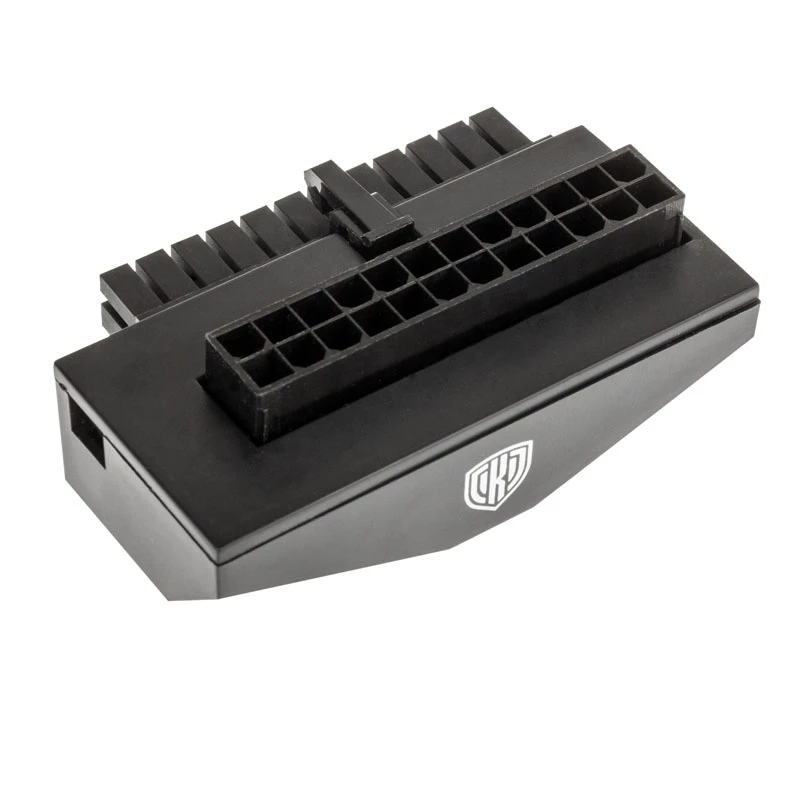

• Connector type: 24‑pin ATX right‑angle adapter
• Orientation: 90° (right angle) to change cable exit direction

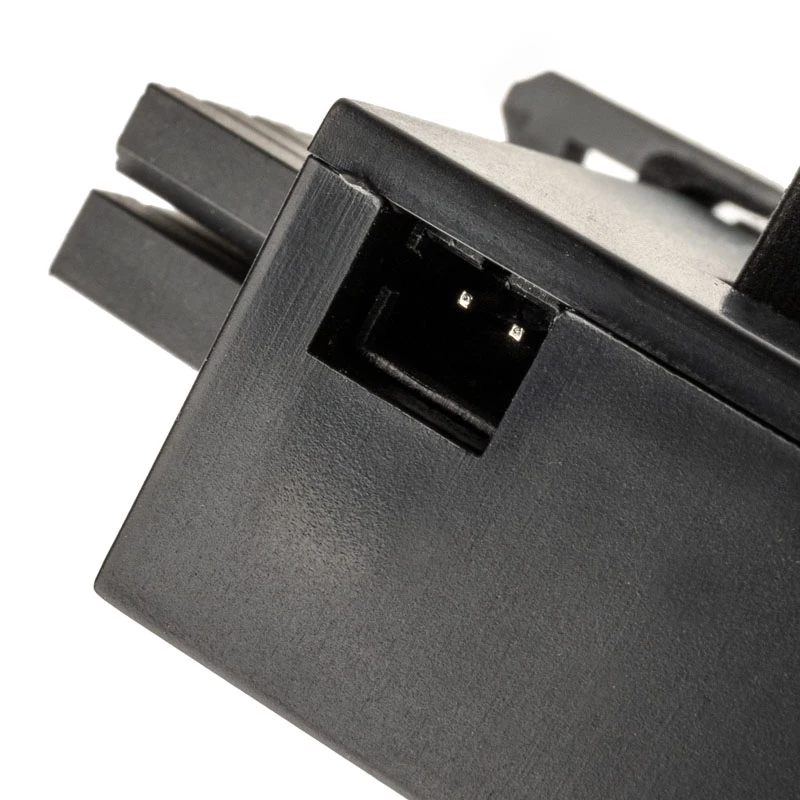

• ARGB support: maintains addressable RGB signal pass‑through
• Compatibility: standard ATX 24‑pin motherboard power headers
• Typical usage: rerouting and space optimization behind motherboard

How to use

Disconnect the system from power before installation. Remove the standard 24‑pin ATX cable from the motherboard power header, then plug the Kolink CORE ADEPT ARGB 24‑pin 90° adapter into the motherboard header. Reconnect the PSU 24‑pin cable to the adapter’s mating connector, ensuring a firm, fully seated connection. Verify ARGB header and cable alignment if your setup uses addressable lighting, and secure any excess cable to prevent interference with fans or other components.

Recommendations

Use the adapter only with compatible 24‑pin ATX power cables and motherboards. Ensure the connection is fully seated to avoid power instability. Route the cable to avoid sharp bends and secure it with ties or channels to maintain airflow and prevent contact with moving parts. If uncertainty exists about compatibility with a particular case or layout, test fit before final assembly.
