Adattatore per cavo video Deltaco DP-MULTI1

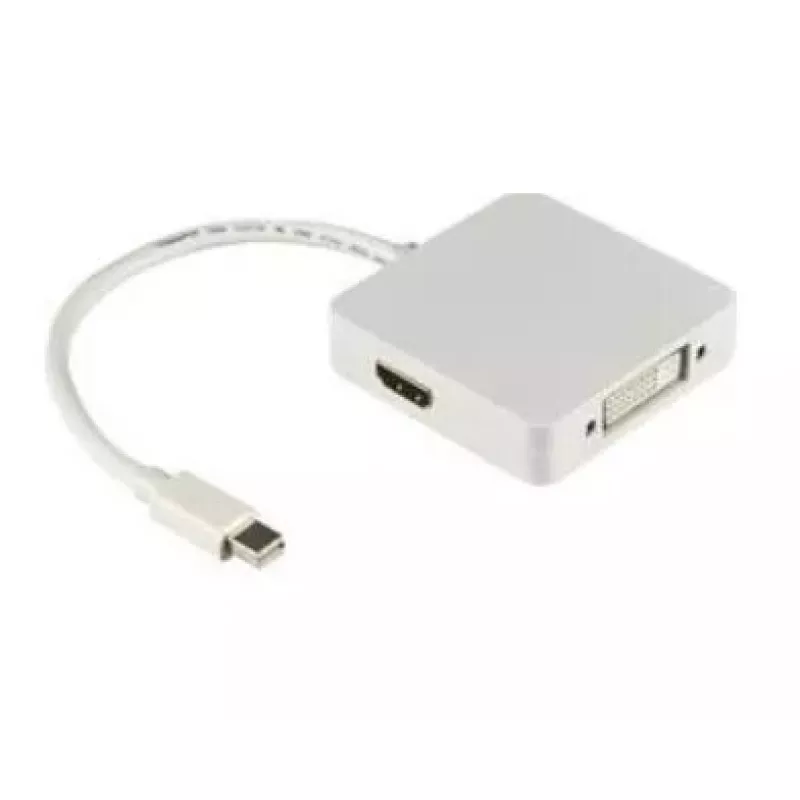

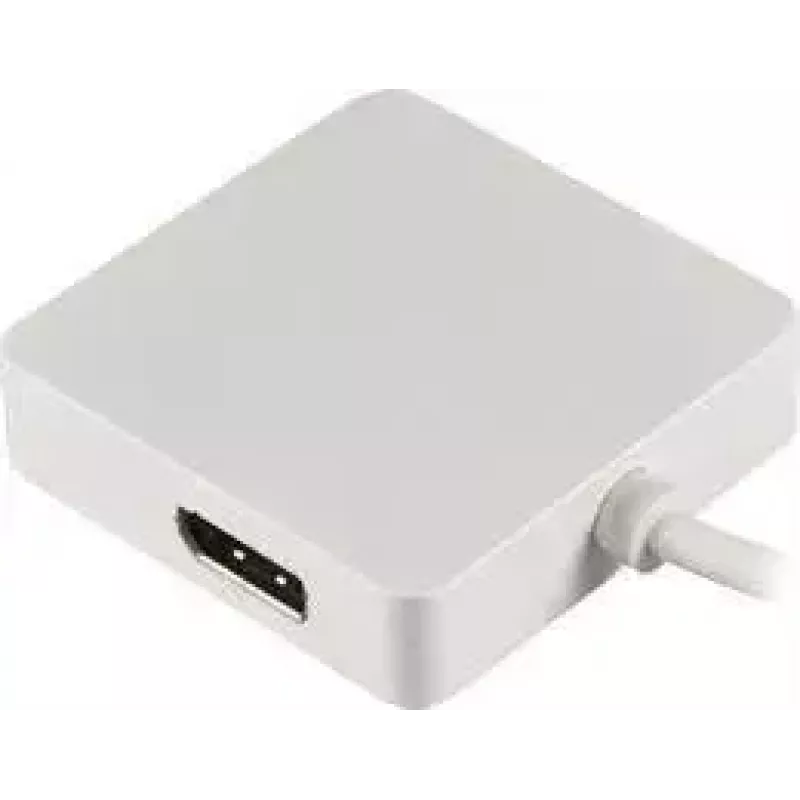

The Deltaco DP-MULTI1 is a compact 0.2 m video cable adapter that converts a Mini DisplayPort output to DisplayPort, DVI (DVI-I Dual Link) and HDMI. It supports Ultra HD and Full HD resolutions, carries audio over supported interfaces, and is lightweight (35 g) and easy to carry, making it suitable for mobile setups, presentations and home use.

Advantages

The adapter offers multiple output options in a single cable, allowing a computer with Mini DisplayPort to connect to HDMI, DVI-D or DisplayPort displays. It supports up to 3840x2160 at 30 Hz with audio over HDMI and DisplayPort, provides Full HD at 1920x1080 60 Hz over DVI-I Dual Link, and uses PS8339B & PS8222B chipsets for signal conversion. The 10.8 Gb/s bandwidth ensures stable transmission for common video tasks.

Suitable for

Key specifications

How to use

Connect the Mini DisplayPort end to the source device (laptop or desktop). Plug the appropriate display connector (HDMI, DVI or DisplayPort) into the target display. Select the corresponding input on the display. Configure display settings on the computer (resolution and audio output) as needed. For 4K output, ensure the display supports 3840x2160 at 30 Hz and select HDMI or DisplayPort output accordingly.

Recommendations

Use the adapter for short-distance connections (0.2 m). For optimal audio and 4K@30Hz performance, use HDMI or DisplayPort connections and verify that the connected display and source support the chosen resolution and refresh rate. Avoid bending the cable sharply and store in a dry environment.
