Adattatore PoE Ernitec ELECTRA-POE-10GB-90W 10Gbit/s 90W

The Ernitec ELECTRA-POE-10GB-90W is a PoE adapter that delivers 10Gbps data transfer and up to 90W of power over Ethernet. It provides one 10G PoE power supply port and one 10G RJ45 port, is compatible with IEEE802.3af, IEEE802.3at and IEEE802.3bt standards, and accepts AC 100–240V input. The unit has a metal casing with IP20 protection and operates in temperatures from -20 to 50°C.

Advantages

This PoE adapter supports high-speed 10Gbps connectivity while supplying up to 90W according to IEEE802.3bt, enabling the powering of demanding network devices. The product follows IEEE 802.3 standards for reliable power delivery and separates PSE (Power Sourcing Equipment) and PD (Powered Devices) roles. Universal AC input and robust metal housing with IP20 protection make it suitable for typical indoor installations.

Suitable for

• Powering high-power network devices such as PTZ cameras and access points requiring up to 90W.
• High-bandwidth network applications that require 10Gbps data transfer.
• Indoor installations in surveillance systems and network closets where a metal-cased PoE injector is needed.

Key specifications

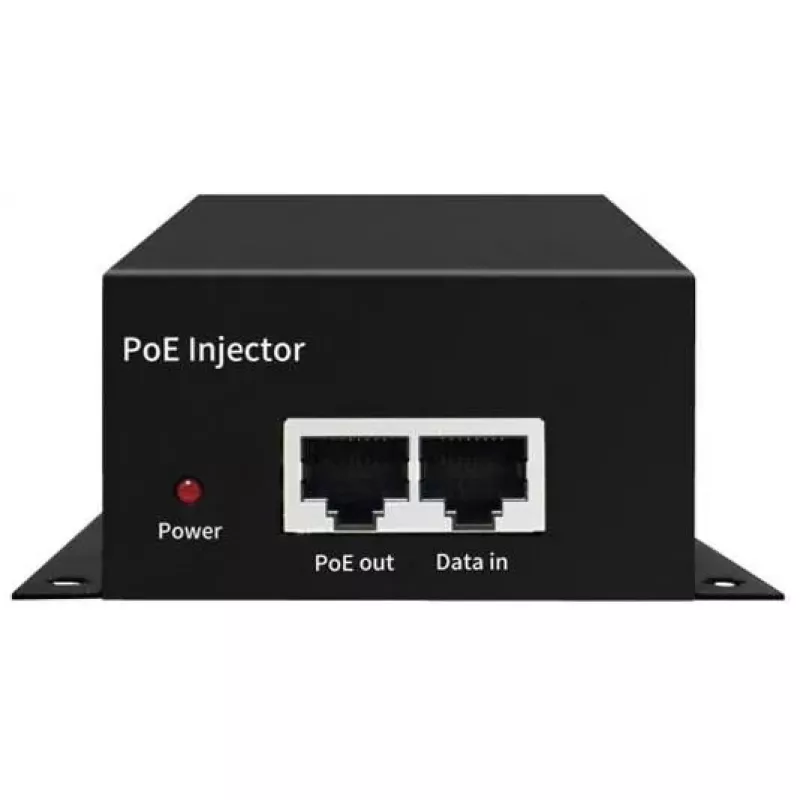

• Ports: 1 x 10G PoE power supply port, 1 x 10G RJ45 data port.
• PoE standards: IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (90W).
• Input voltage: AC 100–240V.
• Protection class: IP20.
• Operating temperature: -20 to 50°C.
• Construction: metal casing.

How to use

Connect the AC power cable to the adapter and plug it into an appropriate mains outlet (AC 100–240V). Use the 10G RJ45 port for network connection to your switch or endpoint and connect the powered device to the 10G PoE power supply port. Ensure cables and connected equipment are compatible with the chosen PoE standard.

Recommendations

For devices that draw high power, voltage drop over long Ethernet cables can reduce available wattage. Ernitec recommends using pure copper CAT6 cables and limiting cable length to a maximum of 1 meter for optimal performance with high-powered devices.
