Adattatore PoE Extralink EX.12646 Fast Ethernet 48 V 10 1000 Mbit/s

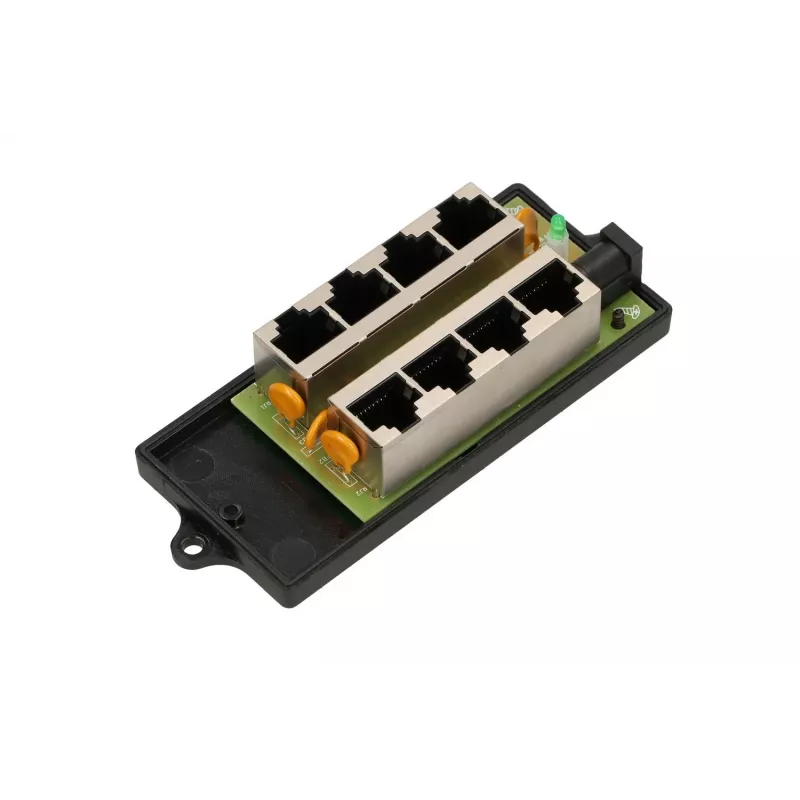

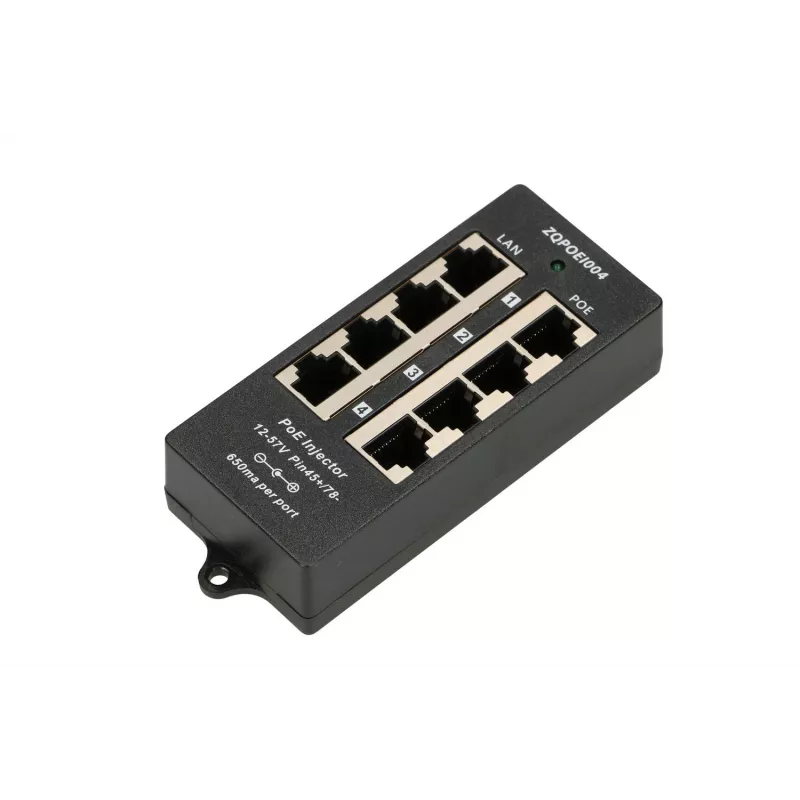

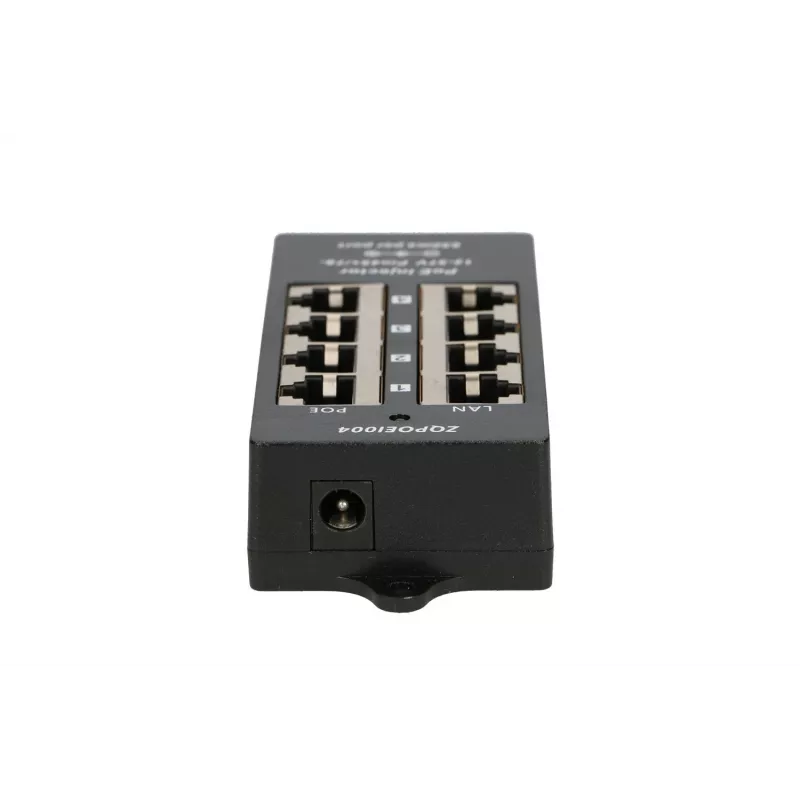

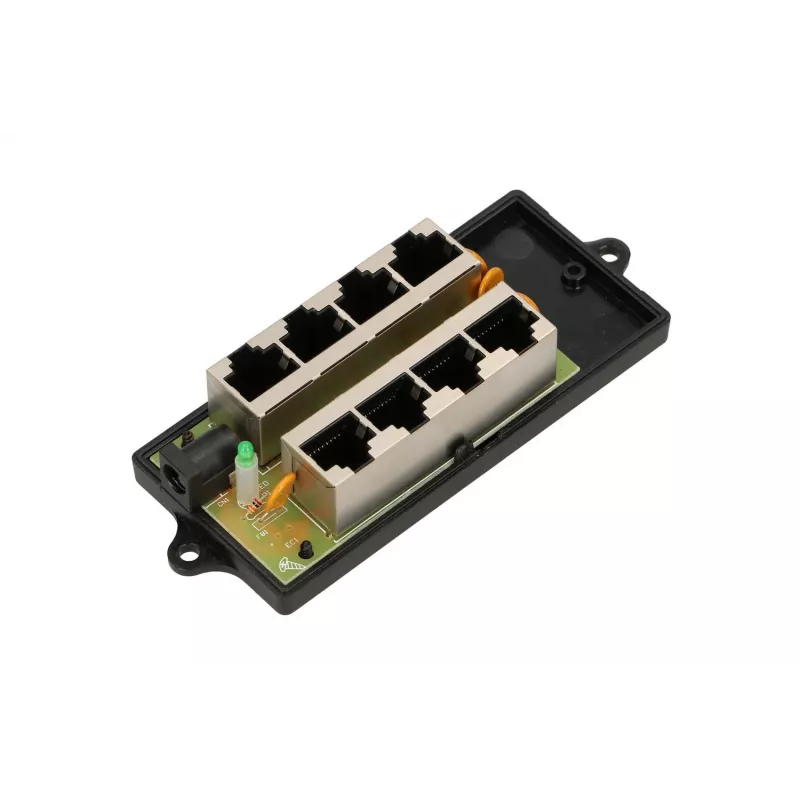

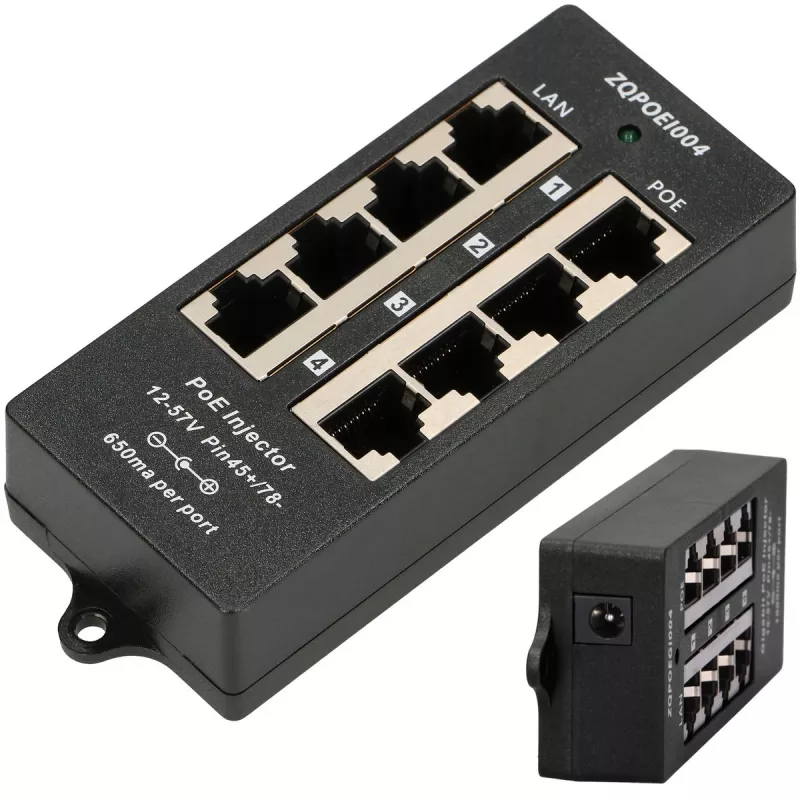

PoE power panel injector with four Extralink ports provides combined data and power delivery for up to four devices. The unit separates data and powered Ethernet: one side features RJ45 ports functioning as standard Ethernet (data-only) connections, while the opposite side provides PoE-enabled ports that supply 48 V over pairs 4–5 (positive) and 7–8 (negative). The device supports Fast Ethernet data rates and is intended for installations that require centralized PoE injection.

Advantages

The Extralink EX.12646 offers four PoE output ports and four data-only RJ45 ports in a compact panel, enabling simultaneous power and network connectivity. It operates at 48 V PoE voltage compatible with many network devices and supports Fast Ethernet speeds. The clear separation of data-only and PoE-enabled ports simplifies cabling and deployment.

Suitable for

• Powering up to four PoE-enabled network devices such as access points or IP cameras
• Small office or branch network installations requiring centralized PoE injection
• Retrofit scenarios where existing non-PoE switches need external PoE supply

Key specifications

• Brand: Extralink
• Model: EX.12646
• Ethernet ports (RJ-45): 8 (4 data-only, 4 PoE-enabled)
• PoE voltage: 48 V
• Data rates: Fast Ethernet (10/1000 Mbit/s — as specified in product data)
• MPN: EX.12646
• EAN: 5903148912646

How to use

Install the PoE panel near your network switch or distribution point. Connect the switch’s Ethernet outputs to the data-only RJ45 ports on one side of the panel. Connect the Ethernet cables to be powered from the PoE-enabled ports on the opposite side; these ports supply 48 V on pairs 4–5 (positive) and 7–8 (negative). Ensure cables and powered devices are compatible with 48 V PoE and rated for the required data speed.

Recommendations

Verify that connected devices support 48 V PoE and that cable runs do not exceed recommended lengths for reliable power delivery. Use quality shielded or unshielded Cat5e or better cabling and avoid overloading the panel beyond its four-port capacity.
