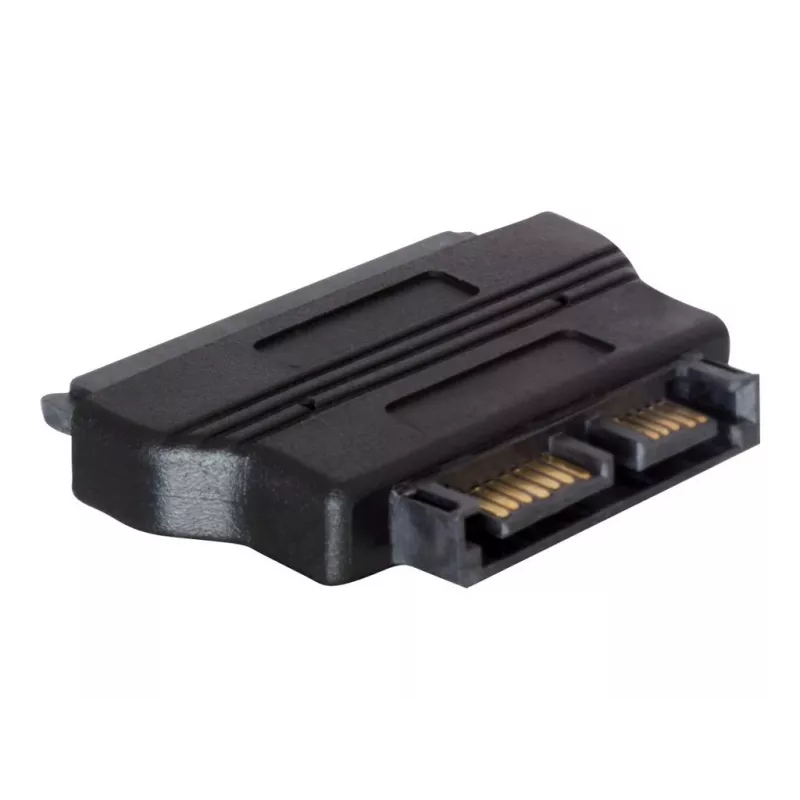

Adattatore SATA SATA 22 pin BM SATA 13 pin M nero DeLOCK

This Delock adapter lets you connect a DVD/CD drive or other device with a standard SATA 22‑pin female connector to a Slim SATA 13‑pin male (7+6) interface. The adapter is black, compact and intended for 12V devices; use with an optional connecting cable (ref. 84390) if required.

Advantages

The adapter provides a straightforward mechanical conversion between a SATA 22‑pin female and a Slim SATA 13‑pin male (7+6) connector without requiring additional drivers. Its compact form factor makes it suitable for installations in slim optical drive bays and small form‑factor systems. The black finish matches typical internal PC components.

Suitable for

• Connecting DVD/CD optical drives with SATA 22‑pin to Slim SATA 13‑pin interfaces
• Upgrading or repairing slim laptop or small desktop optical drive connections
• Internal PC installations where a 12V Slim SATA device must interface with a standard SATA cable

Key specifications

• Connector 1: SATA 22‑pin female
• Connector 2: Slim SATA 13‑pin (7+6) male
• Power: only for 12V devices
• Colour: Black
• Brand: DELock, MPN: SATA-14, EAN: 4043619616947

How to use

Align the SATA 22‑pin female end of the adapter with the device's SATA connector and insert securely. Connect the Slim SATA 13‑pin male (7+6) end to the corresponding cable or drive bay connector. If an additional cable is required, use the optional connecting cable (ref. 84390). Ensure the connected device is a 12V unit before powering the system.

Recommendations

Do not use the adapter with devices requiring voltages other than 12V. Ensure proper orientation when connecting to avoid bending pins; perform installations with the system powered off and disconnected from mains.
