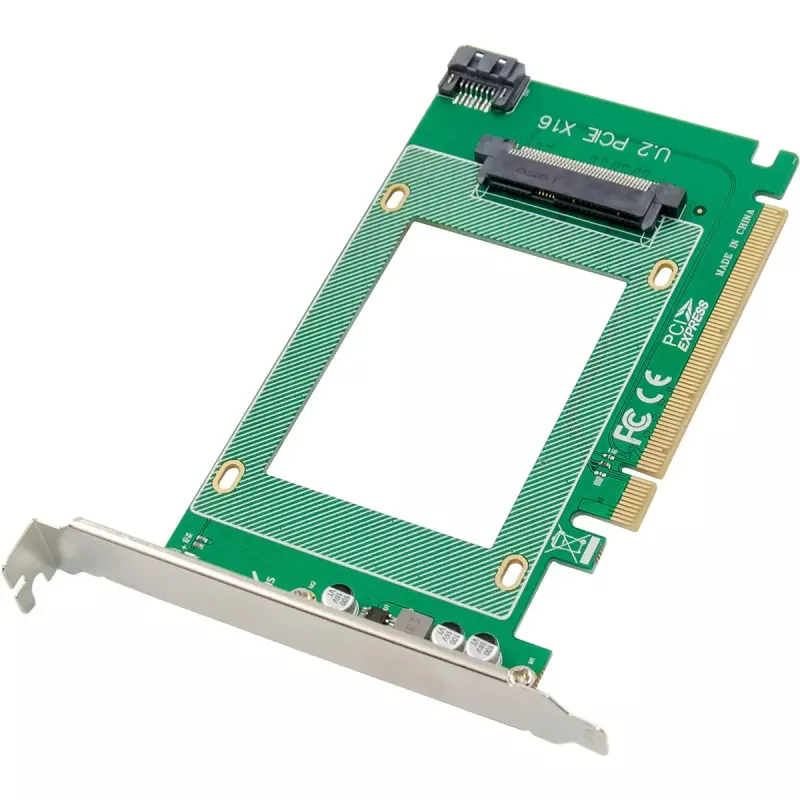

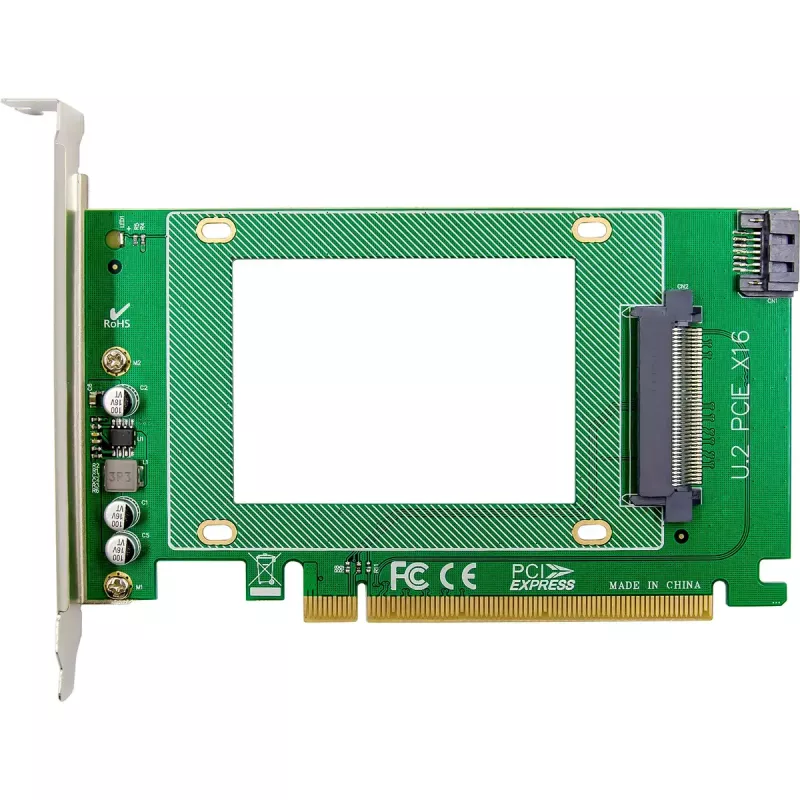

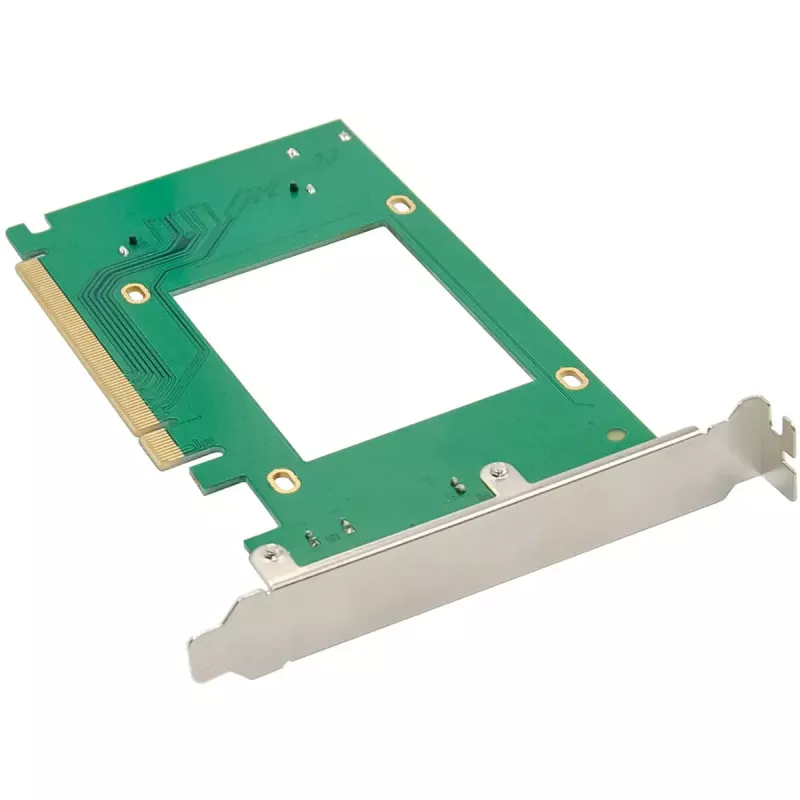

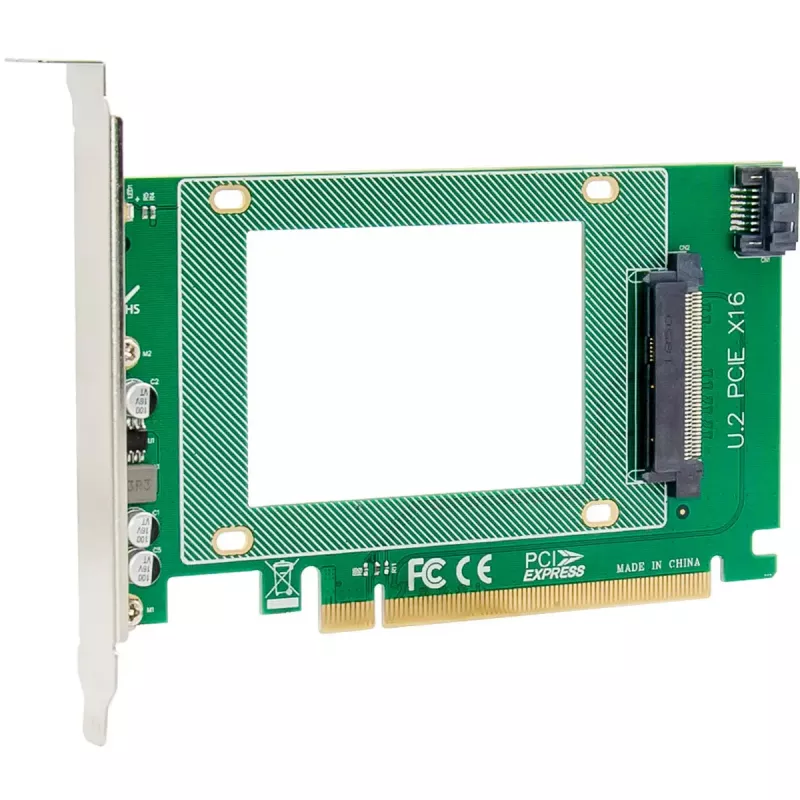

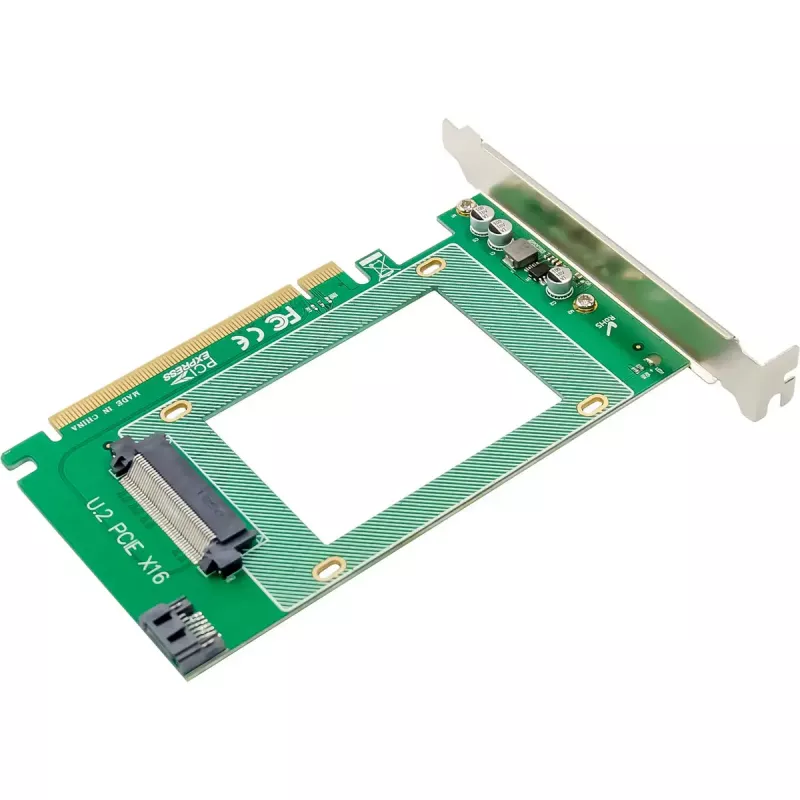

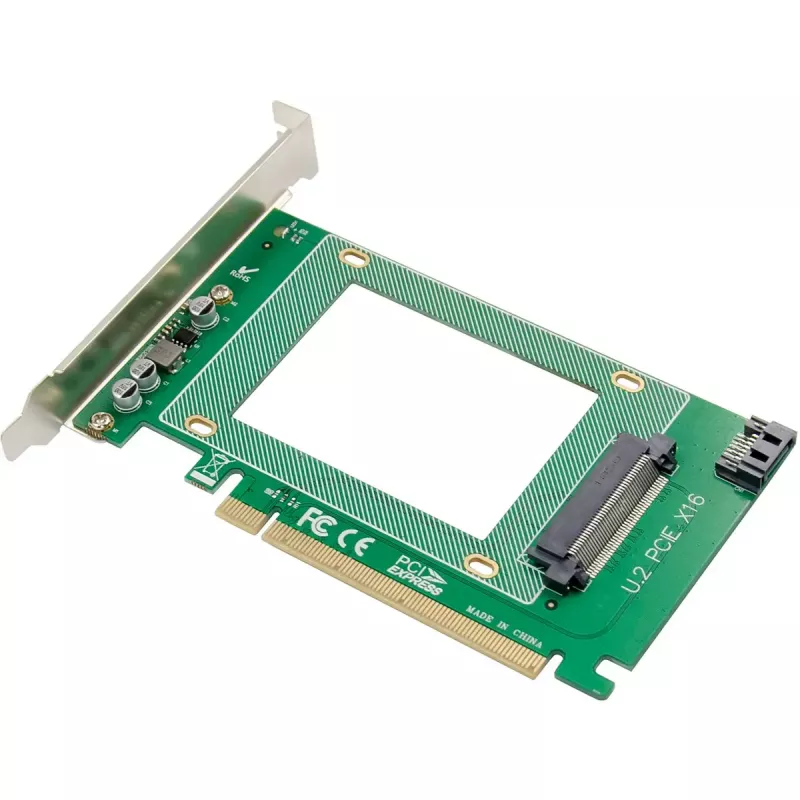

Adattatore scheda di interfaccia InLine 76619J per sistemi informatici, modello 76619J

Flexible system expansion for NVMe SSDs:Enables the integration of 2.5-inch U.2 NVMe drives into systems without a native U.2 interface.
High transfer speed thanks to PCIe 3.0 x16:Utilizes the full bandwidth of modern PCIe SSDs for fast data access and transfers.
Additional SATA port for greater versatility:Supports 2.5-inch SATA SSDs or HDDs via the included SATA III connector.
Driverless installation for maximum compatibility:Works directly under Windows and Linux thanks to native NVMe support – no software required.
Includes accessories for immediate installation:With screw, screwdriver, and SATA cable for direct and easy commissioning.

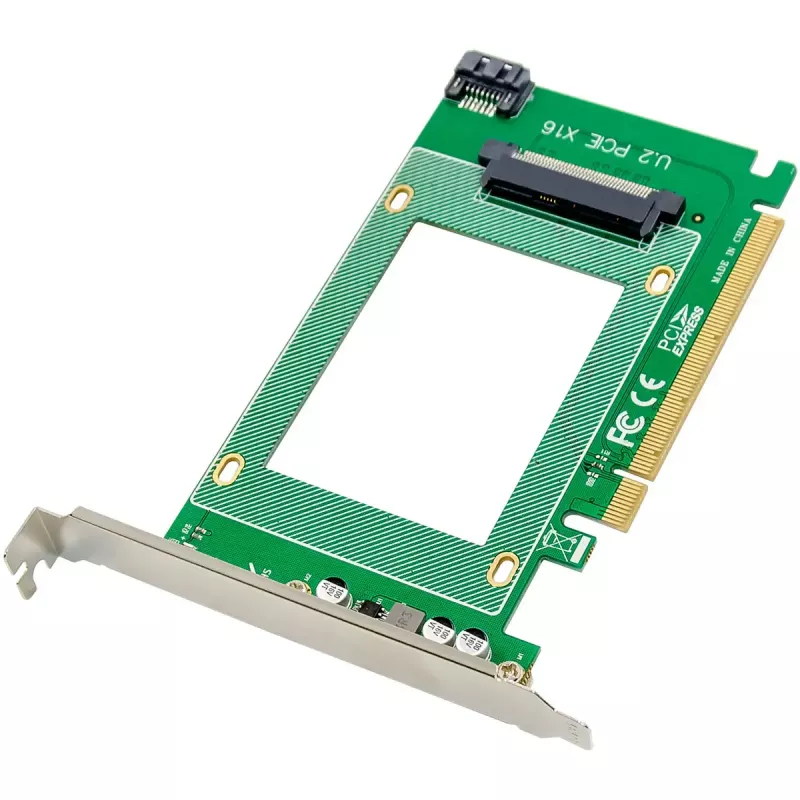

The InLine® PCIe x16 U.2 NVMe interface card is the ideal solution for anyone who wants to integrate 2.5-inch NVMe SSDs with U.2 connection into existing systems. It offers a simple and reliable expansion option, especially in servers, workstations, or high-performance PCs without a native U.2 interface.
The card is inserted into a free PCIe x16 or x16 slot and uses PCIe 3.0 for fast data connection. Modern operating systems automatically recognize NVMe SSDs, so no driver installation is required. In addition to the U.2 connection, the card also offers an additional SATA port, allowing SATA SSDs or HDDs to be flexibly integrated.
The included accessories make installation straightforward and immediate. Whether for professional server environments, system integrators, or demanding users, this interface card combines maximum performance with maximum compatibility.
Technical data:

PCIe standard: PCIe 3.0 x16 (compatible with PCIe 2.0 and PCIe 1.0)
Interfaces:
1x U.2 NVMe SFF-8639 (for 2.5-inch NVMe SSDs)
1x SATA port (for 2.5-inch SATA SSDs or HDDs)
Compatibility: 2.5-inch U.2 NVMe SSDs (e.g., Intel SSD 750)
SATA operation: Connection via SATA III cable (included)
Drivers: No driver installation required
Supported PCIe generations: Gen3 / Gen2 / Gen1
Supported drive size: 2.5 inches
Mounting: Screw mounting for 2.5-inch drives
Note: NVMe boot support depends on the motherboard.

Supported operating systems:

Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 and newer
Linux with native NVMe support (e.g., Ubuntu, Fedora, SUSE, Red Hat)

Scope of delivery:

1x InLine PCIe x16 U.2 NVMe interface card
1x screw
1x screwdriver
1x SATA III cable
1x user manual in German/English

InLine 76619J. Host interface: PCIe, Output interface: SATA, U.2, Host interface gender: Male. Country of origin: Taiwan. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows.... Width: 160 mm, Depth: 160 mm, Height: 120 mm. Cables included: SATA, Package weight: 49 g, Package volume: 700 cm³

How to use

Power off the computer and insert the interface card into an available PCIe x16 slot. Secure a 2.5-inch drive to the mounting points with the provided screw, connect the drive via the U.2 connector or the SATA port using the supplied SATA III cable as required, then close the case and power on the system. The operating system should detect NVMe and SATA drives automatically; no additional drivers are required for supported Windows and Linux distributions. Configure boot order or storage settings in BIOS/UEFI if you intend to boot from an NVMe drive.

Recommendations

For NVMe boot functionality verify motherboard NVMe boot support in the BIOS/UEFI and update firmware if necessary. Use a PCIe x16 slot providing full Gen3 lanes for maximum performance; when installed in older PCIe generations performance will be limited by the slot's bandwidth.
