Adattatore SSD e HDD da 2,5" Akasa AK-HDA-11 con cavo SATA per unità da 2,5"

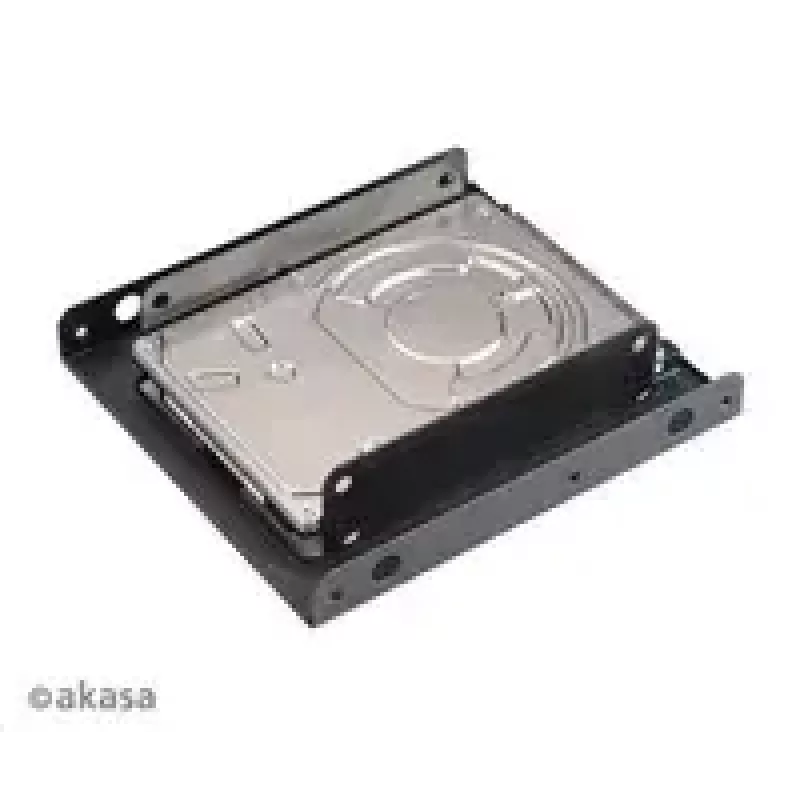

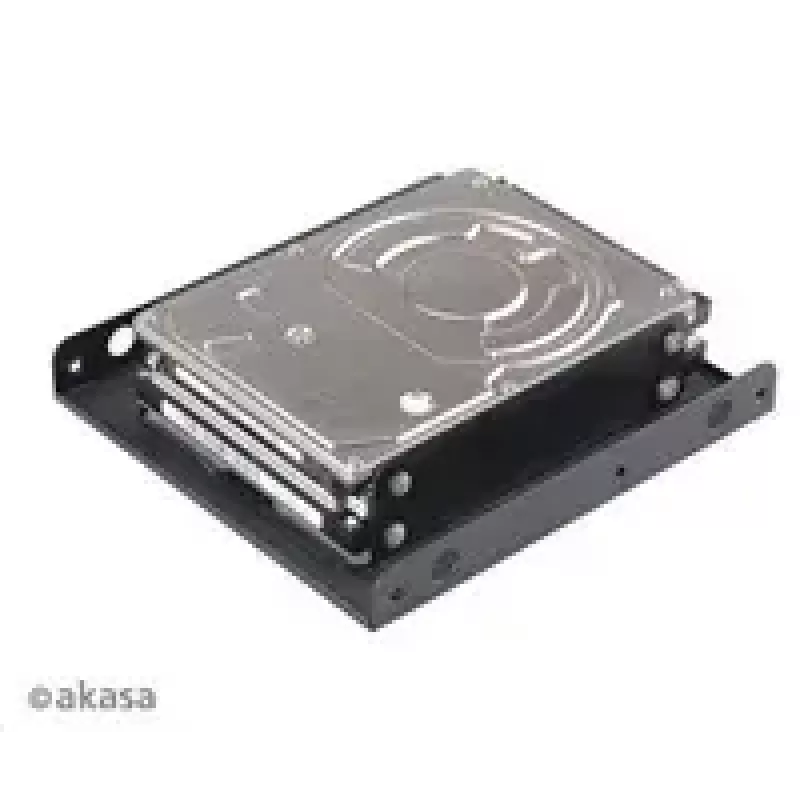

Akasa AK-HDA-11 is a compact adapter that converts a 3.5" drive bay opening to accommodate two 2.5" SATA drives. Supplied with SATA data and power cables, the adapter supports connection of 2.5" SSDs and HDDs for data transfer, cloning, testing or temporary installation in desktop systems and enclosures.

Advantages

The adapter provides two 2.5" mounting positions in a single 3.5" bay while including both SATA data and power cables for immediate use. It is compatible with standard SATA III interfaces and comes with mounting screws and multiple cable angles to fit different drive layouts and tight spaces.

Suitable for

• Upgrading desktops with 2.5" SSDs or HDDs
• Drive cloning and data migration
• Drive testing and diagnostics
• Temporary installation of spare 2.5" drives

Key specifications

• Model: Akasa AK-HDA-11
• Fits into: 3.5" bay to hold 2 × 2.5" drives
• Dimensions: 113 × 102 × 25 mm (D × W × H)
• Included cables: SATA III data cable 500 mm; SATA power cable 160 mm

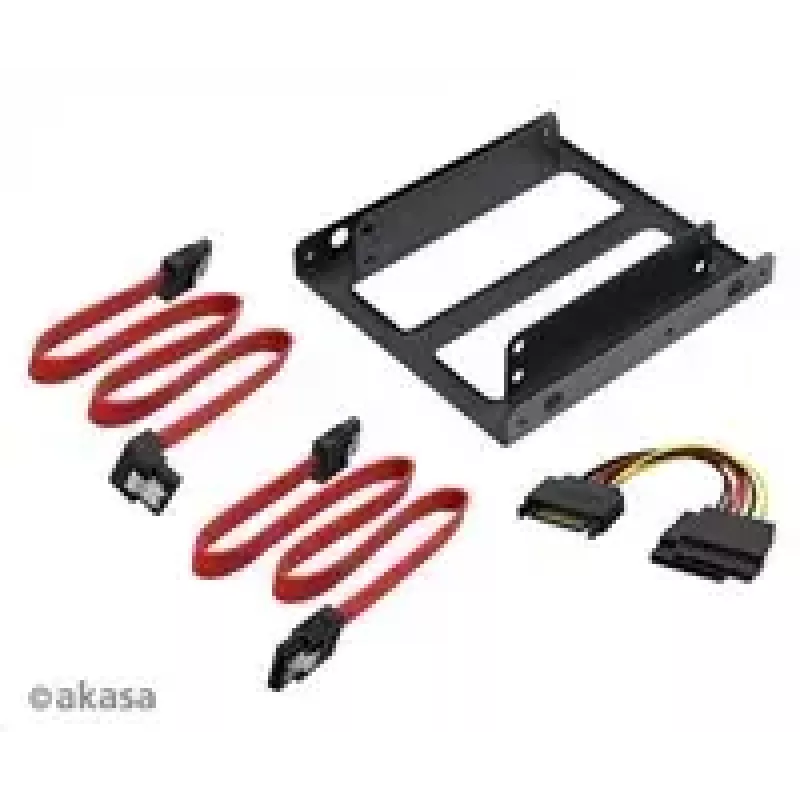

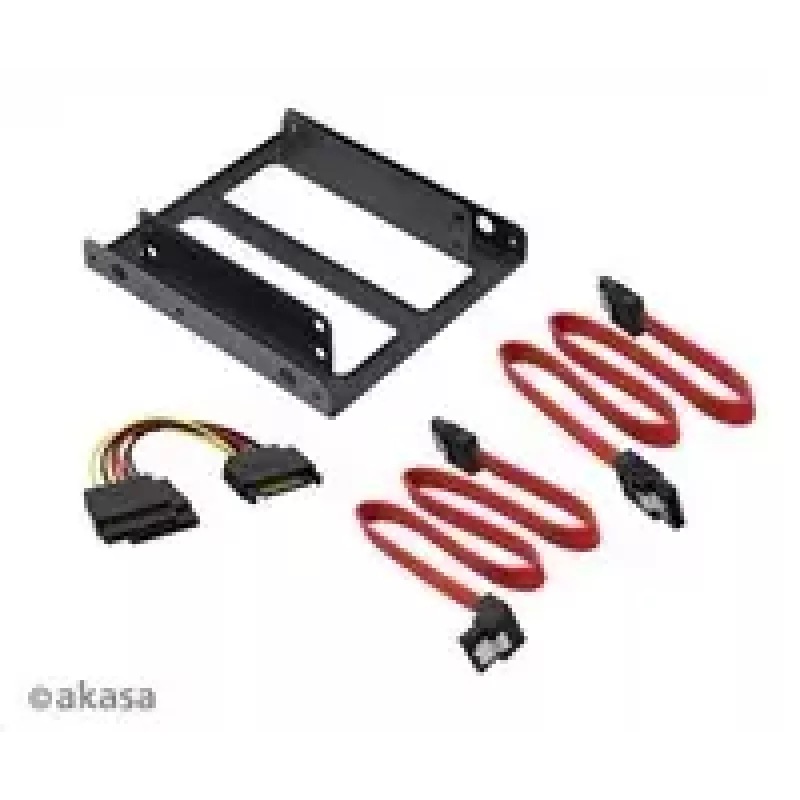

• Included accessories: mounting screws, SATA power splitter cable, 180°→180° SATA data cable, 90°→180° SATA data cable
• Interface compatibility: SATA (SATA III data cable included)

How to use

Mount one or two 2.5" SSDs/HDDs into the adapter using the supplied screws, install the adapter into a 3.5" bay and connect the SATA data and power cables to the host system. Use the supplied angled data cables or the straight cable depending on available space and connector orientation. Verify drive recognition in the operating system or BIOS before use.

Recommendations

For reliable operation, ensure secure screw mounting and use the appropriate angled cable to avoid stress on SATA connectors. Do not force connectors; check power and data cable seating if a drive is not detected.
