Adattatore WiFi Devolo Magic 1 WiFi mini

Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
Adattatore WiFi Devolo Magic 1 WiFi mini
98,37 €
PDF
PDF
Stock 79 Codice 343968 Modello 8559 Garanzia 2 anni

Spedizioni e resi

Consegna stimata venerdì 4 dicembre
Ti terremo aggiornato tramite il nostro sistema di tracciamento dettagliato
Opzioni di pagamento
Carta di credito/debitoVisaMastercardPayPalApple PayGoogle PayBonifico bancario

Fai una domanda – l'assistente AI risponde subito.

Descrizione

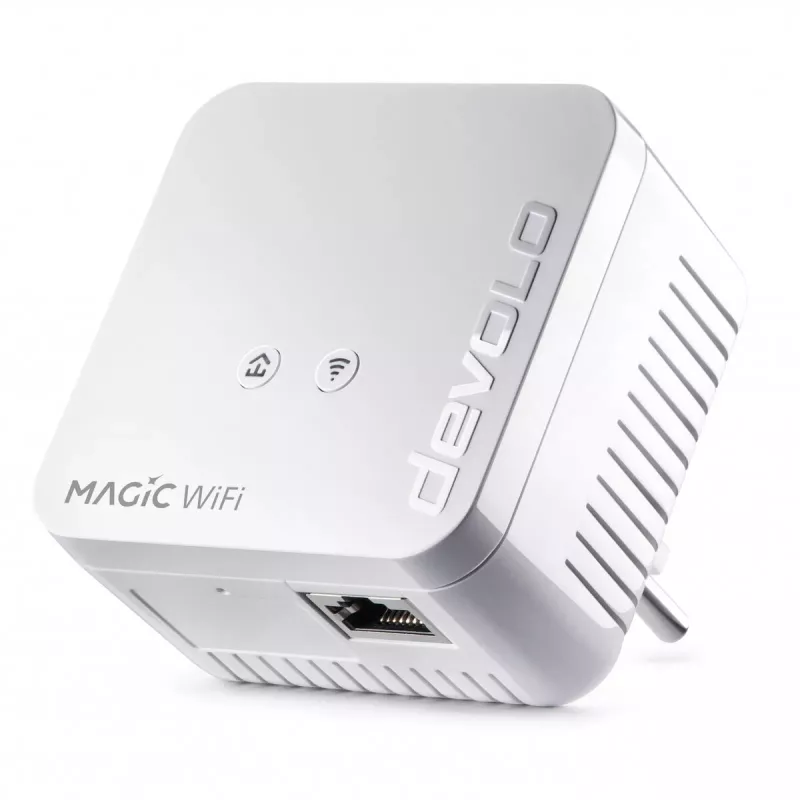

The Devolo Magic 1 WiFi mini is a compact powerline Wi‑Fi adapter that extends wired and wireless network coverage through existing electrical cabling. With a maximum data transfer rate of 1200 Mbit/s and support for IEEE 802.11n/g/b standards, the unit combines a built‑in power socket, integrated Wi‑Fi and an Ethernet LAN port to provide flexible connectivity in small apartments or multi‑room homes. LED indicators show PLC activity and the internal antenna design keeps the housing compact (68 x 68 x 41 mm) while maintaining energy efficiency with typical power consumption around 4.4 W and low standby usage.

Advantages

The adapter delivers fast data throughput over powerline connections and provides both wireless and wired access without requiring additional cabling. Its built‑in power socket preserves wall outlet availability and the compact white enclosure fits unobtrusively into most interiors. LED indicators simplify status monitoring and low power consumption reduces operating costs while maintaining continuous network availability.

Suitable for

  • Extending internet access to rooms without direct router coverage
  • Streaming video and media in living rooms or bedrooms
  • Connecting smart TVs, consoles or set‑top boxes via Ethernet
  • Providing Wi‑Fi for home offices and remote workstations

Key specifications

  • Maximum data transfer rate: 1200 Mbit/s
  • Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Interfaces: integrated Wi‑Fi, Ethernet LAN port
  • Built‑in power socket: Yes
  • Antenna: internal
  • Typical power consumption: 4.4 W; standby: 1 W
  • Dimensions (W×H×D): 68 × 68 × 41 mm
  • Color: White

How to use

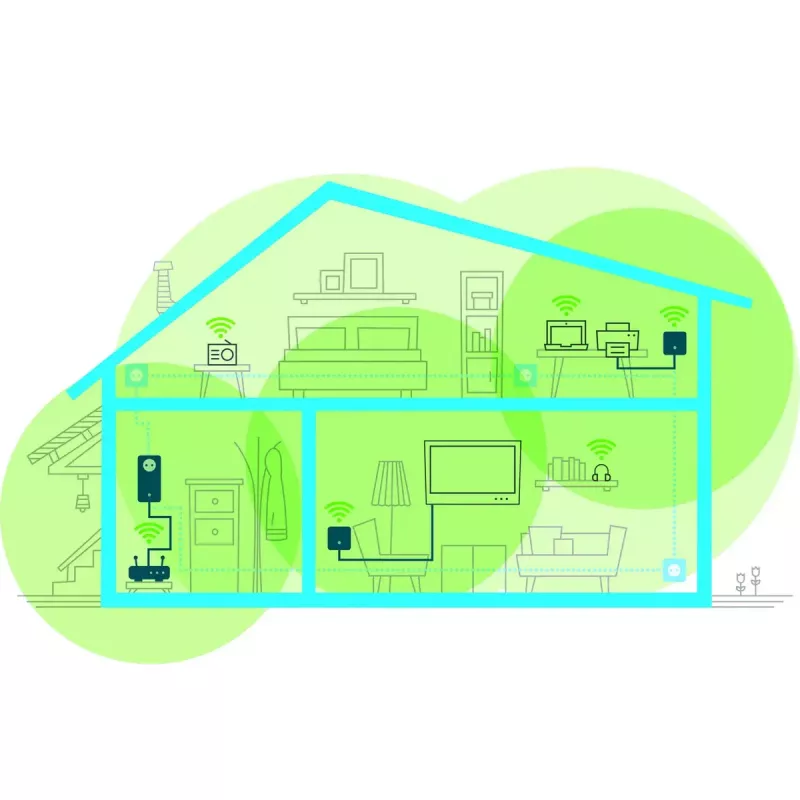

Plug one Magic 1 WiFi mini adapter into a power outlet near your router and connect it to the router with an Ethernet cable. Place the second adapter in the room where you need network access and allow the devices to pair via the electrical wiring; LED indicators will confirm PLC connection. Use the Ethernet LAN port for wired devices or connect wirelessly using the adapter's Wi‑Fi network. Configure network settings or security options through the Devolo interface or compatible management tools on your computer or mobile device.

Recommendations

For optimal performance, connect the adapters to mains outlets that are not switched by wall switches and avoid using multi‑socket extenders or surge protectors between the adapter and the wall. Place the adapter away from large appliances that may create electrical noise and, where possible, use the Ethernet port for bandwidth‑sensitive devices such as gaming consoles or smart TVs.

Punti salienti
  • Extending internet access to rooms without direct router coverage
  • Streaming video and media in living rooms or bedrooms
  • Connecting smart TVs, consoles or set‑top boxes via Ethernet
  • Providing Wi‑Fi for home offices and remote workstations
  • Maximum data transfer rate: 1200 Mbit/s
  • Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Interfaces: integrated Wi‑Fi, Ethernet LAN port
  • Built‑in power socket: Yes
  • Antenna: internal
  • Typical power consumption: 4.4 W; standby: 1 W
  • Dimensions (W×H×D): 68 × 68 × 41 mm
  • Color: White

Specifiche

Specifiche
Algoritmi di sicurezza
WPS-PBC, WPS-PIN, WPS, WPA2, WPA, 128-bit AES
Altezza
41 mm
Altezza confezione
92 mm
Cavi inclusi
Cavo LAN (RJ-45)
Certificazione
CE
Codice Sistema Armonizzato (HS)
85171800
Colore del prodotto
Bianco
Compatibilità Mac
Sì
Consumo energetico (standby)
1 W
Consumo energetico (tipico)
4.4 W
Distanza operativa massima
400 m
Ethernet LAN
Sì
Frequenza di ingresso CA
50
Guida di installazione rapida
Sì
Indicatori LED
PLC
Larghezza
68 mm
Larghezza confezione
190 mm
Manuale
Sì
MIMO
Sì
Modulazione
QPSK, OFDM, DSSS, BPSK, 4096-QAM, 1024-QAM, 256-QAM, 64-QAM
Numero di antenne
2
Peso confezione
335 g
Plug and Play
Sì
Porte Ethernet LAN (RJ-45)
1
Presa di corrente integrata
Sì
Prodotti compatibili
devolo Magic
Profondità
68 mm
Profondità confezione
118 mm
Quantità per confezione
1 pc(s)
Sistemi operativi Linux supportati
Ubuntu 15.10, Ubuntu 15.04, Ubuntu 14.10
Sistemi operativi Mac supportati
Mac OS X 10.13 High Sierra, Mac OS X 10.12 Sierra, Mac OS X 10.11 El Capitan
Sistemi operativi mobili supportati
iOS, Android
Sistemi operativi Windows supportati
Windows 8 Pro, Windows 8, Windows 7 x64, Windows 7, Windows 10 x64, Windows 10 Pro x64, Windows 10, Windows 8 Pro x64
Spina di alimentazione
Tipo C
Standard di rete
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Standard PowerLine
HomePlug AC
Standard Wi-Fi
Wi-Fi 4 (802.11n), 802.11g, 802.11b
Standard Wi-Fi massimo supportato
Wi-Fi 4 (802.11n)
Supporto Quality of Service (QoS)
Sì
Tecnologia di cablaggio Ethernet in rame
100BASE-TX, 1000BASE-T, 10BASE-T
Temperatura di esercizio (T-T)
0 - 40
Temperatura di stoccaggio (T-T)
-25 - 70
Tensione di ingresso CA
196 - 250
Tipo di antenna
Interno
Tipo di imballaggio
Scatola
Tipo di interfaccia LAN Ethernet
Fast Ethernet
Umidità relativa di esercizio (H-H)
10 - 90
Velocità di trasferimento dati WLAN supportate
1200, 300
Velocità di trasferimento Ethernet LAN
1200, 100, 10
Velocità massima di trasferimento dati
1200 Mbit/s
Wi-Fi
Sì
