ADELID Contenitore elettrico ABS IP65 350x500x190mm grigio chiaro

Engineered for demanding environments, this ADELID enclosure delivers IP65-rated protection in a robust ABS housing, ensuring your electrical components stay safe from dust and water jets.

Overview

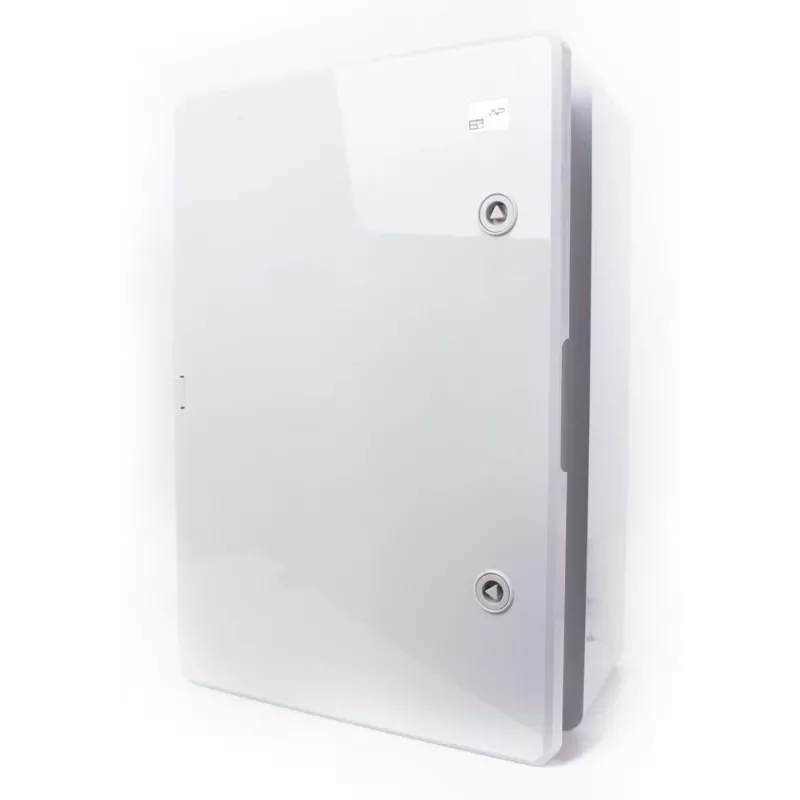

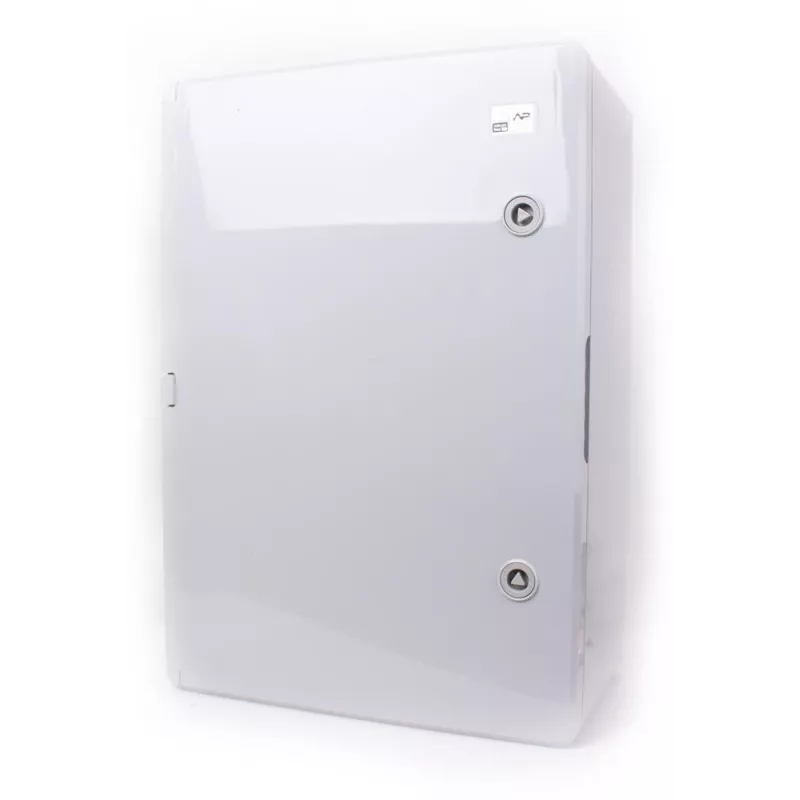

The ADELID OP350500190 is a surface-mount electrical enclosure crafted from high-quality ABS plastic. With external dimensions of 500 x 350 x 190 mm, it offers ample space for wiring, terminals, and control equipment. The light grey (RAL 7035) finish provides a professional appearance suitable for both indoor and outdoor installations.

What stands out

• IP65 ingress protection: completely dust-tight and protected against low-pressure water jets from any direction.
• Impact resistance rated IK08, ensuring durability against mechanical impacts.
• UV-resistant ABS material prevents degradation from sunlight, ideal for outdoor use.
• Flammability rating UL94-V0 for enhanced fire safety.

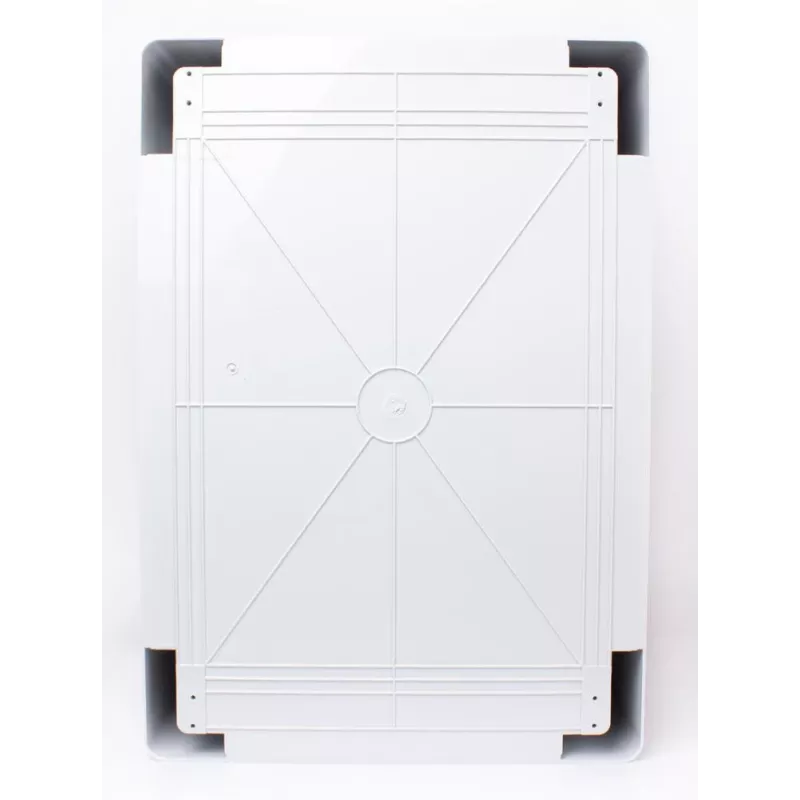

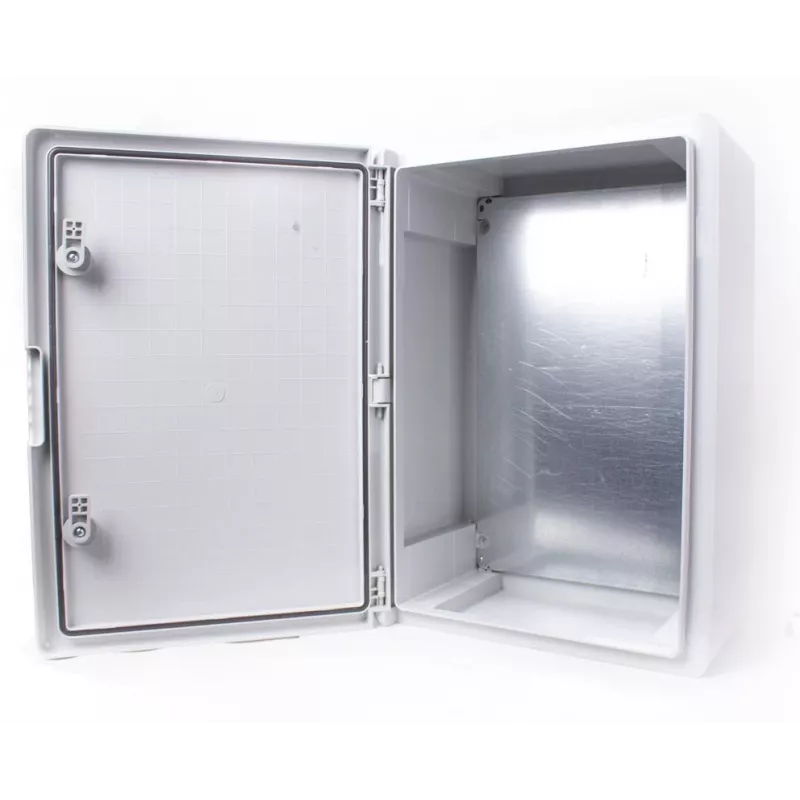

• Includes a galvanized steel mounting plate for convenient component installation.
• Two quarter-turn plastic locks provide secure closure and quick access.

Technical details

• Material: ABS (Acrylonitrile Butadiene Styrene)
• External dimensions (H x W x D): 500 x 350 x 190 mm
• Mounting type: Surface mount
• Door/lid type: Solid, opaque
• Locking mechanism: Quarter-turn plastic locks (2 locks)
• Colour: Light grey (RAL 7035)
• Impact resistance: IK08
• UV resistance: Yes
• Operating temperature range: -25°C to +60°C
• Flammability rating: UL94-V0
• Glow wire test temperature: 650°C
• Mounting plate: Included (galvanized steel)
• Cable entry: Smooth walls (no pre-drilled knockouts)
• Application: Indoor and outdoor
• Standards: CE, RoHS compliant
• Insulation class: Class II
• Rated voltage: Up to 1000V AC / 1500V DC

Our verdict

A rugged and reliable enclosure that combines excellent protection with ease of installation, making it a top choice for professional electrical projects.
