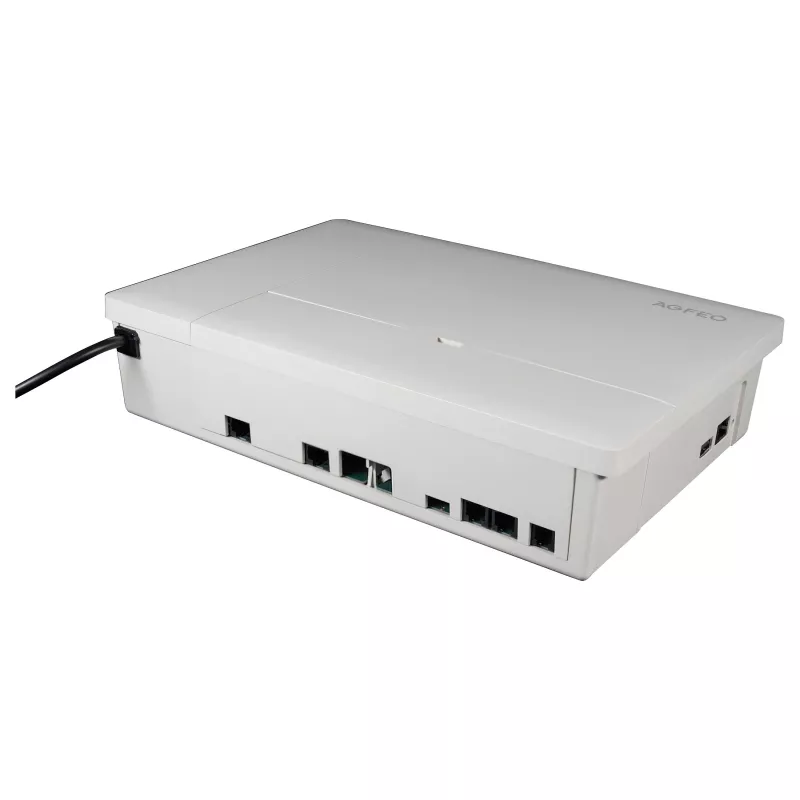

AGFEO ES 546 Sistema di comunicazione centralino ibrido IP

The AGFEO ES 546 is a hybrid IP PBX communication system supporting up to 40 internal subscribers, with 4 analog ports, 4 IP subscribers, and 2 configurable ISDN S0 ports, making it ideal for small to medium businesses seeking flexible telephony.

Overview

This Full-IP-TK-Anlage (full IP telecommunications system) combines traditional and VoIP telephony in a wall-mountable metal housing. It features 2 Gigabit Ethernet ports, a USB 2.0 port, and an SD card slot for voicemail and music on hold. The system includes 4 integrated voicemail channels and 100 mailboxes, with support for SIP, RTP, and T.38 fax over IP.

What stands out

• Hybrid architecture: supports analog, ISDN, and IP endpoints simultaneously.
• Scalable: base 4 VoIP channels expandable to 16 via licenses.
• Integrated voicemail: 4 channels and 100 mailboxes out of the box.
• Flexible mounting: wall-mountable or desktop placement.
• Energy efficient: maximum power consumption of 25 W.

Technical details

• System type: Hybrid IP PBX / Communication System
• Max internal subscribers: 40 (with expansion modules)
• Base internal analog ports (a/b): 4
• Base internal IP subscribers: 4
• ISDN S0 ports (configurable): 2 (internal or external)
• Base VoIP channels: 4
• Max VoIP channels: 16 (with expansion)
• Ethernet ports: 2x Gigabit Ethernet (LAN/WAN)
• USB ports: 1x USB 2.0
• SD card slot: Yes (for voicemail, music on hold)
• Power consumption (max): 25 W
• Mounting type: Wall-mountable, Desktop
• Integrated voicemail channels: 4
• Integrated voicemail mailboxes: 100
• Supported protocols: SIP, RTP, T.38
• Fax over IP support: Yes (T.38)
• Housing material: Metal
• Expansion slots: 2 (for optional modules)
• Power supply type: Internal, 100-240 V AC
• CTI support: Yes (via optional software)

Our verdict

The AGFEO ES 546 delivers a robust hybrid telephony solution with extensive voicemail and expansion capabilities, all in a compact, wall-mountable form factor.
