Akuvox C313W-2/R20A-2 kit videocitofono IP a 2 fili con monitor touchscreen da 7 inch e postazione esterna RFID

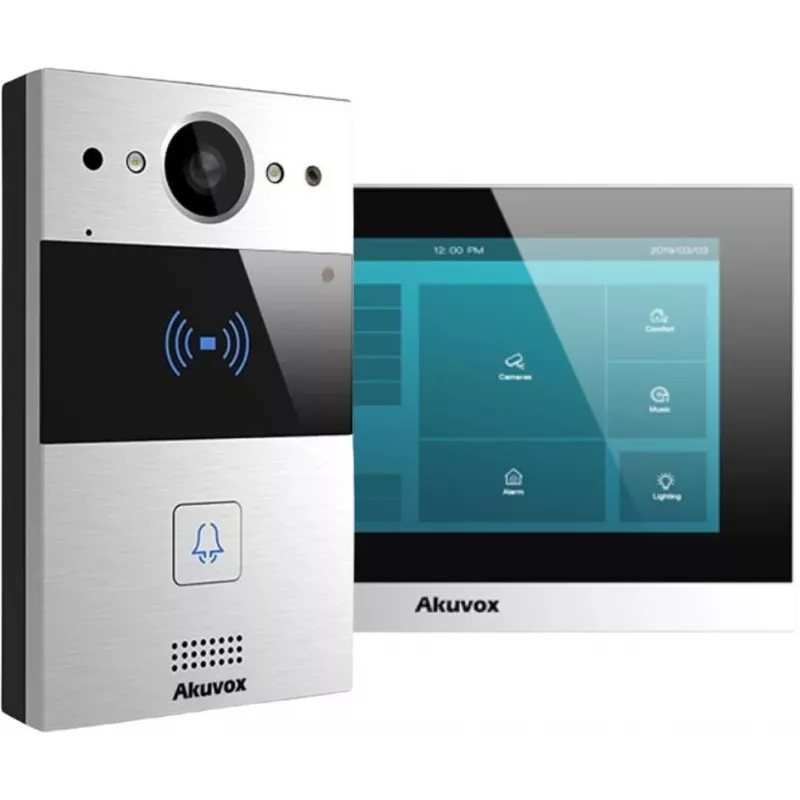

The Akuvox C313W-2/R20A-2 is a complete 2-wire IP video intercom system designed for residential and commercial access control. This kit includes the C313W-2 indoor monitor with a 7-inch capacitive touchscreen running Android 9.0, and the R20A-2 outdoor door station featuring a 2MP CMOS camera with WDR, IR night vision, and an integrated RFID/NFC reader. The system supports two-way audio with echo cancellation and noise reduction, SIP 2.0 for VoIP integration, and remote door release via multiple relay outputs. It is compatible with the Akuvox SmartPlus mobile app for remote monitoring and control.

Advantages

This intercom kit offers a seamless, high-definition video communication experience with robust access control features. The 2-wire IP technology simplifies installation, while the weatherproof (IP65) and vandal-resistant (IK06) outdoor station ensures durability in harsh environments. The Android-based monitor provides a user-friendly interface and Wi-Fi connectivity for flexible integration.

Suitable for

• Residential apartments and houses
• Small to medium offices
• Gated communities and access points
• Commercial buildings requiring secure entry

Key specifications

• System Type: 2-Wire IP Video Intercom
• Indoor Monitor: 7-inch capacitive touchscreen, 1024x600 resolution, Android 9.0
• Outdoor Station: 2MP CMOS camera, 120° horizontal/64° vertical FOV, IR night vision
• Access Control: RFID/NFC reader (13.56MHz & 125KHz)
• Audio: Two-way, echo cancellation, noise reduction
• Connectivity: 2-Wire IP, Wi-Fi (2.4GHz), RS485
• Video Codec: H.264
• Power: DC 12V (monitor), 2-wire power (door station via converter)
• Weatherproof: IP65, IK06 vandal resistant
• Operating Temperature: -40°C to +60°C (door station)

Recommendations

For optimal performance, ensure proper wiring and use the included power converter. The system can be integrated with existing SIP-based VoIP networks and supports ONVIF and RTSP for third-party compatibility. Regular firmware updates via the Akuvox SmartPlus app are recommended.
