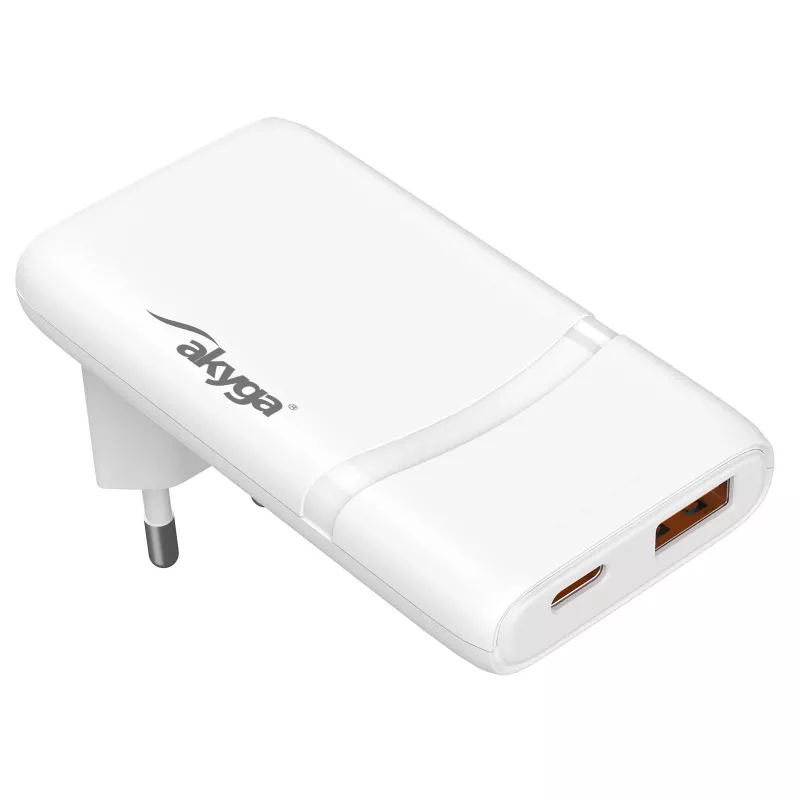

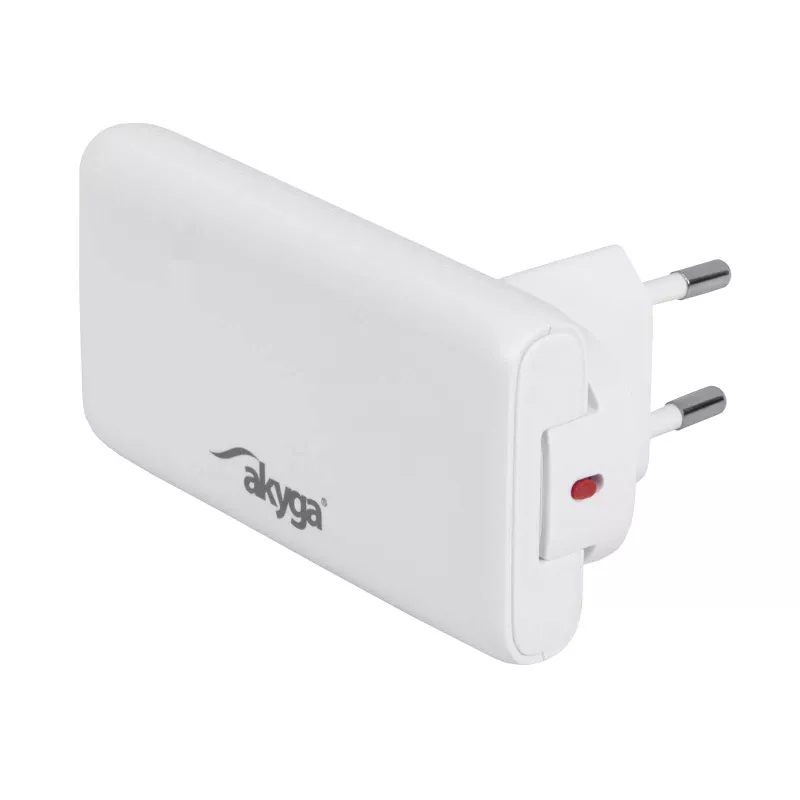

Akyga AK-CH-31 caricabatterie USB GaN piatto 65 W, USB-C PD + USB-A, bianco

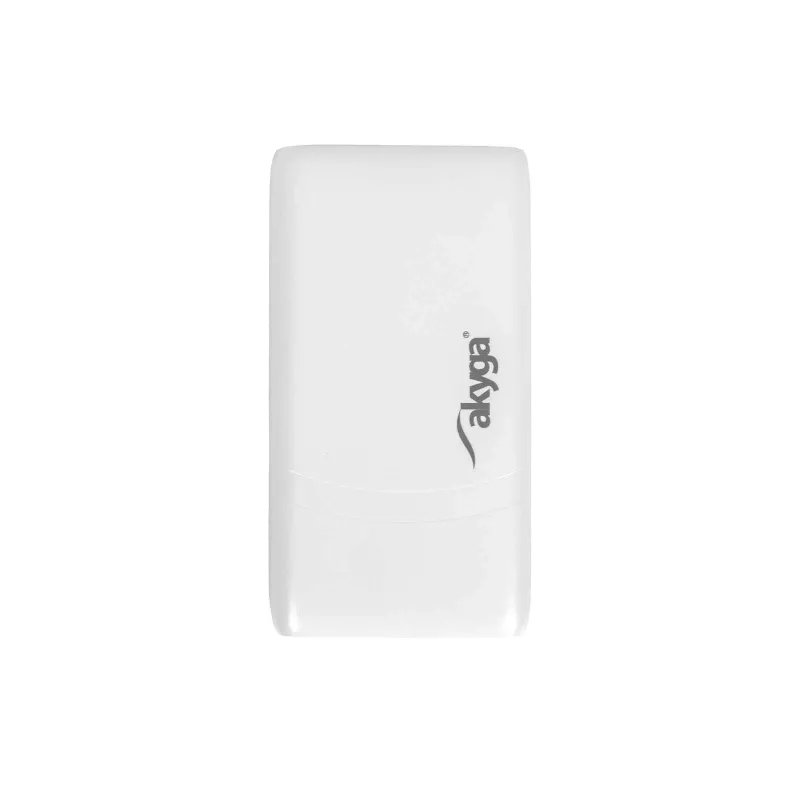

The Akyga AK-CH-31 is a slim GaN USB charger delivering up to 65 W via its USB-C PD port and up to 27 W via its USB-A port, allowing two devices to be charged simultaneously. Its ultra-slim design fits almost flush against the wall, making it suitable for mounting behind furniture or in tight spaces.

Key features

• GaN technology for reduced size and increased energy efficiency
• USB-C PD port supports Power Delivery 3.0/2.0, PPS, Quick Charge 4+/3.0/2.0, SCP, FCP, AFC, DCP, Apple 2.4A, Samsung 5V/2A
• USB-A port supports fast charging
• Protection features: OVP, OCP, OTP, SCP
• Universal brand compatibility

Specifications

• Brand: Akyga
• MPN: AK-CH-31
• Product colour: White
• Material: ABS
• AC input voltage: 100-240 V
• AC input frequency: 50/60 Hz
• Power consumption: < 0.25 A
• Output power: 65 W
• Output voltage: 5-20 V
• Output current: 1.35-3 A
• USB-C output: 5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 3.25 A (max. 65 W); PPS: 5-20 V / 3 A
• USB-A output: 5 V / 3 A, 9 V / 2.5 A, 12 V / 2.25 A, 15 V / 1.75 A, 20 V / 1.35 A (max. 27 W)

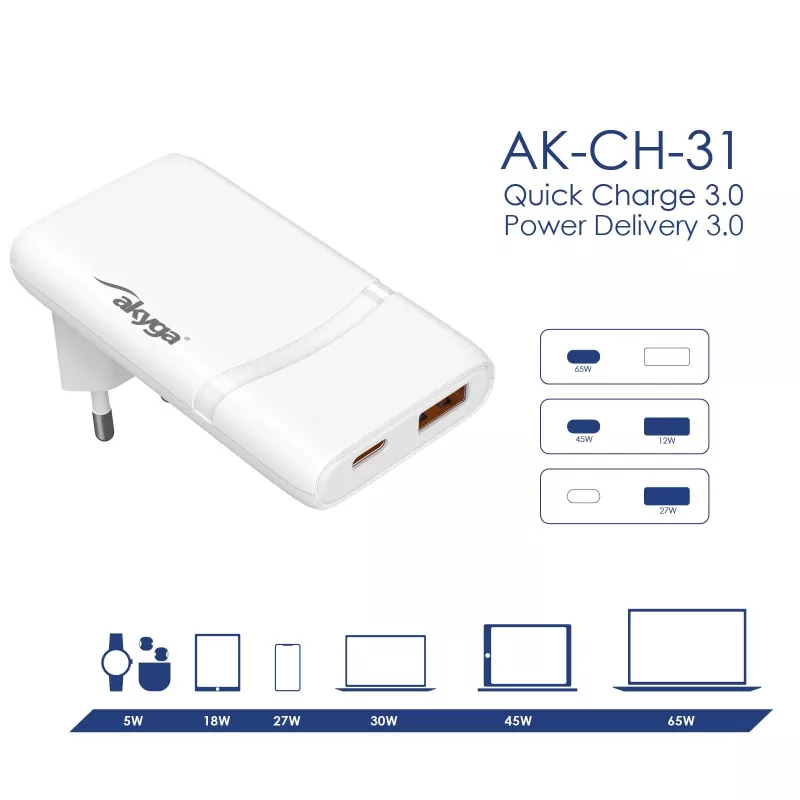

• Maximum power combinations: 65 W (USB-C) or 27 W (USB-A) or (45 W + 12 W)
• USB Power Delivery (USB PD): Yes
• LED indicators: No
• Display: None
• Mechanical switch: None
• Ground wire: None (II protection class)

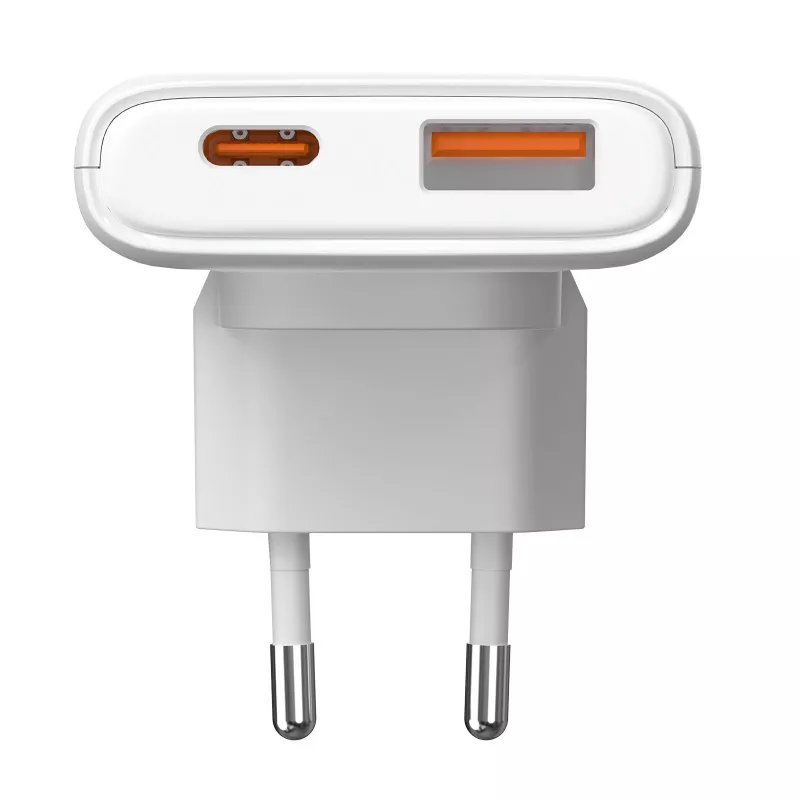

• Power supply connector: CEE 7/16 (Europlug)
• MTBF: 100000 h
• Operating temperature: -10 – 35 °C
• Product size (L x W x H): 86 x 58 x 46 mm
• Weight: 0.11 kg
