Akyga AK-EC-22 caricabatterie EV mobile, Type 2, spina CEE 5 poli, trifase, 32 A, 22 kW, LCD, 5 m

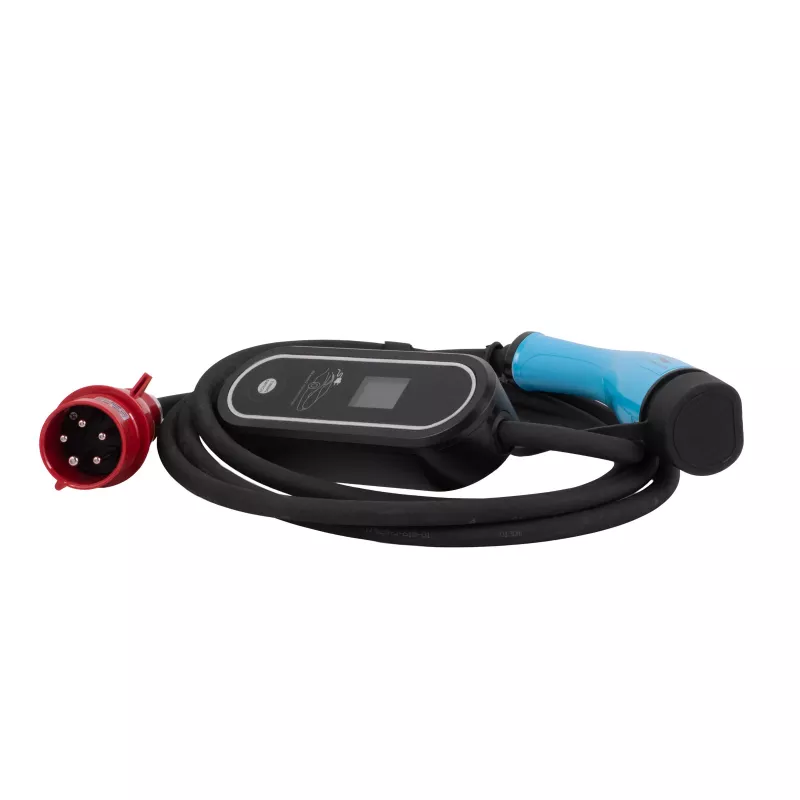

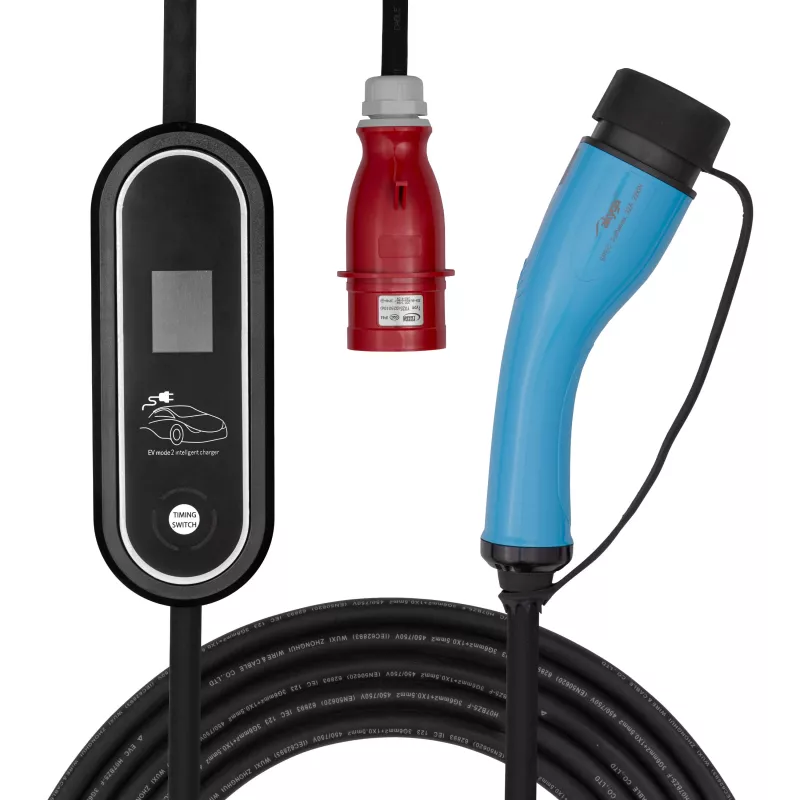

The Akyga AK-EC-22 is a three-phase portable EV charger with a 5-metre cable, Type 2 connector and CEE 5-pin plug. It delivers up to 22 kW and features a built-in LCD screen for monitoring charging parameters.

Key features

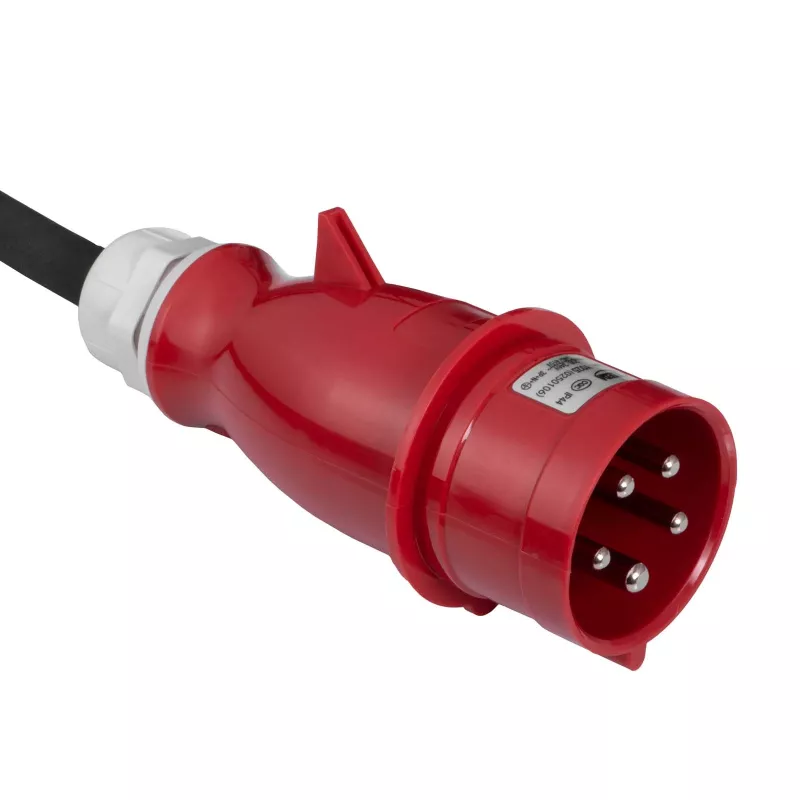

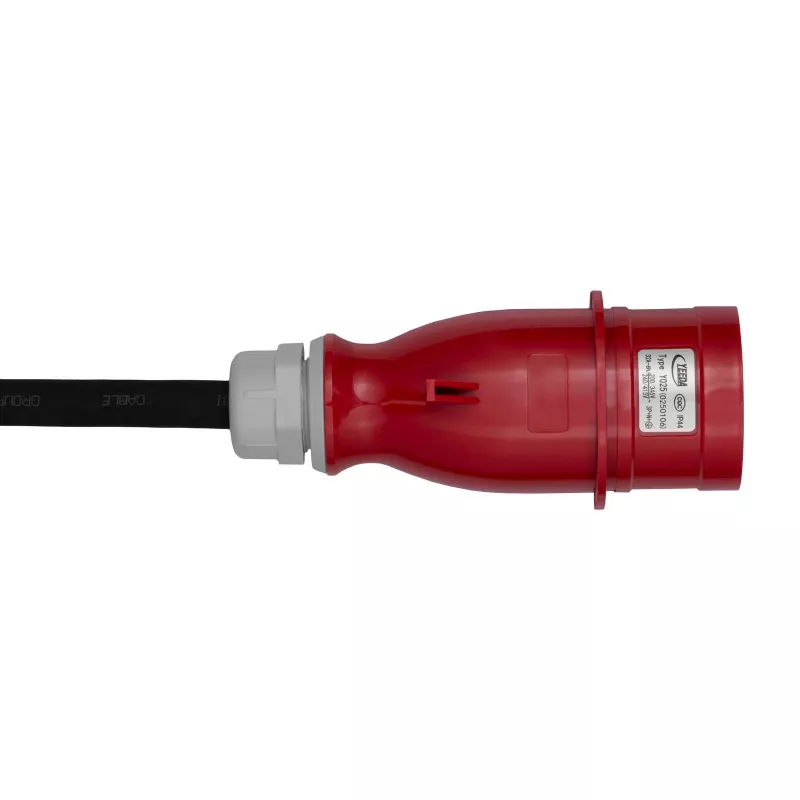

• Three-phase charging with CEE 5-pin plug

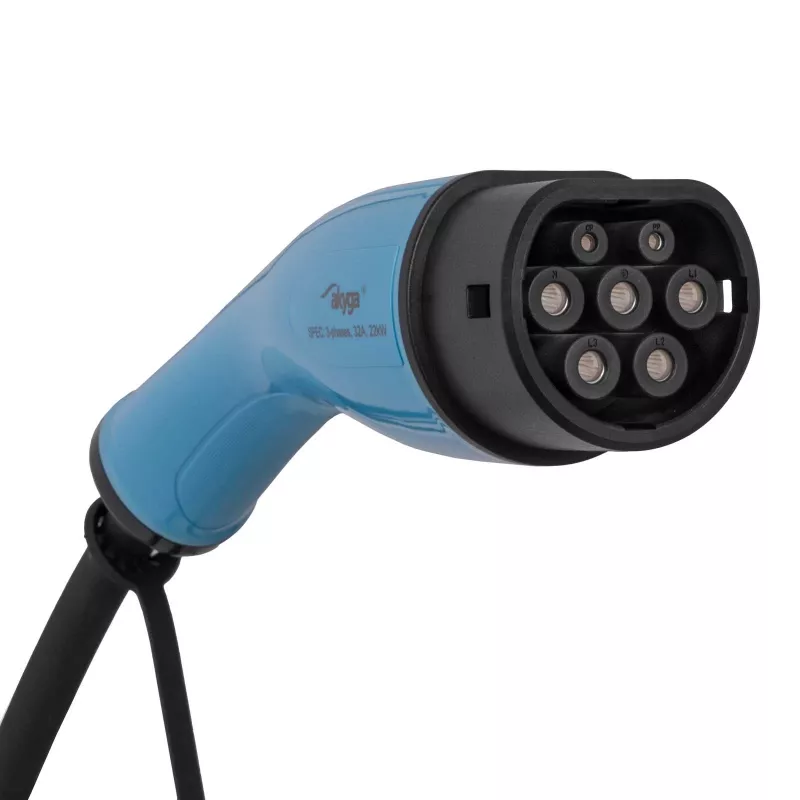

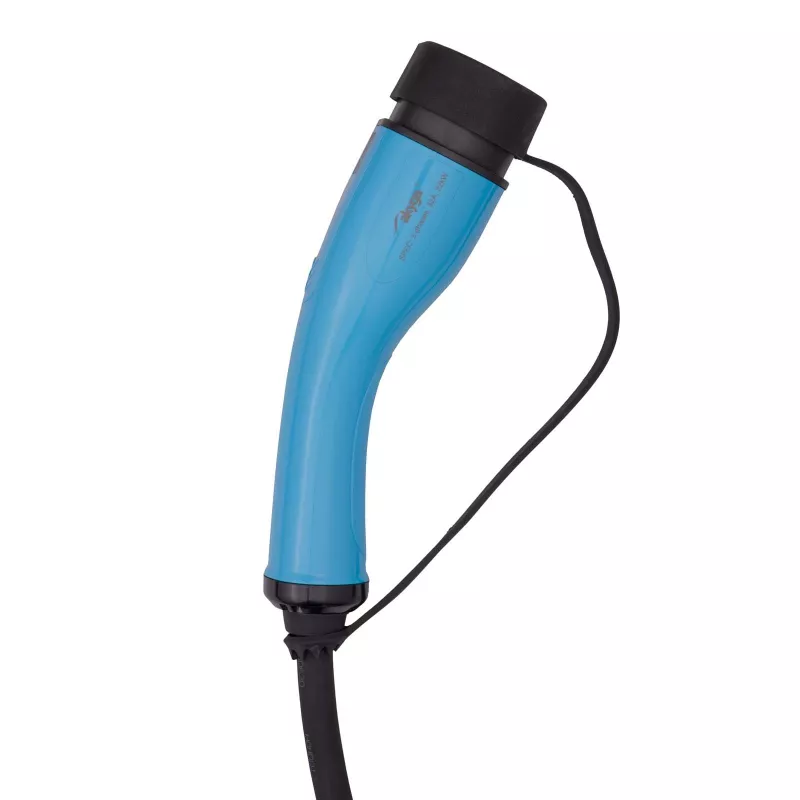

• Type 2 connector for electric vehicles with Type 2 inlet
• Adjustable current: 10 A, 16 A, 24 A, 32 A

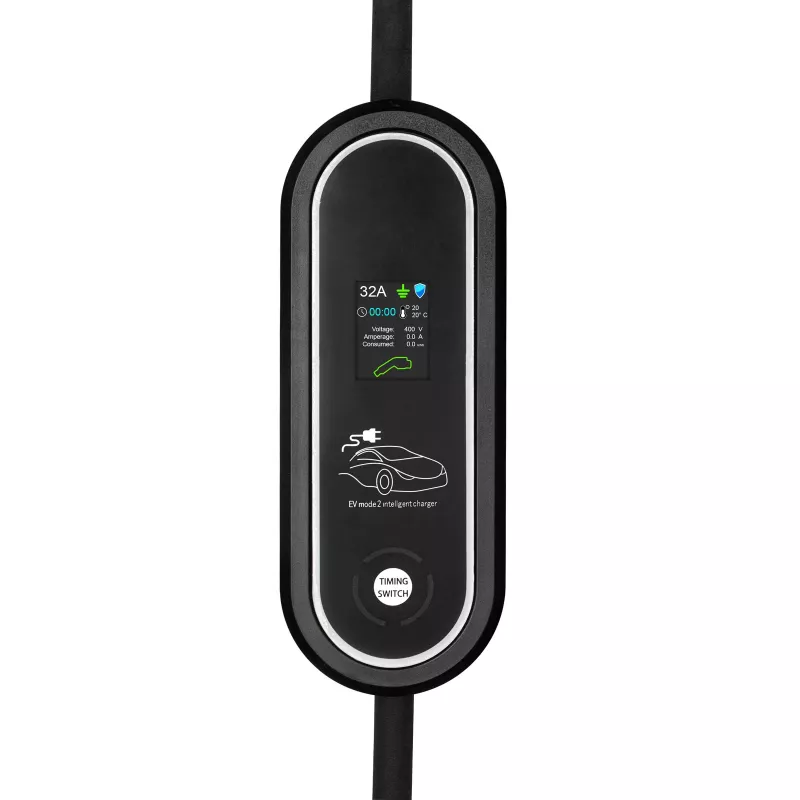

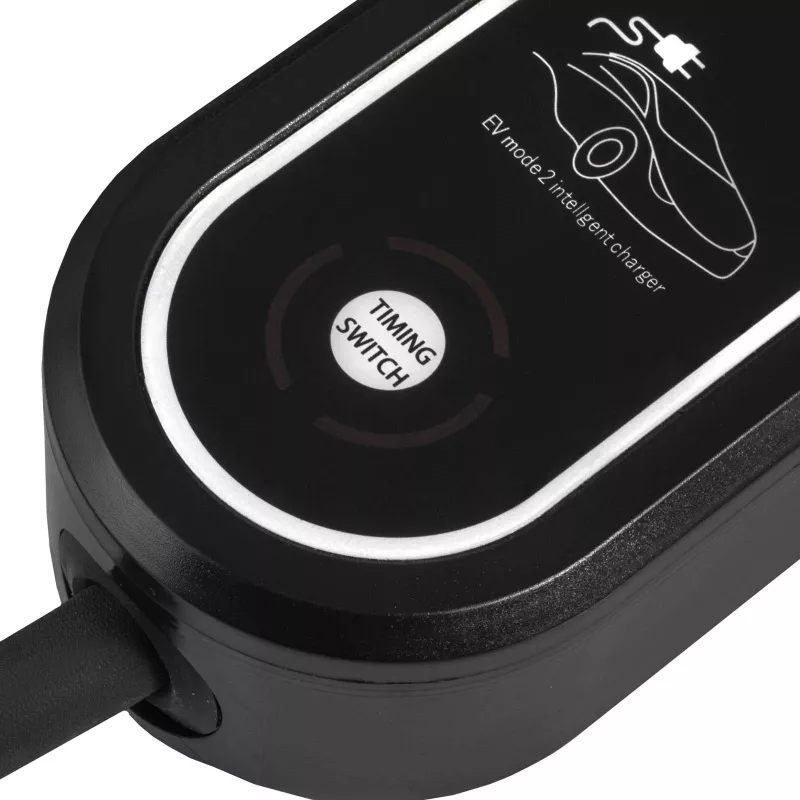

• Built-in LCD display
• Protection features: over voltage, over current, over power, overheating, short circuit, Type B RCD
• IP54 rated
• Blue ABS housing

Specifications

• Brand: AKYGA
• MPN: AK-EC-22
• Product colour: Blue
• Housing material: ABS Plastic
• AC input voltage: 240 - 450 V
• AC input frequency: 50/60 Hz
• Output current: 32 A
• Maximum current: 32 A (adjustable 10 / 16 / 24 / 32 A)
• Output power: 22 kW
• Power cable length: 5 m
• International Protection (IP) code: IP54
• Display type: LCD
• Built-in display: Yes
• Suitable for: Electric Vehicles with Type 2 inlet
• Weight: 4.2 kg
