Alimentatore ATX Akyga Basic AK-B1-500 500 W, ventola 120 mm, PFC passivo, grigio

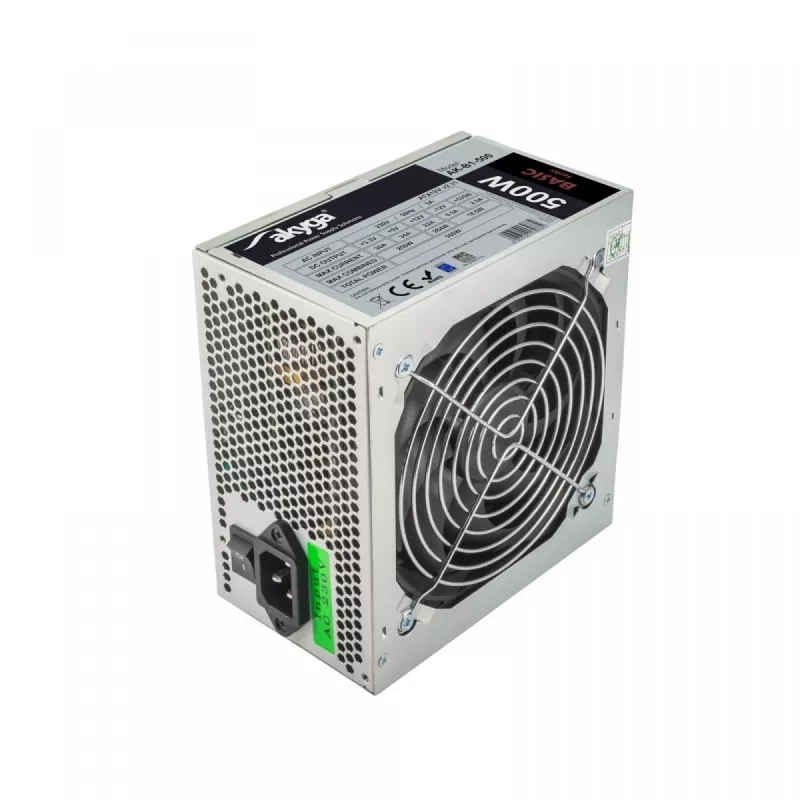

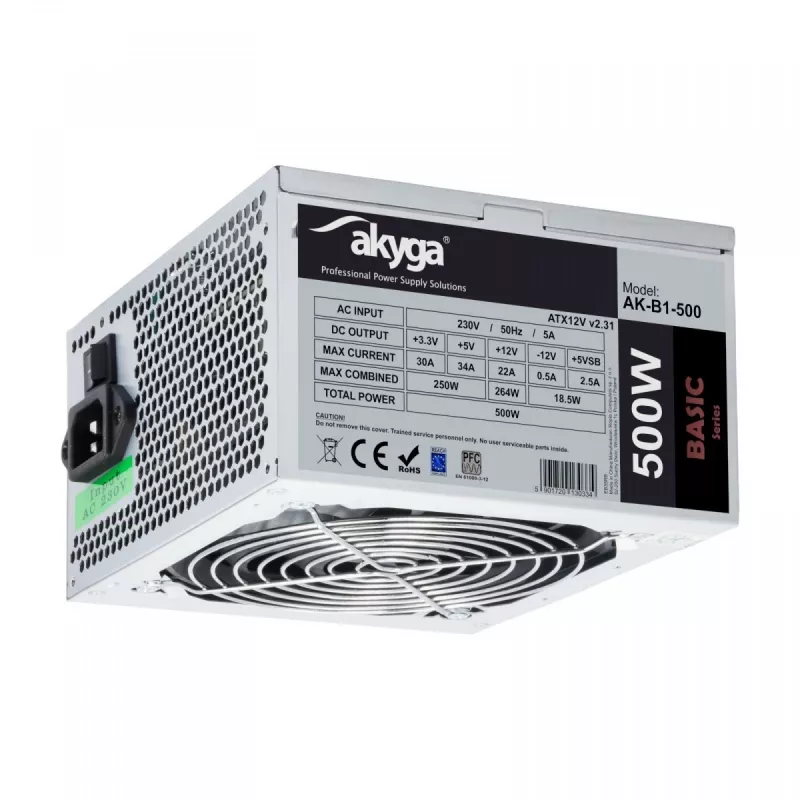

The Akyga Basic AK-B1-500 is an ATX power supply with a total power of 500 W, designed for desktop PCs. It features a 120 mm top-mounted fan and a manual on/off switch.

Key features

• 500 W total power
• 120 mm fan
• Passive PFC
• Non-modular cabling
• ATX form factor
• Manual on/off switch
• Protection features: short circuit, overheating, over voltage, over power, over current

Specifications

• Product colour: Grey
• Cooling type: Active
• Number of fans: 1
• Fan diameter: 120 mm
• Fan location: Top
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Total power: 500 W
• Peak power: 500 W
• AC input voltage: 230 V
• Input current: 5 A
• Efficiency: 70 %
• Mean time between failures (MTBF): 100000 h
• Operating temperature (T-T): 5 - 50 °C

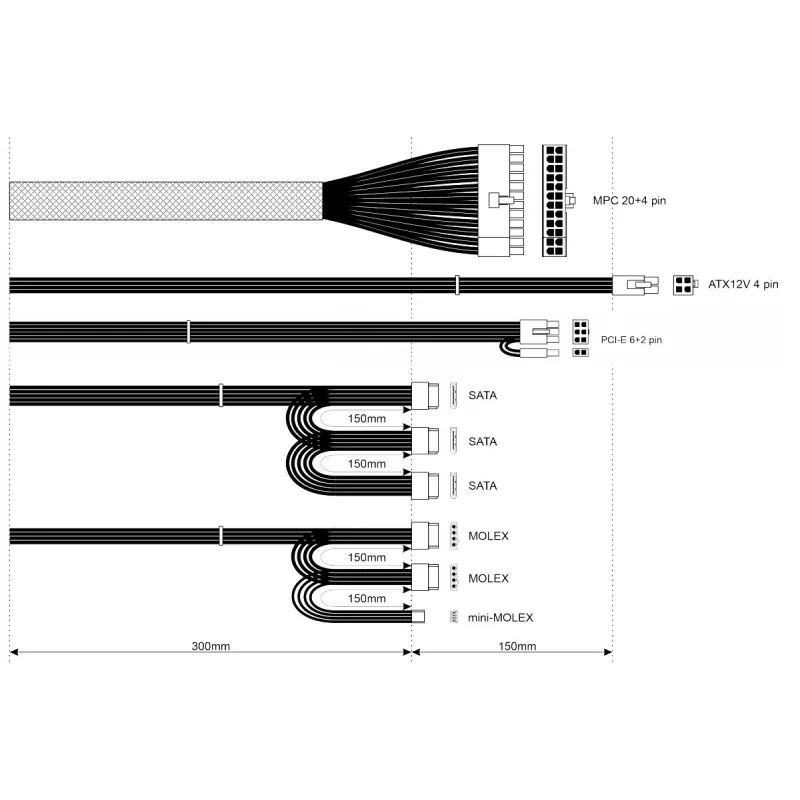

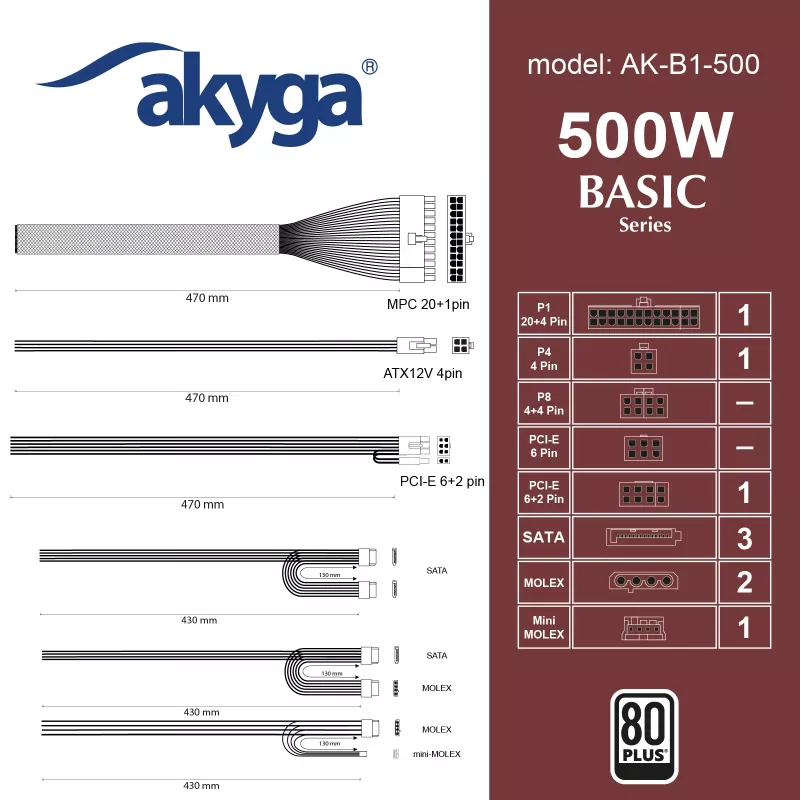

• Motherboard power connector: 20+4 pin ATX
• Number of SATA power connectors: 3
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power connectors (6+2 pin): 1
• CPU P4 connector (4-pin): 1
• CPU power cable length: 450 mm
• SATA power cable length: 300 mm
• Peripheral (Molex) power cable length: 300 mm
• Cabling type: Non-Modular

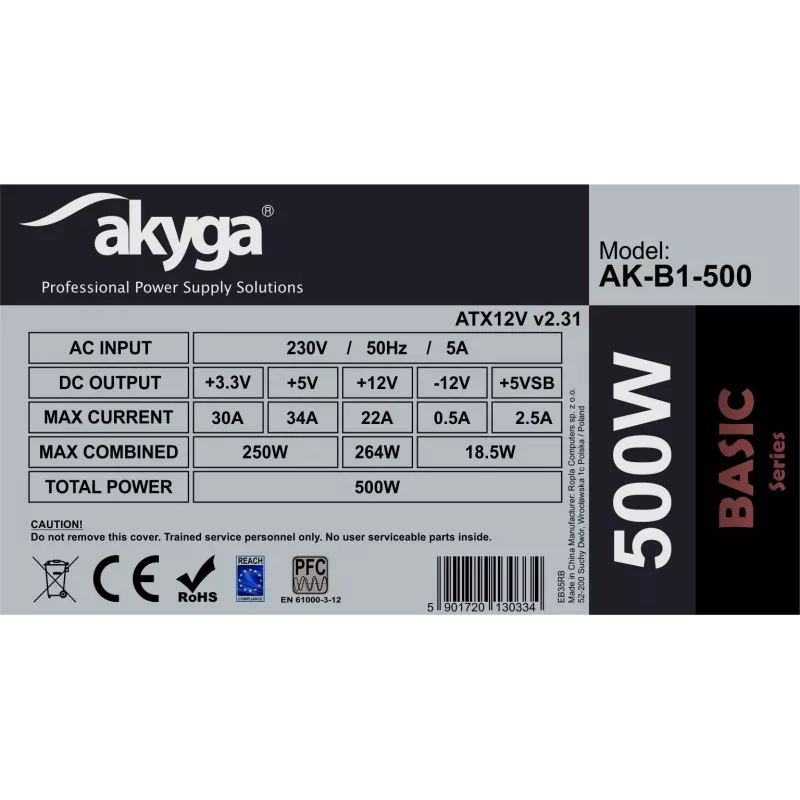

• Combined power (+3.3V): 250 W
• Combined power (+5V): 250 W
• Combined power (+12V): 264 W
• Combined power (-12V): 18.5 W
• Combined power (+5Vsb): 18.5 W
• Max output current (+3.3V): 30 A
• Max output current (+5V): 34 A
• Max output current (+12V): 22 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Width: 150 mm
• Depth: 140 mm
• Height: 85 mm
• Weight: 1.03 kg
• Certification: CE
• Compliance certificates: RoHS
• Country of origin: China
• Purpose: PC
• Manual: Yes
• Warranty card: Yes
